Need pin & spring

A quick learner from Peabody Ma says:
Hi!
Wasn't sure, I just couldn't find this size on your site so wanted to ask for help! This is for a mobile home bifold door system. Any help would be greatly appreciated!
Thank you,
Liz
Thumbnail of the uploaded file named E3024B52-2C08-48B6-9D8D-E58BB66C81D7.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I don't recognize this bifold pin at first glance but I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available. Thank you!


Profile picture of Paul
Paul from SWISCO responded:

We carry a plain 1/4" pin for bi-fold doors, which would be our 21-026B, which is 6" long. The length shouldn't be critical but you can cut it down with a hacksaw if needed. If you can't reuse your old cone spring, our 21-252  should work for you. You will also need locking push nuts like our 21-155. I suggest ordering a few extra since they are easy to lose. Take a look and let us know if you have any other questions.

A quick learner from Peabody Ma says:
Thank you both so much for your feedback and help! I will order those pieces and see if I can MacGyver them together! Be well!
Liz
A quick learner from Peabody Ma says:

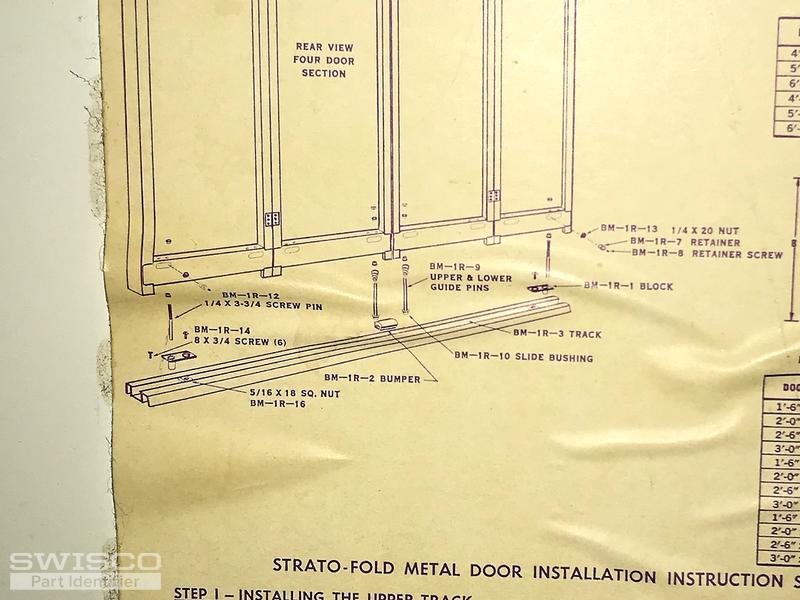

Thank you both so much!! It worked!! However now I need to order parts for the ENTIRE bottom and also the knobs. I didn't realize all the info was on the inside of the door until I went to put it together. (I didn't take it apart) so I'm hoping you could help me with this. Unfortunately since parts are missing I have nothing to measure but I'm hoping the old part numbers in the images will help. Sorry to be a burden.
Regards, Liz
Thumbnail of the uploaded file named F15B8002-6213-4069-9D30-5561DF85C35F.png
Thumbnail of the uploaded file named 9AD39470-918D-4436-8031-9A37AAF7DADC.jpeg
Thumbnail of the uploaded file named 832EB808-FD0C-4946-B7FB-0A55BE8A7717.png
Profile picture of Paul
Paul from SWISCO responded:

Hi Liz, we believe you can use our 21-212 pivot bracket for your door. The threaded pivot pin will be the 21-003 and the guide pin is 21-066. You might also want some of the 21-250 nylinders to help the guide pins slide through the door.

For the handle, take a look at the 22-003m which comes with a #8/32 X 1" screw.
