Need replacement.

Handy Person from Charlotte, NC
Sep 13, 2023 7:59 pm
This piece is broke. Need replacement.
IMG_1260 IMG_1259
2 user uploaded images
5 Replies
Casey
Casey from SWISCO
Sep 14, 2023 10:56 am
SWISCO
EXPERT

Hello,

It seems like you are referring to the operator that opens and closes the window. If so, we would need to see your operator fully removed from the window to get a clear view of the arms that move the sash since the base is a common style used by many variations of casement operators. Thank you!

Handy Person from Charlotte, NC
Sep 20, 2023 12:10 pm

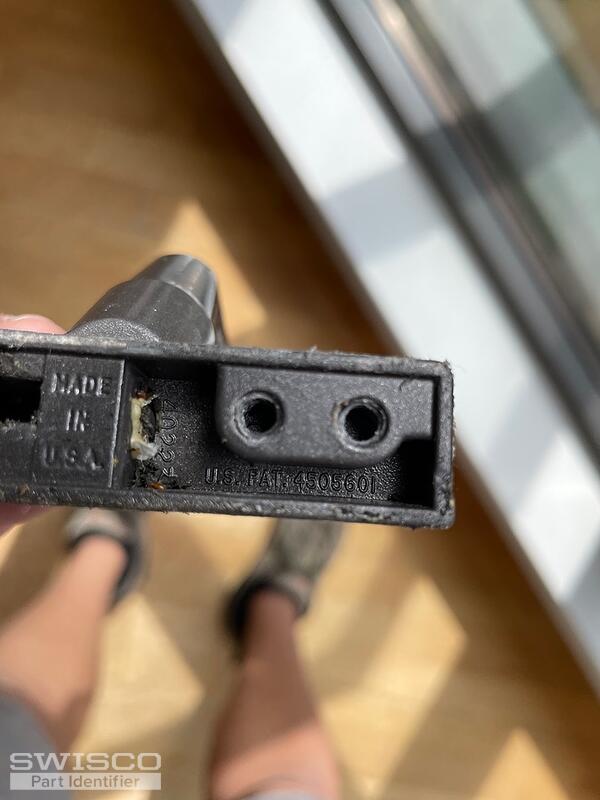

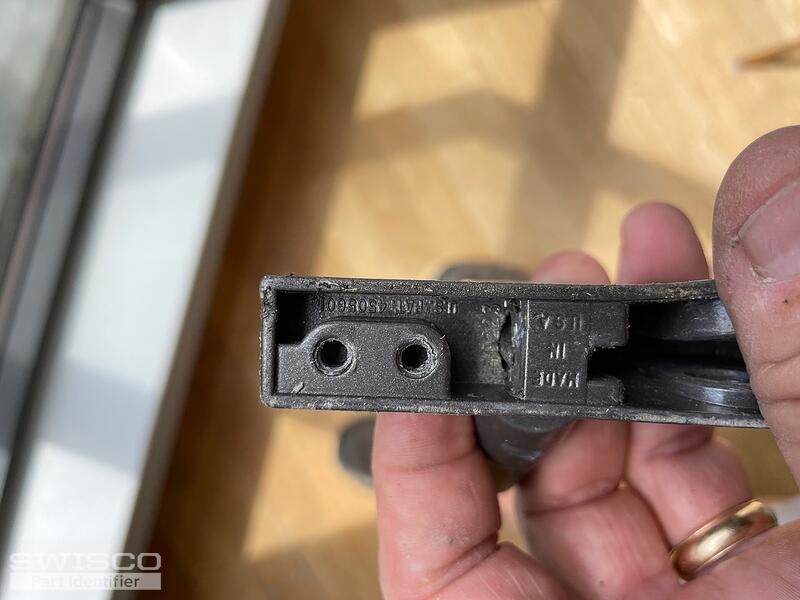

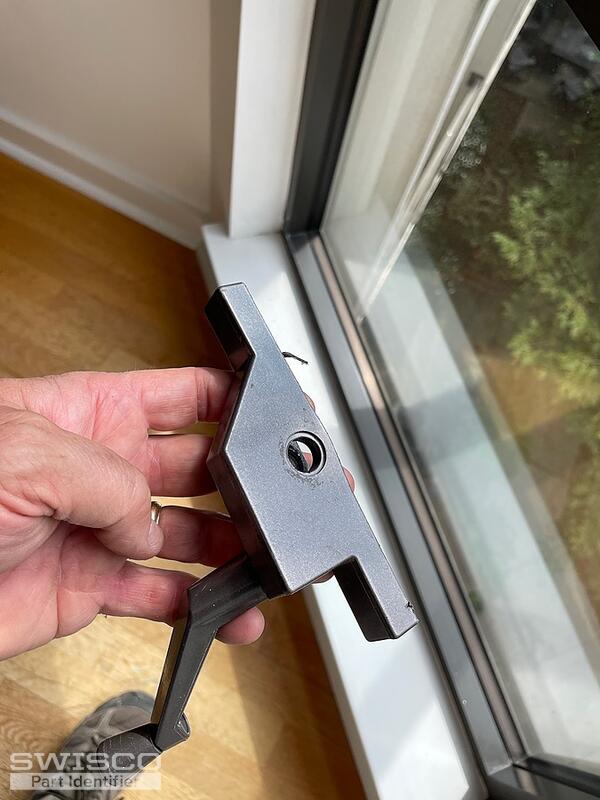

40223 looks like part #.
image image image image
4 user uploaded images
Casey
Casey from SWISCO
Sep 20, 2023 1:04 pm
SWISCO
EXPERT

Unforutnately, your new photos do not give us any new information since the base is the only part shown. We'd still need to see the arms that connect the base to the window sash in order to narrow down your replacement options.

Handy Person from Charlotte, NC
Sep 21, 2023 12:47 pm

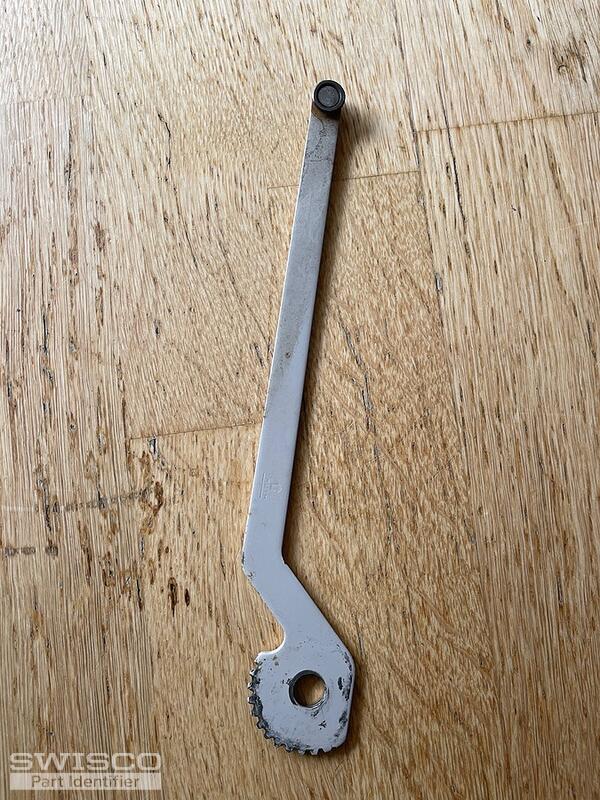

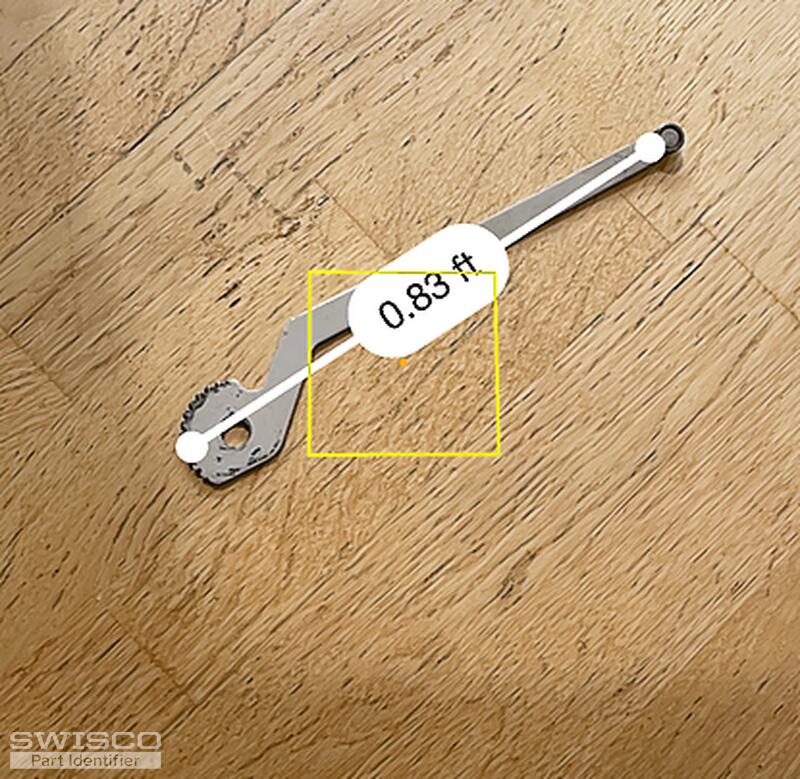

IMG_1509 IMG_1508
2 user uploaded images
Casey
Casey from SWISCO
Sep 21, 2023 1:55 pm
SWISCO
EXPERT

Thanks for getting back to us. I would recommend starting by looking at our 39-022. This has an 11" long arm and rear-mounted screw holes.

Dimensions for 39-022
Dimensions for 39-022

With that being said, it seems like your operator arm may be closer to 9-1/2". If so, a better choice would be our 39-139. The only issue is that this has face-mounted screws rather than rear-mounted like your original assembly. There is a workaround for this though. You would just need to use our 33-205 threaded insert by pressing it in with a vise. That will allow you to mount it the same way. Take a look and see if one of these replacement options could work for your repair.

Dimensions for 39-139
Dimensions for 39-139
