Need the attached parts.

Quick Learner from Frederick Maryland

May 13, 2023 1:58 pm

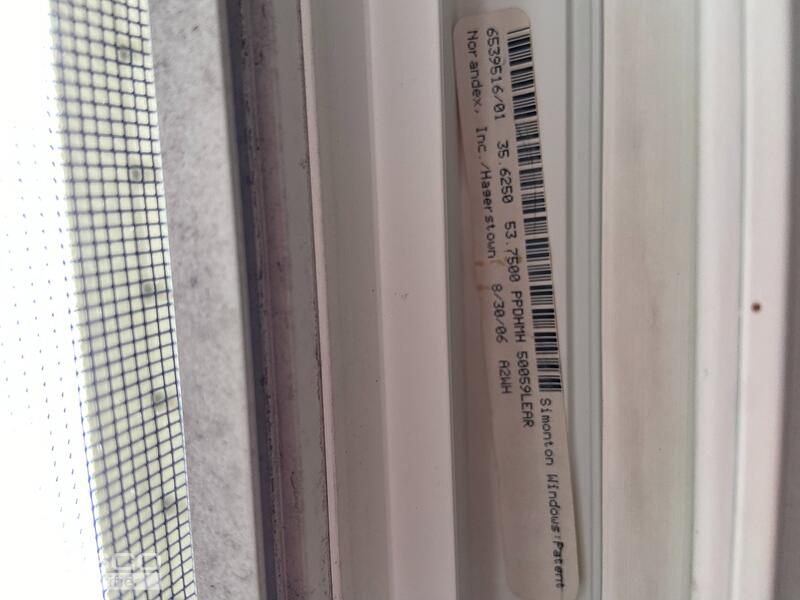

I need both right and left coil balances for a set of 4 identical windows. Window tag included. I also need a single tilt latch. Any help would be greatly appreciated. I am quite capable of replacing just need the correct parts.

4 user uploaded images

6 Replies

Emily from SWISCO

May 16, 2023 10:44 am

Hello there!

Thank you for reaching out to us. Start by taking a look at the 26-243 and 26-244 tilt latches. Review the specifications and see how they compare with an undamaged latch.

In order to identify the coil balance, I will need to see a photo of the pivot shoe first.

Quick Learner from Frederick Maryland

May 26, 2023 9:11 am

Hey Emily,

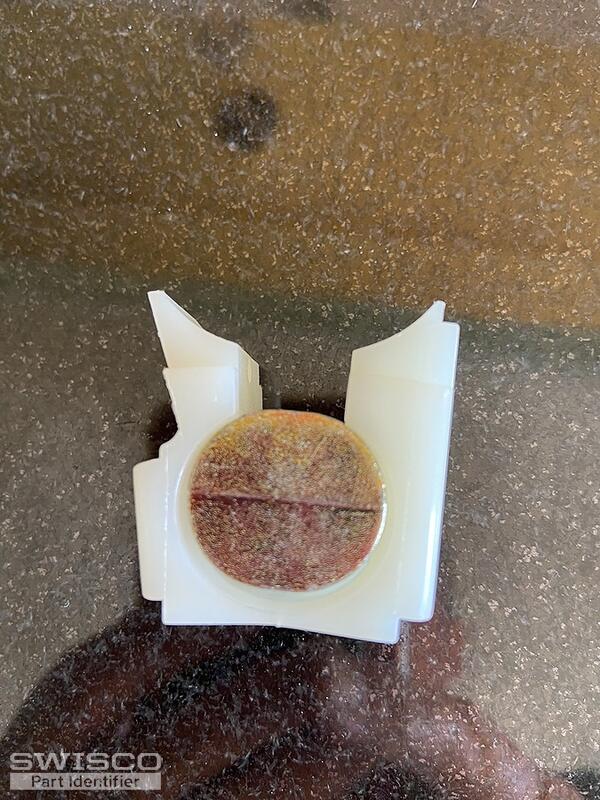

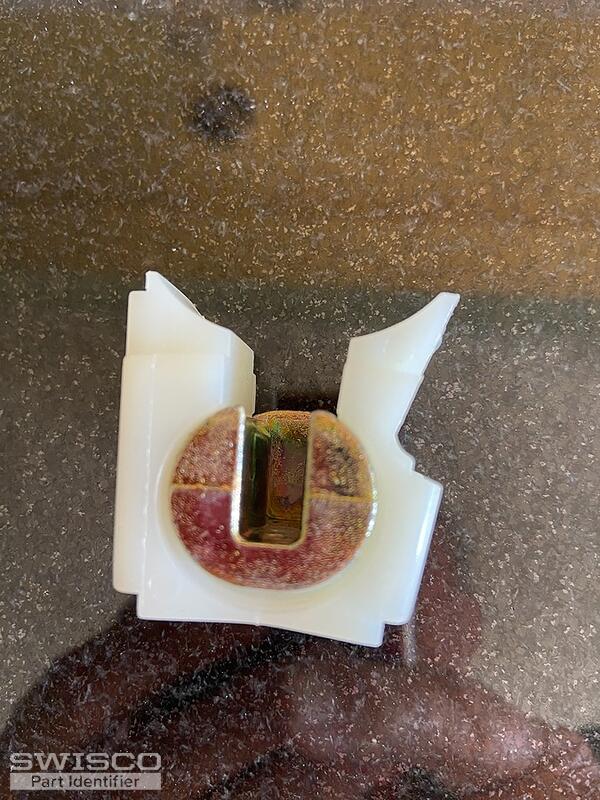

Heres photos of our Pivot shoes. Hope this helps and thanks for all your help.

2 user uploaded images

Emily from SWISCO

May 26, 2023 9:48 am

Thank you kindly for getting back to me! This is a huge help. Based on what I see here and the fact that this is a Simonton brand window, my recommendation is the 15-259 pivot shoe. This part uses the Series 159 coil springs and the video below will walk you through the process.

Let me know if you have any questions!

Quick Learner from Frederick Maryland

May 31, 2023 10:58 am

Emily,
I guess I need the 26-083 Pivot bar and 15-256 for each side as well?

Emily from SWISCO

May 31, 2023 4:15 pm

Yes, the 26-083 is required for this conversion. However, the coil support will depend on how many springs you will use per side. If you're using (2) per side then the 15-256 would be what you want.
