Need the following replacement parts

A home owner from 01056 (Ludlow, MA) says:

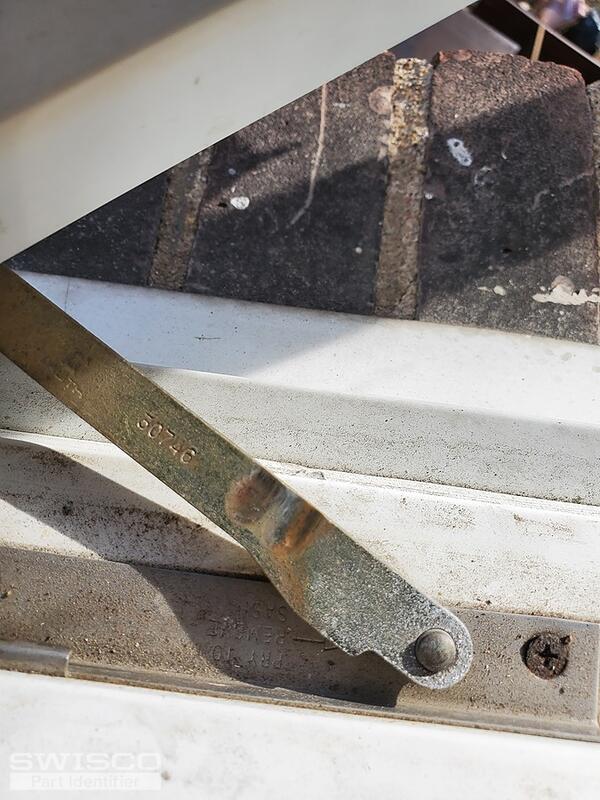

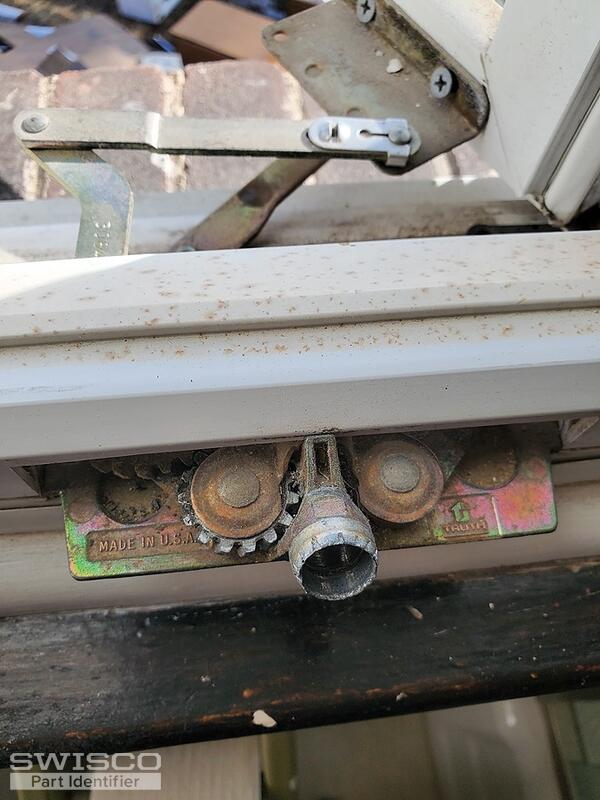

In the picture I found two number the left window has 30746 see pictures the right side has 30841L.

I purchased your replacement the numbers 39-035 and 39-036 when i went to install the left one the bracket and stud was not there.

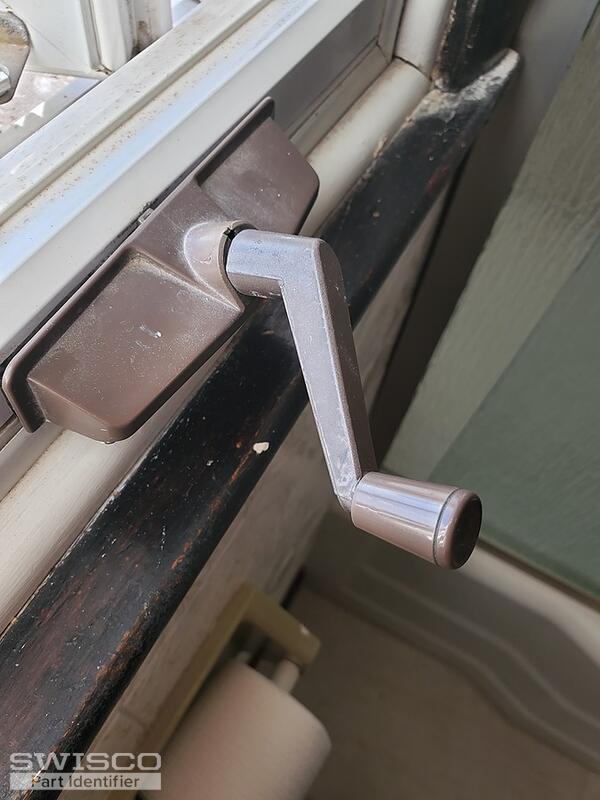

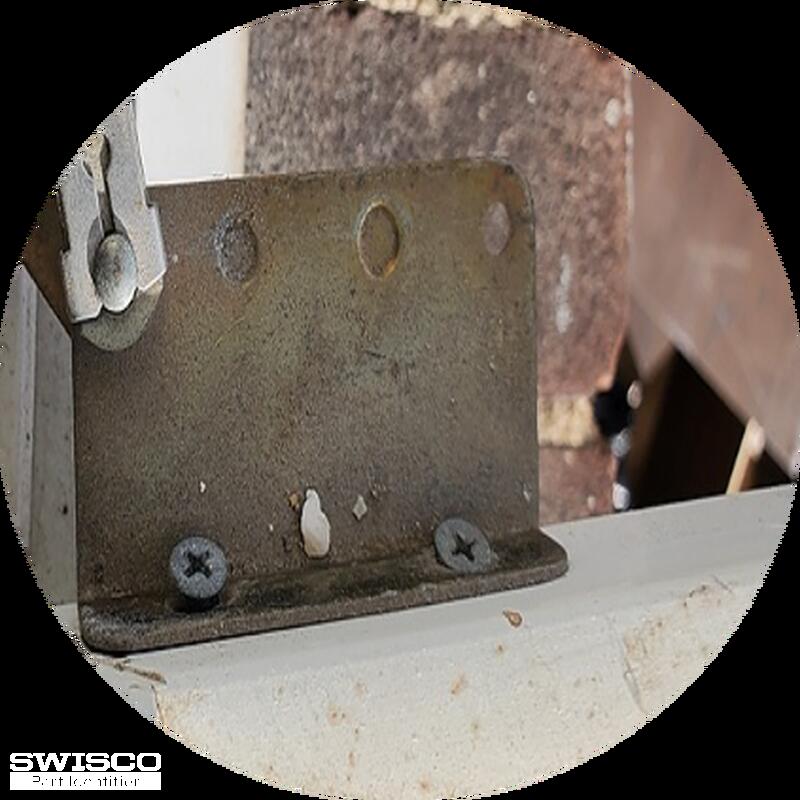

So I need the bracket and stud showing in the picture, the plastic cover and the handle to crank the windows out for both the left and right window.

Thank you

Laura

Thumbnail of the uploaded file named 20220212_145012.jpg.png
Thumbnail of the uploaded file named 16446961602966662117467167631886.jpg
Thumbnail of the uploaded file named 20220212_150603.jpg
Thumbnail of the uploaded file named 20220212_150541.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

The operators that you purchased use the 39-107 cover and 39-205 handle.

As for the bracket, we do not carry the same type shown in your photos, which may be an older style based on their condition. We generally recommend the 39-560 and 39-561 stud brackets, but ours may not project as far as your originals. Take a look and see how the dimensions compare.

If you need new hinges as well, see the 36-048 set. Thanks for posting!
