Odd size window screen corners

Handy Person from Ocean City, NJ

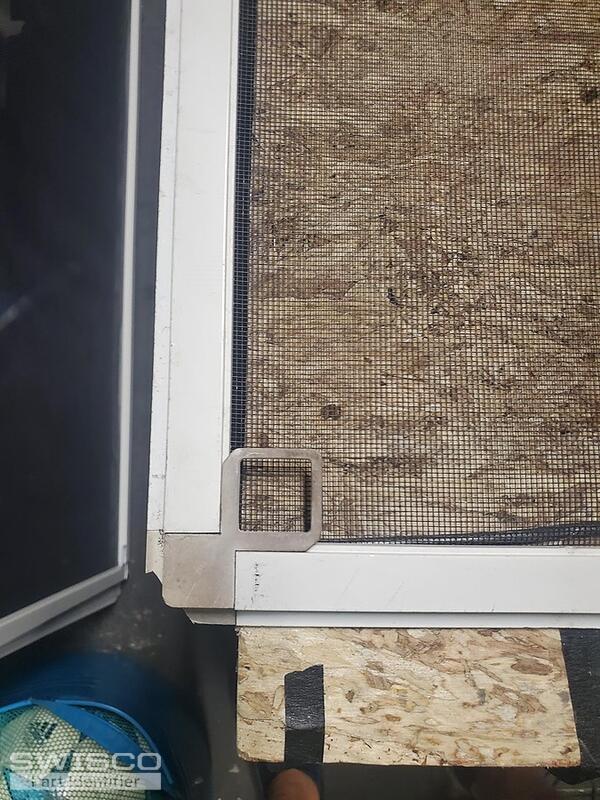

Looking for window screen frame corners for an odd size frame tubing.
the corners are square (not mitered) 3/4" between corner edge and frame start.

"Standard" 5/16" corners do not fit, they are too large to fit into the frame tubing.

Window owner has no idea the manufacturer of the window/screens, definitely not Andersen.

Hoping you know!!! :-)
5 user uploaded images
4 Replies
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Looking at your "extruded" metal frame, I don't believe the corners are still available. Most corners today are used in the lighter "roll" metal style.

That said, I picked out two corners that look like they might fit your frame. The 95-265 I believe will fit, but you will need to cut out the inside corner so as to not interfere with your screen spline installation.

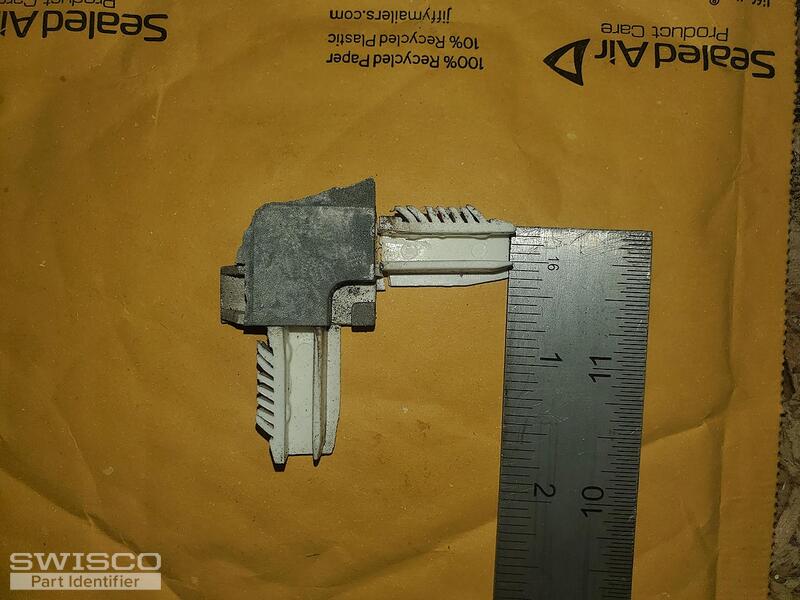

Looking at the photo of your original corner key, it also appears to have a "lip" on the opposite side. We do have a one with that clips onto the frame, but you will need to remove that lip on the leg because it is on the reverse side and won't go into your screen frame. See our 95-206.

Handy Person from Ocean City, NJ
Right on, thanks Dave! i'll try 95-265 first and if I can't make them fit, i'll try the others.
have a nice day!
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Great, please let us know how it works out. Good luck with the project!
