Contractor from North Charleston, SC
May 23, 2023 5:52 pm
Hi,
I've included photos of the removed balance. Currently I do not have access to the home or any installed photos. Please if you can help this would be most ideal.
The overall length of the balance is about 29 inches
The spiral portion of the spring is roughly 16.25 inches. (Photo 20230pul_165809.jpg)

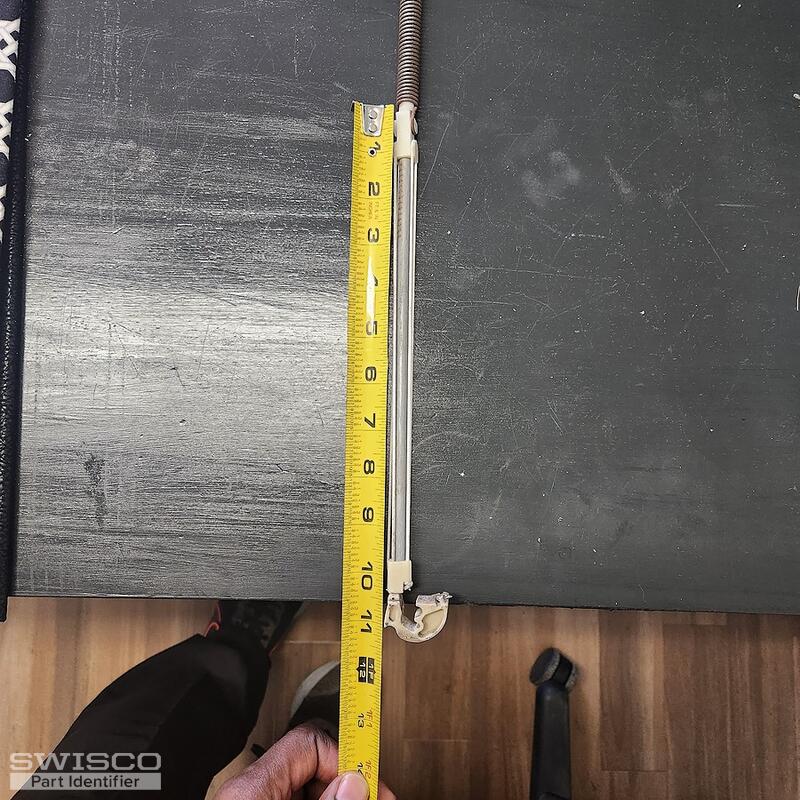

The pulley portion is roughly 11.25 inches (photo 20230523_165835.jpg)

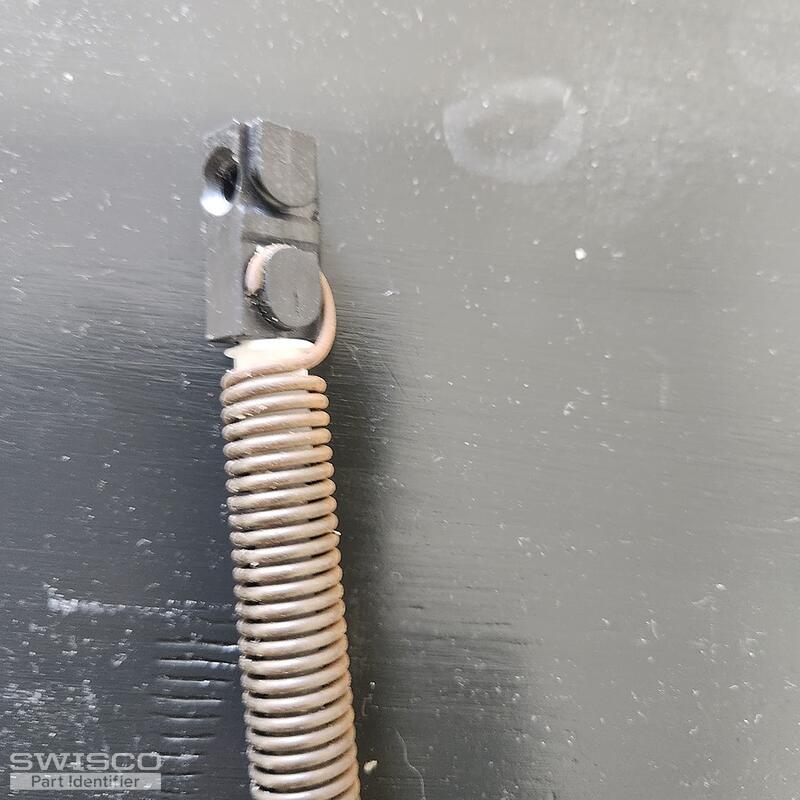

When installed the balance sits in a channel in the window frame and is held I place toward the top of the channel by a screw that goes the center of the black plastic part(refer to photo 20230523-165926.jpg).

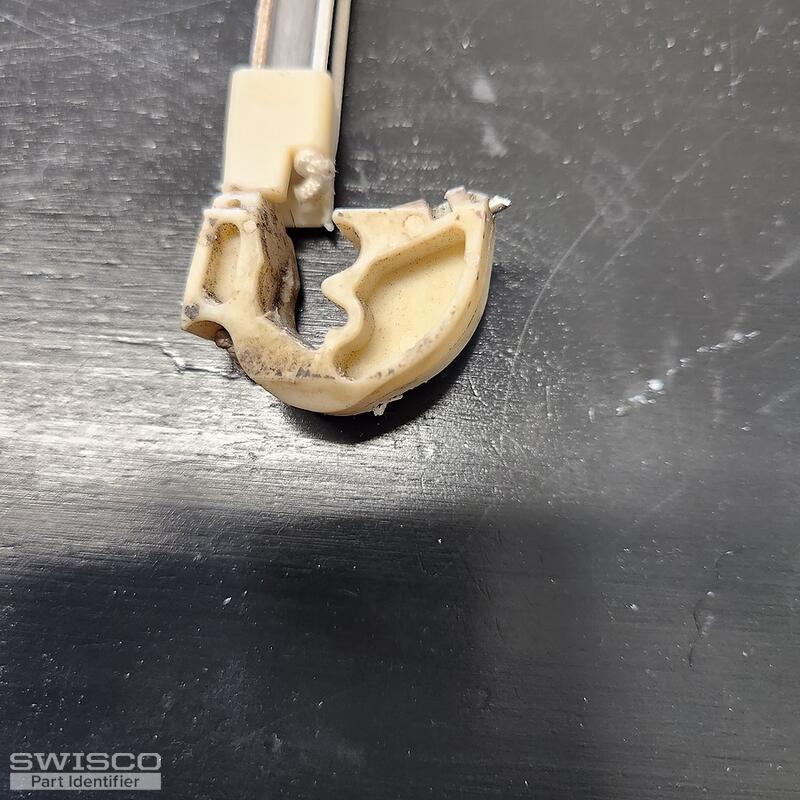

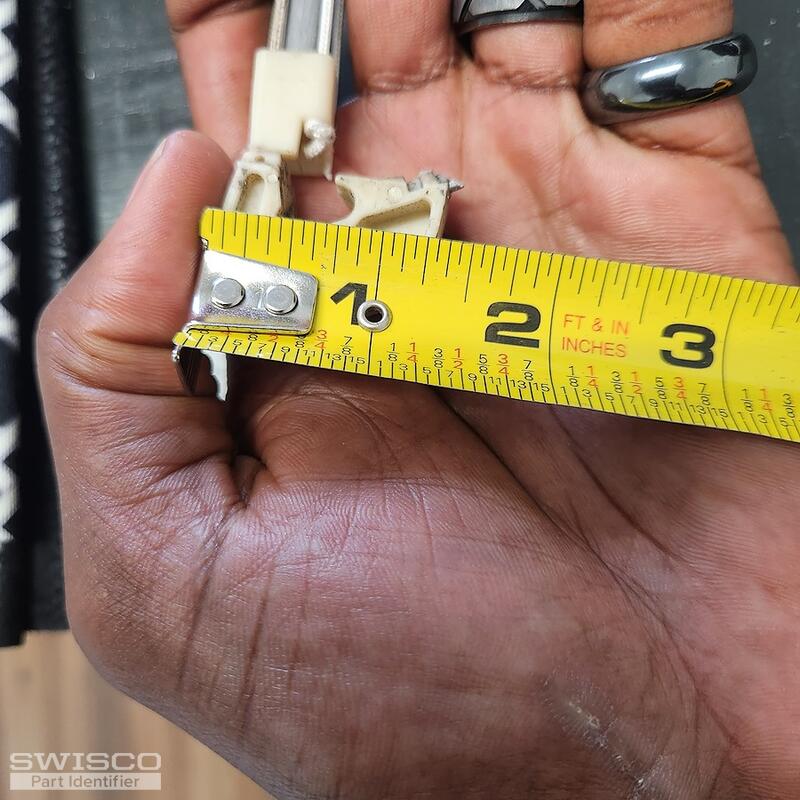

The void in the piece where the window latches in is about 5/16 deep.( refer to photo 20230523_171518.jpg)
I've included photos of the removed balance. Currently I do not have access to the home or any installed photos. Please if you can help this would be most ideal.
The overall length of the balance is about 29 inches
The spiral portion of the spring is roughly 16.25 inches. (Photo 20230pul_165809.jpg)
The pulley portion is roughly 11.25 inches (photo 20230523_165835.jpg)
When installed the balance sits in a channel in the window frame and is held I place toward the top of the channel by a screw that goes the center of the black plastic part(refer to photo 20230523-165926.jpg).
The void in the piece where the window latches in is about 5/16 deep.( refer to photo 20230523_171518.jpg)
5 user uploaded images
1 Replies
