Old drawer rollers

Quick Learner from St. Louis, MO
Feb 1, 2023 5:13 pm

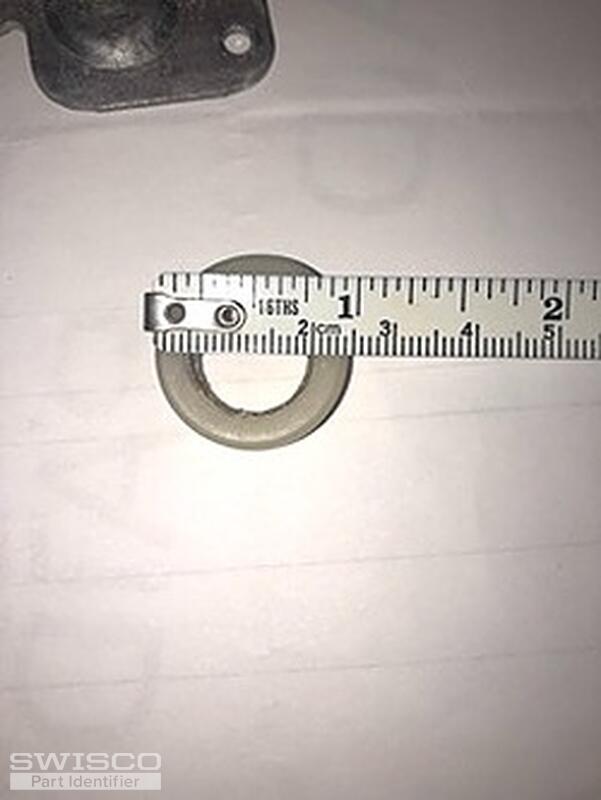

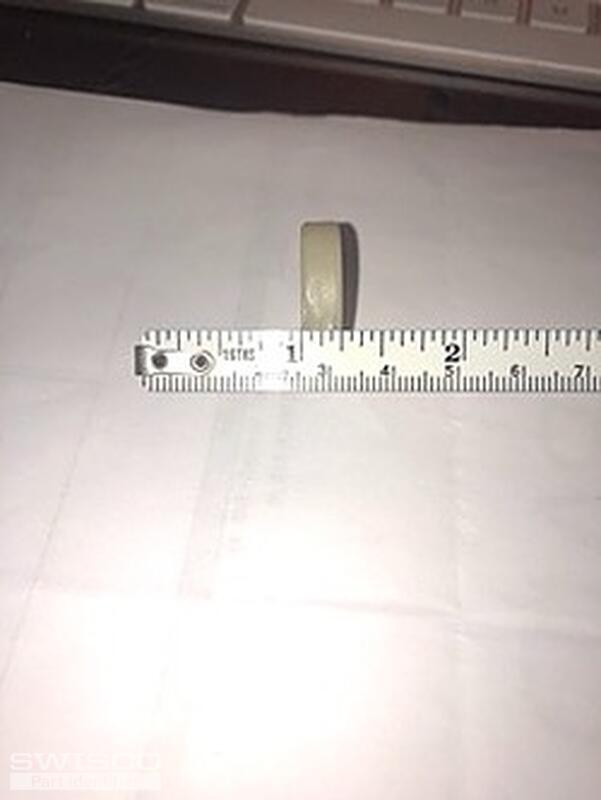

I have an old metal cabinet with roller bearings in the drawer slides. The plastic or nylon wheel broke. It appears to be a rivet axle style so that it fits flush against the cabinet wall.

Can you supply the proper bearing and rivet attachment?

Thank you!

Dan

IMG_9900 Small IMG_9905 Small IMG_9906 Small IMG_9908 Small IMG_9909 Small
5 user uploaded images
3 Replies
Jasmine
Jasmine from SWISCO
Feb 2, 2023 11:11 am
SWISCO
EXPERT

Thanks for writing in. Unfortunately, we do not sell this wheel. The best option we have is the 32-039, but it would take an extensive retrofit to install it. It would require cutting off the old bearing and drilling out a hole for the 32-039 to snap into.

Being quite honest, it might not be worth it but you will have to use your discernment. Take a look and see what you think.

Profile view of 32-039
Profile view of 32-039

Quick Learner from St. Louis, MO
Feb 2, 2023 12:45 pm
Thanks for your response.
Do you know where I can get this wheel?
I'm not opposed to retrofitting if I have no other choice. What size hole is required for the 32-039?
Jasmine
Jasmine from SWISCO
Feb 13, 2023 8:17 am
SWISCO
EXPERT

The diameter hole needed for the 32-039 is just under 5/16". It looks like 9/32" diameter hole will make a tight fit and when you use the nylon axle it will lock it in place.

If you don't believe this will work, take a look at the track kits, like the 32-061, these come in various lengths
