Operator for a casement window in a bay window

Quick Learner from Wisconsin

Sep 15, 2023 10:13 am

We have a bay window with a casement window that does not work very well. I'd like to replace it. I do not know the maker of the hardware though or that of the bay window. How would I find out what part to get to replace the operator with? Currently, when cranking the operator, the gears do not fully engage.

3 Replies

+ Add a Comment

Emily from SWISCO

Sep 15, 2023 2:32 pm

EXPERT

Hello!

It sounds like your operator is stripped. We may be able to help but we'll need more information. Can you open the window and show us a full view of the entire operator, including the arms?

Quick Learner from Wisconsin

Sep 17, 2023 5:43 pm

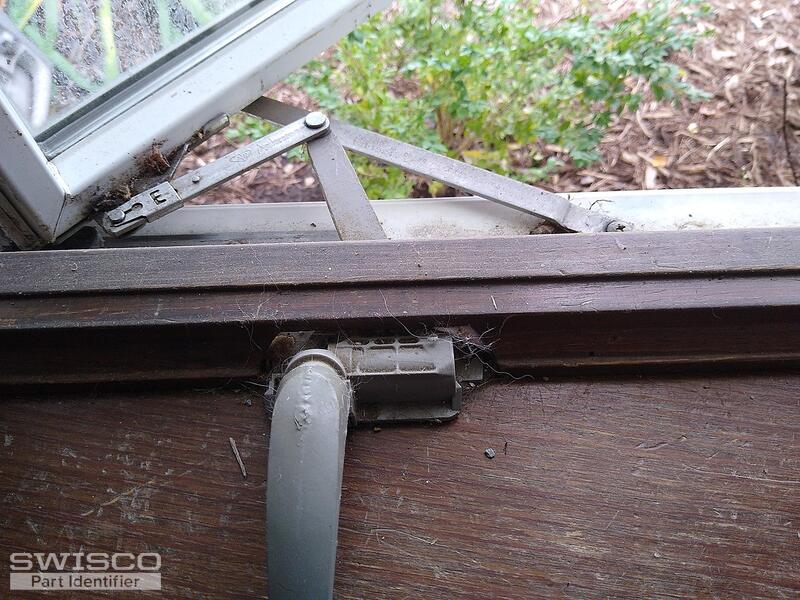

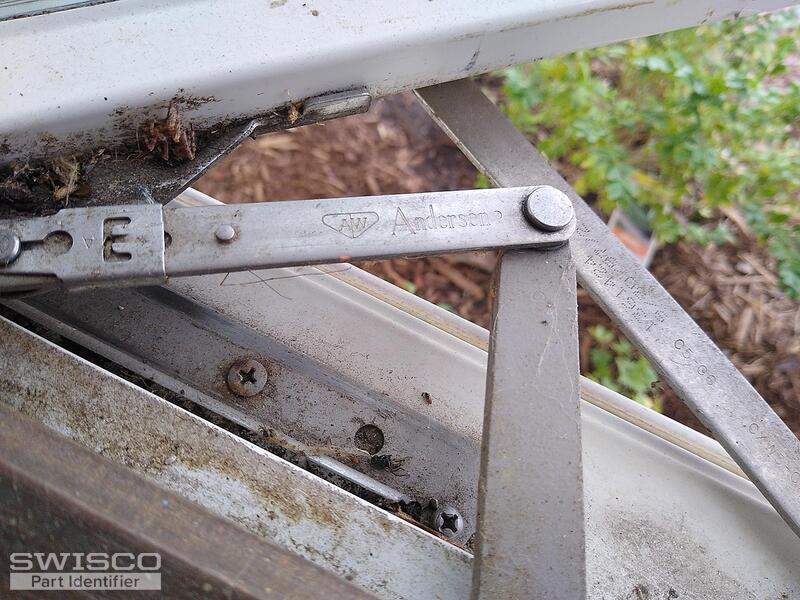

Here are photos of the left hinge window. I need the operator for the right hinge version. I just could not get to it easily. Below are some of the numbers on it:

05-C6
1361424
9/30/97/2

Again, I need the right hinge version.

Thanks heaps!
DLS

anderson left hinge window hardware 2 92023

anderson left hinge window hardware 92023

2 user uploaded images

Emily from SWISCO

Sep 18, 2023 8:18 am

EXPERT

Thanks so much for the additional photos! They're a huge help. I recommend you take a look at the 39-264 Andersen operator which can work on both left and right swing windows. Look over the specifications and see what you think. We also sell the compatible 39-152 cover and 39-267 handle.
