Pan American window operator

A home owner from Florida says:
July 25, 2022
I'm trying to find which series can replace the left awning window operator.
Thumbnail of the uploaded file named 20220725_225726.jpg
Thumbnail of the uploaded file named 20220725_225448.jpg
Thumbnail of the uploaded file named 20220725_225852.jpg
Profile picture of Emily
Emily from SWISCO responded:
July 29, 2022

Hi there!

I'm afraid we don't have an exact match for this operator but you can start by taking a look at our 39-419 and 39-420 awning operators. The installation holes on the bottom tab look like they differ from yours but look over the specifications and compare them with yours to see what you think.
A home owner from Florida says:
July 30, 2022
Thank you for your response. From what I see, the bottom holes size is different. I uploaded 3 more pictures with tape measurements. Can you determine the specs?

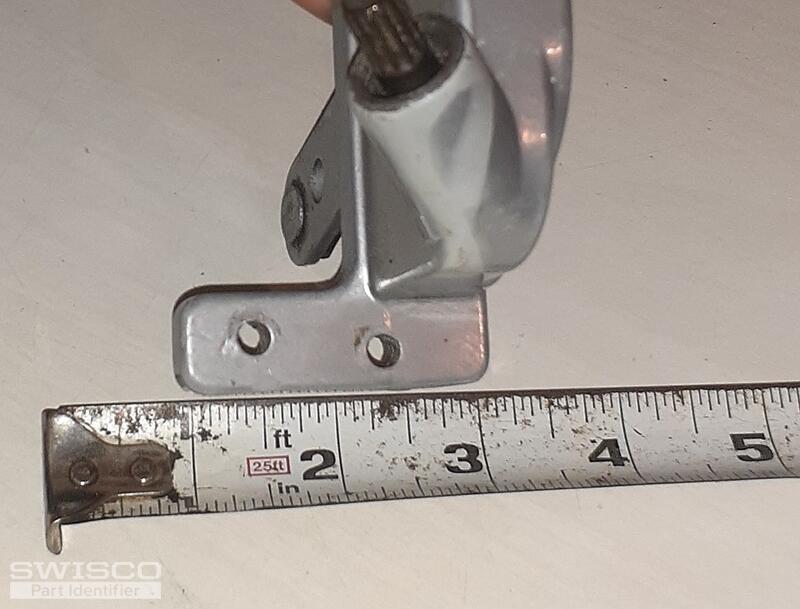

Thumbnail of the uploaded file named 20220730_104106.jpg

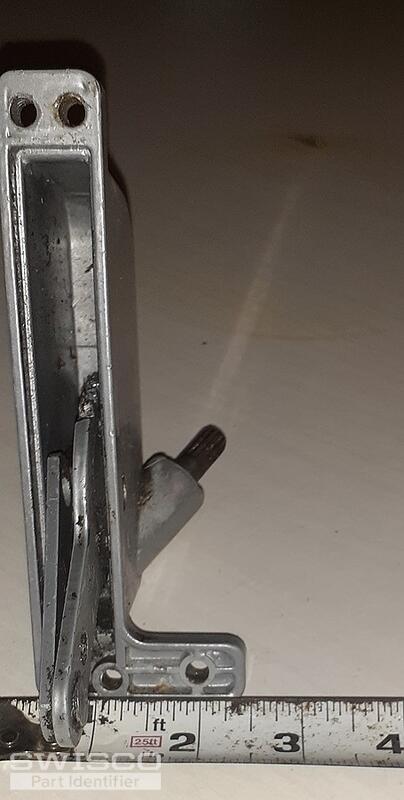

Thumbnail of the uploaded file named 20220730_103258.jpg

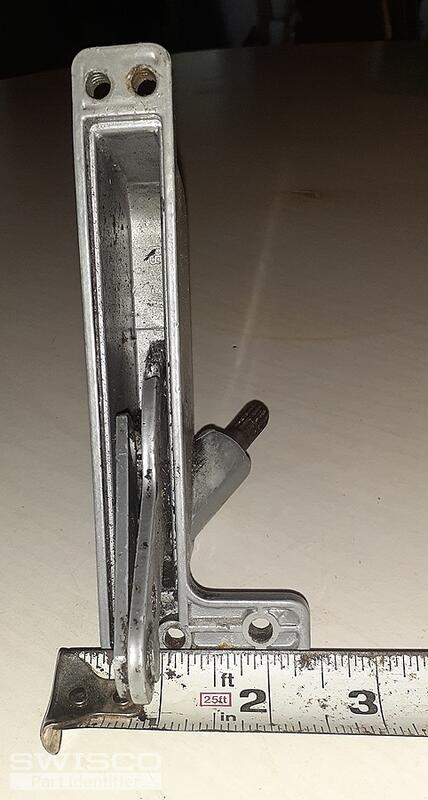

Thumbnail of the uploaded file named 20220730_103205.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
August 1, 2022

It's hard to make out accurate dimensions from photos but the 39-419 and 39-420 operators that Emily mentioned would be our closest match. My concern is the bottom hole locations not being in a "straight" line. You might need to re-drill or possibly make the holes larger in the bottom leg of the operator to match the holes in your window frame.
A home owner from Florida says:
August 3, 2022
Ok. I will try to see if that works. thanks
