Part Identification

Quick Learner from Peoria, AZ

Dec 1, 2023 10:04 pm

Could you please help me identify the replacement for these?

5 Replies

+ Add a Comment

Lauren from SWISCO

Dec 4, 2023 8:36 am

EXPERT

Hello, thank you for posting,

We should be able to help, but unfortunately only one of the pictures came through. Are you able to resubmit the others for us to get a closer look at the balance needed? Thank you!

Quick Learner from Peoria, AZ

Dec 4, 2023 12:33 pm

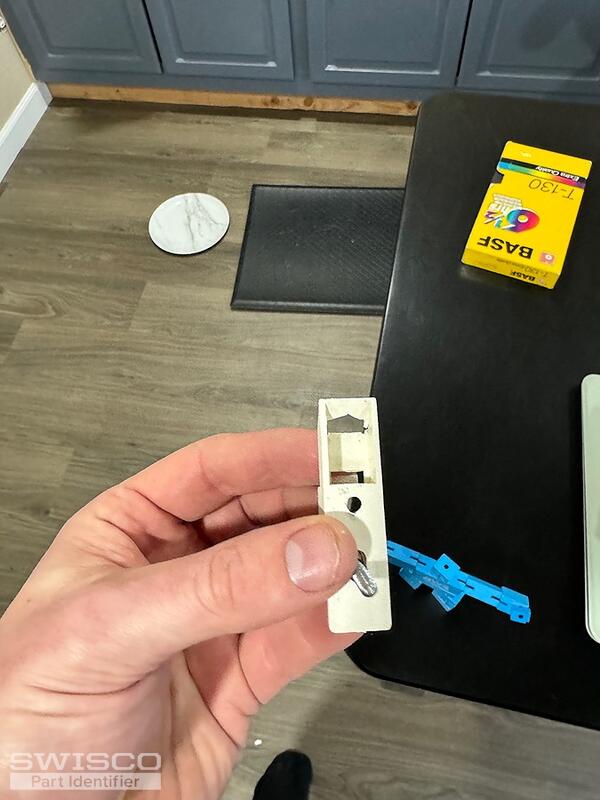

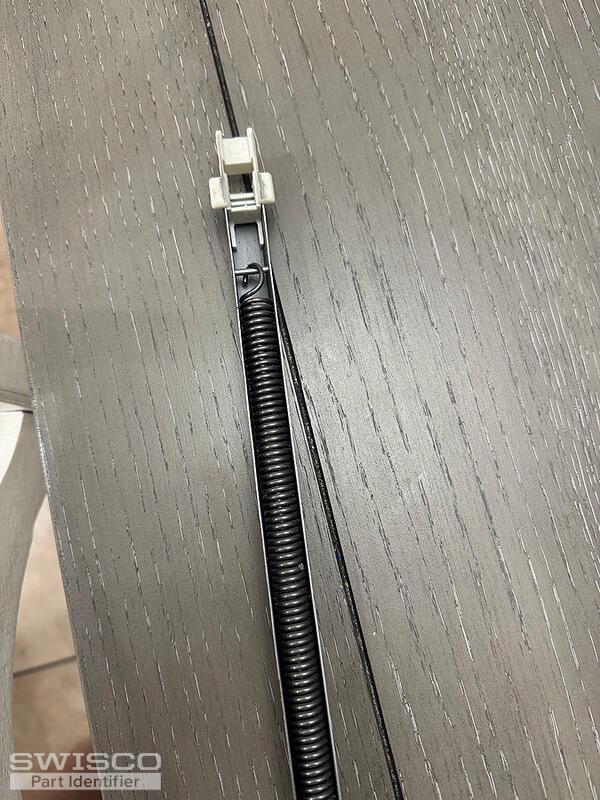

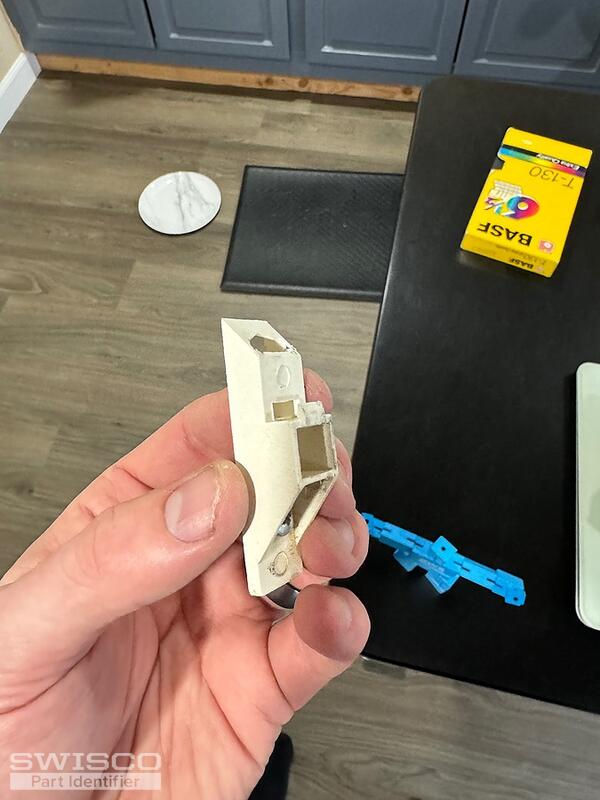

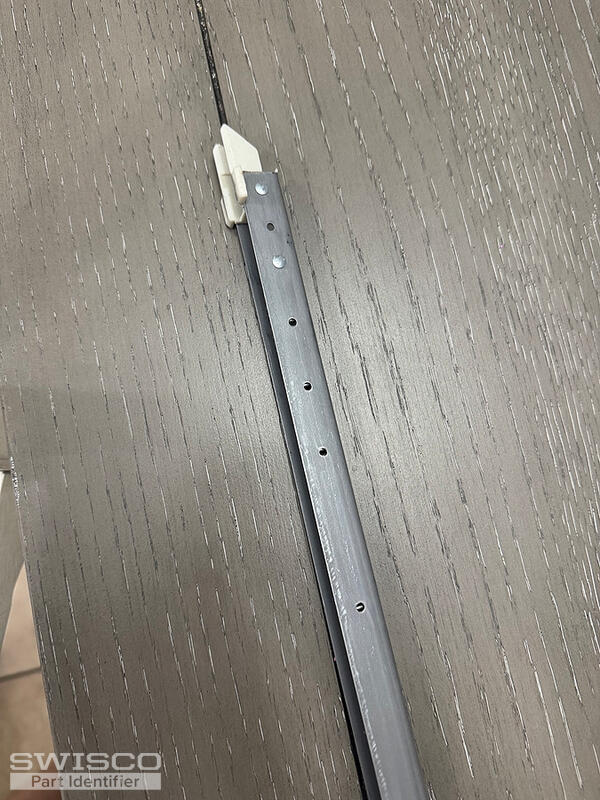

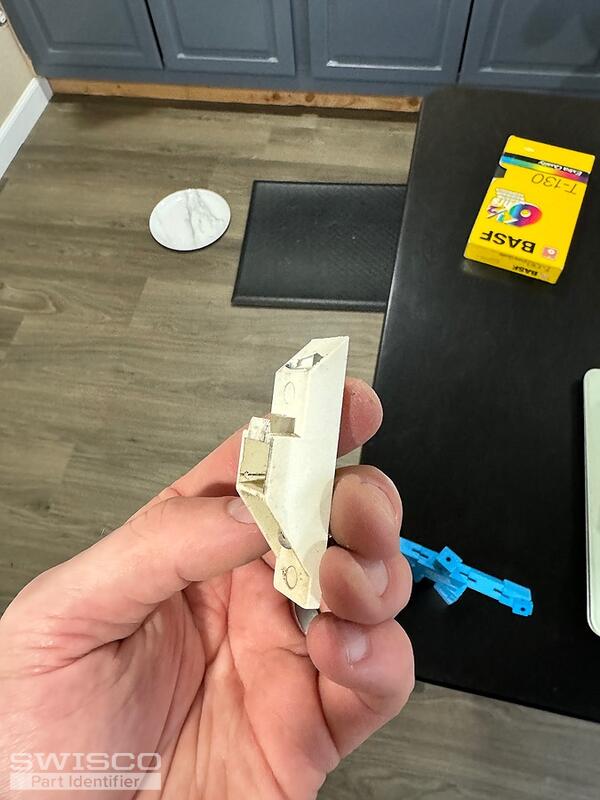

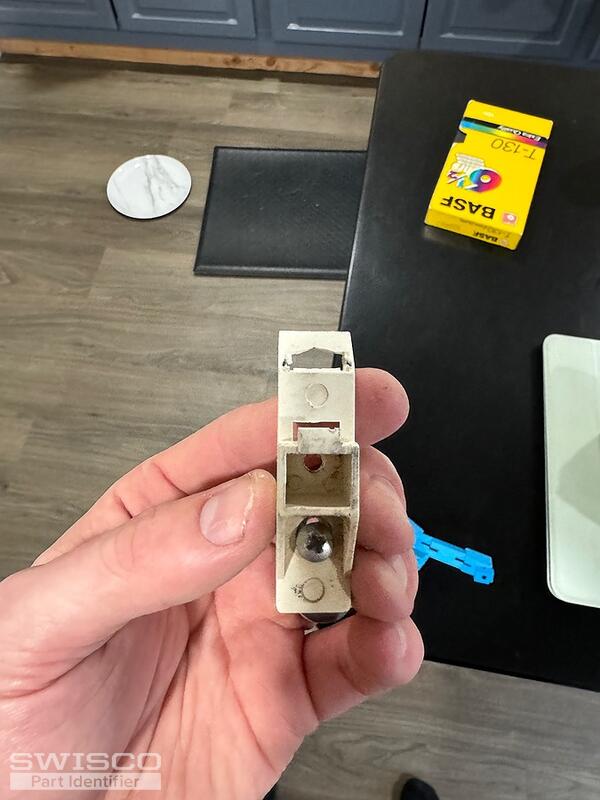

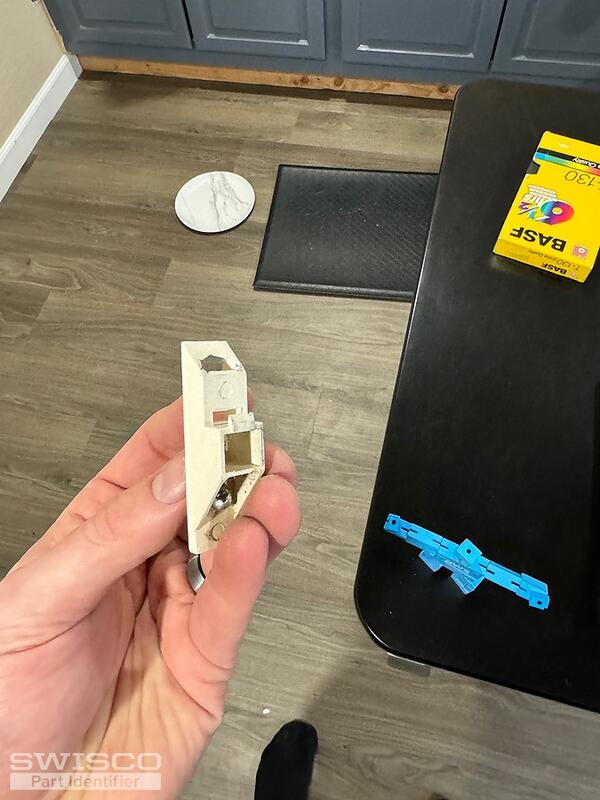

Sorry about that! Adding the additional photos

5 user uploaded images

Lauren from SWISCO

Dec 4, 2023 2:55 pm

EXPERT

Thank you for the additional pictures,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The length of the metal channel excluding the nylon attachments should measure 28" long and you will need a 2730 stamp option. Please review and let me know if you have any additional questions.

Comparison of the S380 and S385 balance shoes.

Quick Learner from Peoria, AZ

Dec 11, 2023 7:18 pm

Thank you so much! Upon further inspection, it appears some of the pieces which attach to the window are also damaged. Could you help me identify the replacement for this piece as well?

5 user uploaded images

Lauren from SWISCO

Dec 12, 2023 7:38 am

EXPERT

It appears that you are in need of a new top sash guide. Please review the dimensions of the 18-202 style below to confirm a good fit! Let us know what you think!
