Parts for Guardian patio door

Quick Learner from Terrebonne, Oregon

Apr 11, 2022 3:30 pm

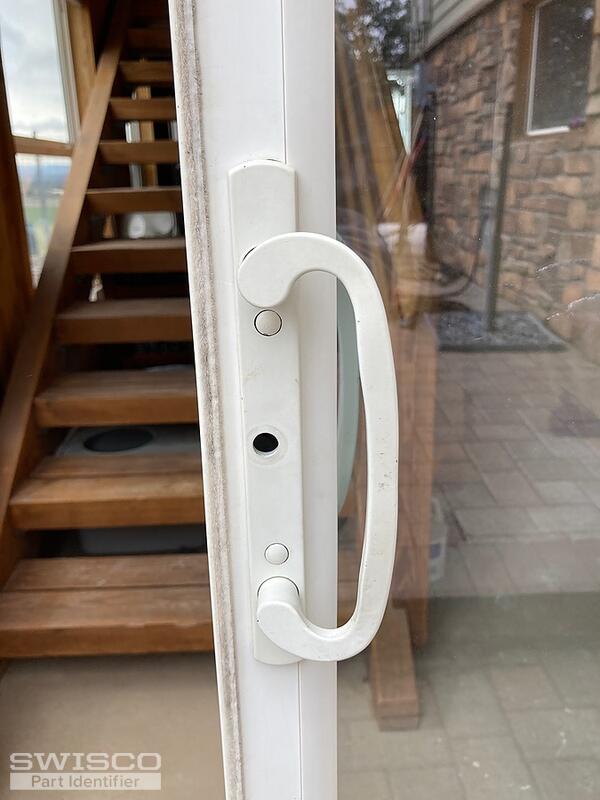

Hi. We're in need of a new locking handle for our Guardian sliding glass door. The door measures 72 x 82, and is tempered.
Sending you an image of the serial number for identification. Thanks!

4 user uploaded images

6 Replies

Tom from SWISCO

Apr 12, 2022 1:40 pm

We don't sell this exact handle set, but I think our 82-030 would be a good fit. It has a 3-15/16" hole center spacing and should be fully compatible with your existing mortise.

Quick Learner from Terrebonne, Oregon

Apr 12, 2022 3:27 pm

Thank you! Two more questions:

Is there a lock with key that fits the 3-15/16" handle?

Do you know which rollers we might purchase for this item?

Thank you for your help.

Casey from SWISCO

Apr 13, 2022 2:40 pm

Hi,

Tom, is out today but I'd be happy to answer your questions. The 82-030 that Tom mentioned is compatible with the 82-310 key lock. Take a look at our guide for these parts here.

As for your roller, we may very well carry a replacement but we would need to see the original roller removed from the door to compare to our inventory. Thank you!

Handy Person from Maryland

Mar 4, 2023 3:48 pm

We have Guardian sliding doors. Trying to find a replacement door handle. The base of the handle is approximately 9.5 inches long. Screw holes nominal 4 inches apart and the throw lock is about on e in above the bottom screw. The lock extends two jaws into the locking plate. Appreciate any help you could provide.
Mike

Tom from SWISCO

Mar 7, 2023 2:56 pm

I'm afraid I don't know what you have. Guardian only makes glass, they don't make doors.

Before I make a recommendation, can you show me a photo of the handle in question? Can you also verify the hole spacing? Make sure to only measure from the center of each hole, not their edges. It should be more like 3-15/16".
