Parts needed

Handy Person from Chicago
May 11, 2021 6:25 pm
(Qty - Item)

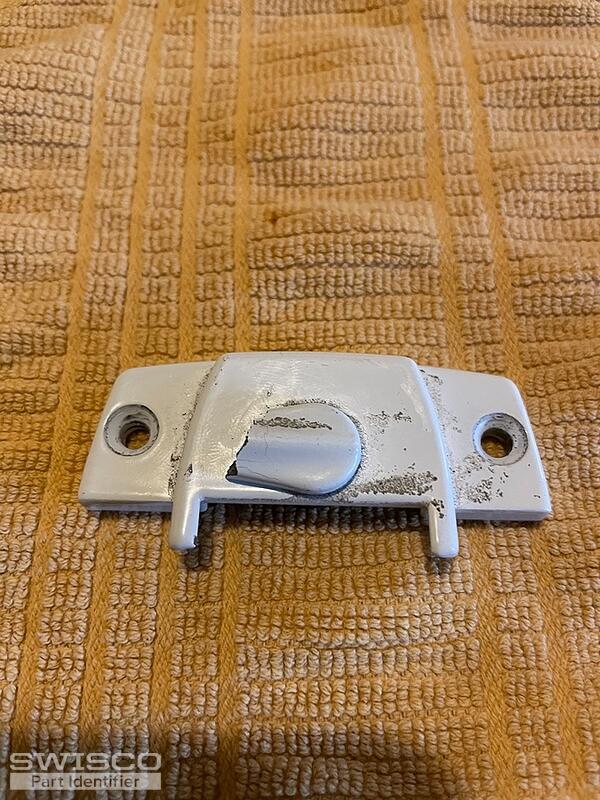

1 - Window Sash lock 2 1/4"

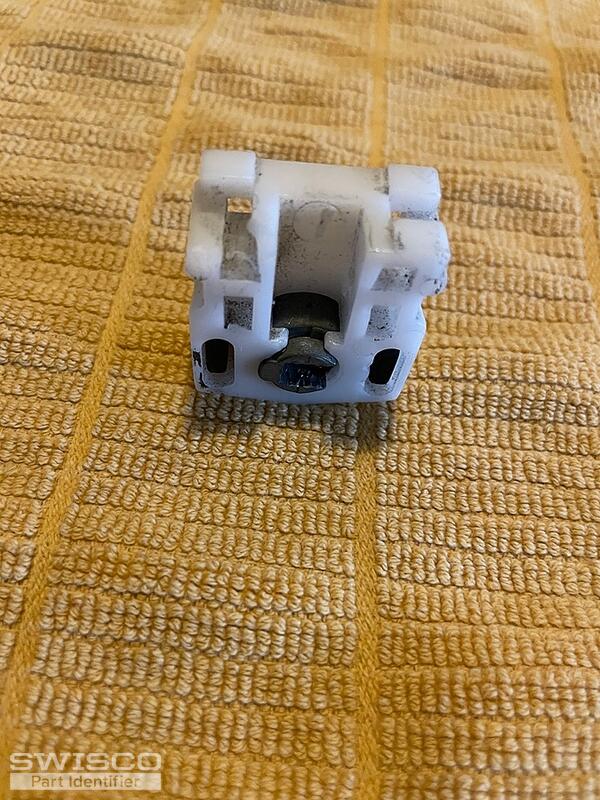

2 - Pivot Shoe L 1 3/16" X H 1 5/16 X W 1/2"

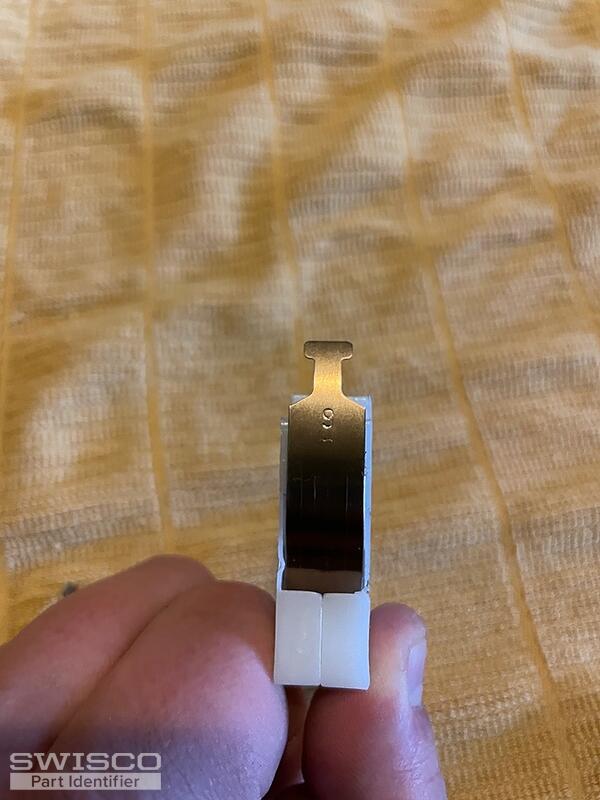

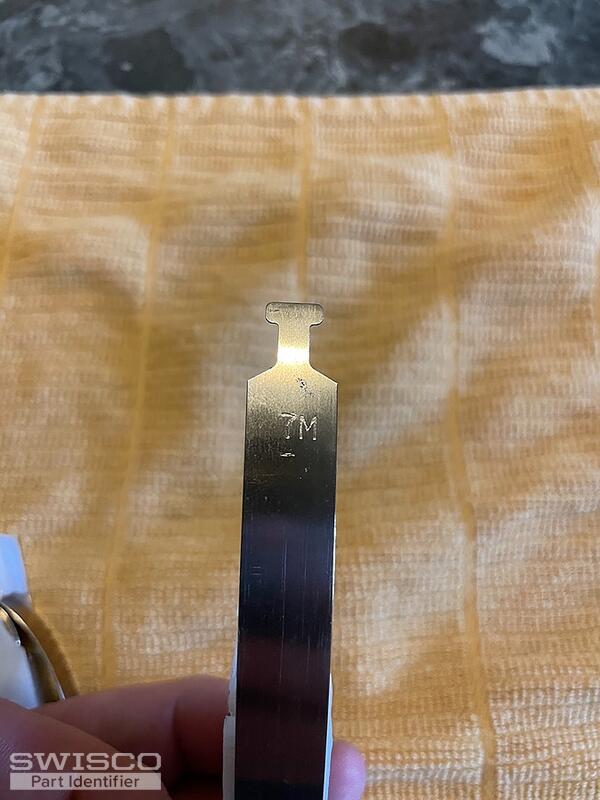

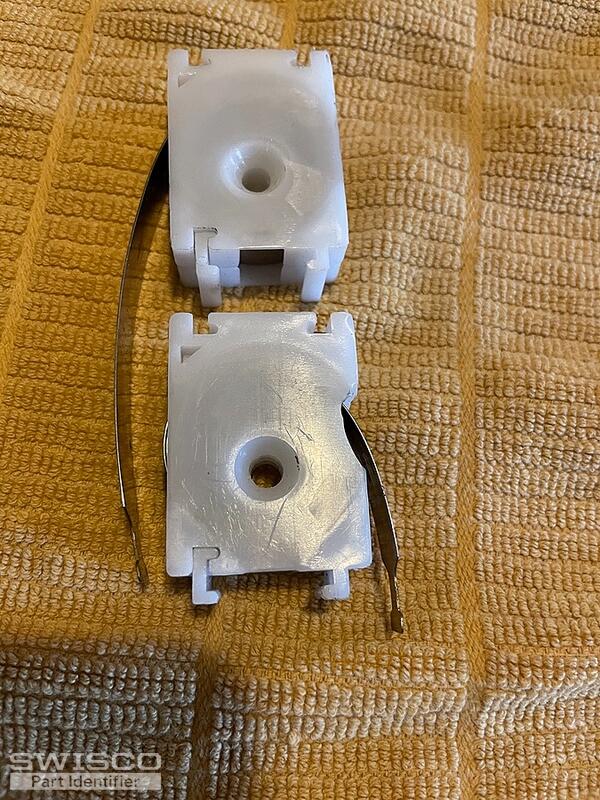

2 - Tandem Coil Balance
7 & 9 7/16" band width

The window sash is identical to your #90-305 but need it at 2 1/4" hole to hole.
B6B9536B-8975-4DEF-8188-A2B94DC98395 696F3A58-4B9C-4896-BEA0-A106209BE784 FFAF7B1A-C43D-496E-A1CA-5AEF5FA42151 92CDF352-898B-4C95-ABDC-F35FED128AEE 597BD653-4D85-40BE-8C7A-720B10D5510E
5 user uploaded images
1 Replies
+ Add a Comment
Paul
Paul from SWISCO
May 13, 2021 9:34 am
SWISCO
EXPERT

The 90-305 lock only comes with a screw hole distance of 2-1/16" not 2-1/4".

For 2-1/4", you can use our 90-300. For the coil spring balance system, we suggest the S140-16 as a possible replacement with the 26-398 pivot bar.

+ Add a Comment
