Patio Glass Sliding door lock

Quick Learner from Tucson AZ

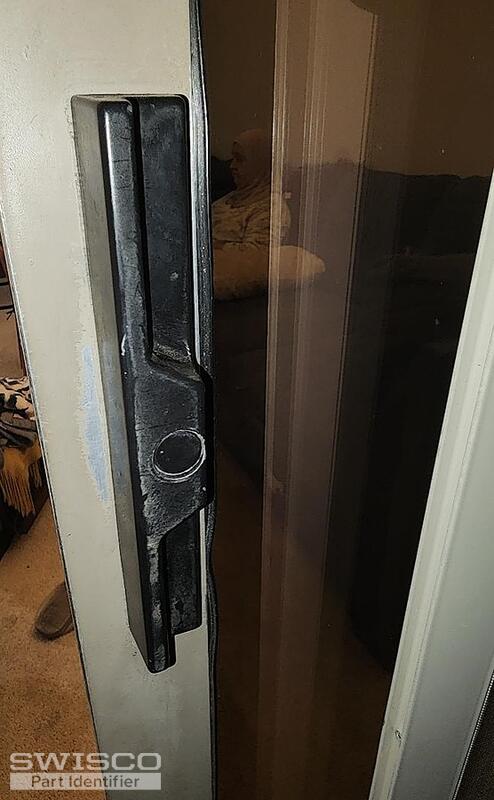

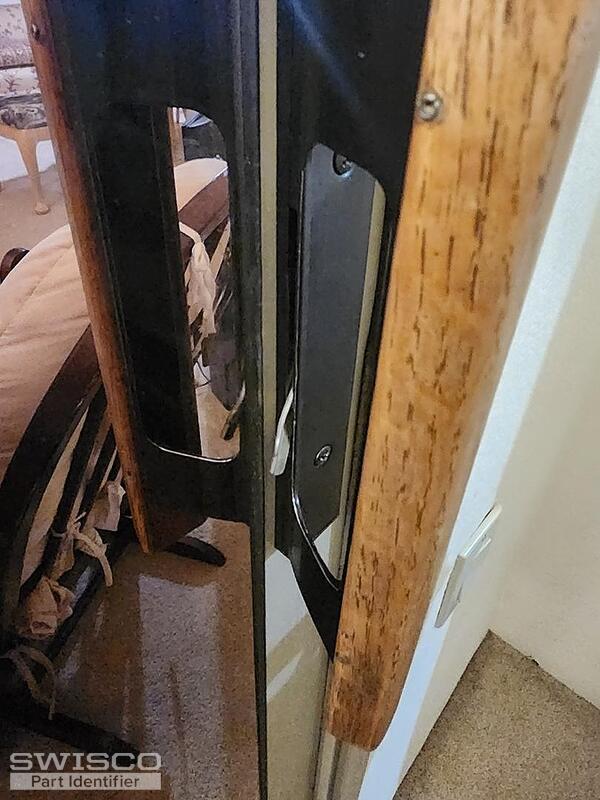

I Just moved in to this duplex and the condition of the Patio Glass Sliding door lock housing is in the photos. Distance between the inner two screws is 3.5 inch and the distance of opening is 4.75 Inch. I am looking for the lock and any missing needed hardware.

Thank you
Ayman
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hey Ayman. Without seeing the original mortise lock I am afraid it's going to be difficult to say for sure what you need. My first guess is our 82-244. This works with the handle set your door uses; moreover, its screw holes would come at a similar position, and the hole spacing is close to what you cite (3-9/16" vs 3-1/2"). The overall height of the lock is a little less, however (4-9/16" vs 4-3/4"). Still, double-check your dimensions, review everything shown below, and see if you think this lock might fit your door. Let me know what you decide.

Dimensions for 82-244
Dimensions for 82-244
