Peachtree window balancer replacement

Quick Learner from NY
Jul 18, 2023 6:04 pm
Looking for replacement balancers for my Peachtree window. The stamp on the back of the balancer is 4248 1 BL CALDWELL.
Peachtree balancer(1) Peachtree balancer(2) Peachtree balancer(3)
3 user uploaded images
4 Replies
Casey
Casey from SWISCO
Jul 19, 2023 2:02 pm
SWISCO
EXPERT

Hello,

We'd be happy to help but, unfortunately, your balance is too damaged to identify. We would need to see an intact balance removed from one of your windows, as well as confirm the exact weight of your window sash, to determine if we can supply a suitable replacement. Thank you!

Quick Learner from NY
Jul 27, 2023 8:09 am
Please find attached pictures of a working balance as requested.

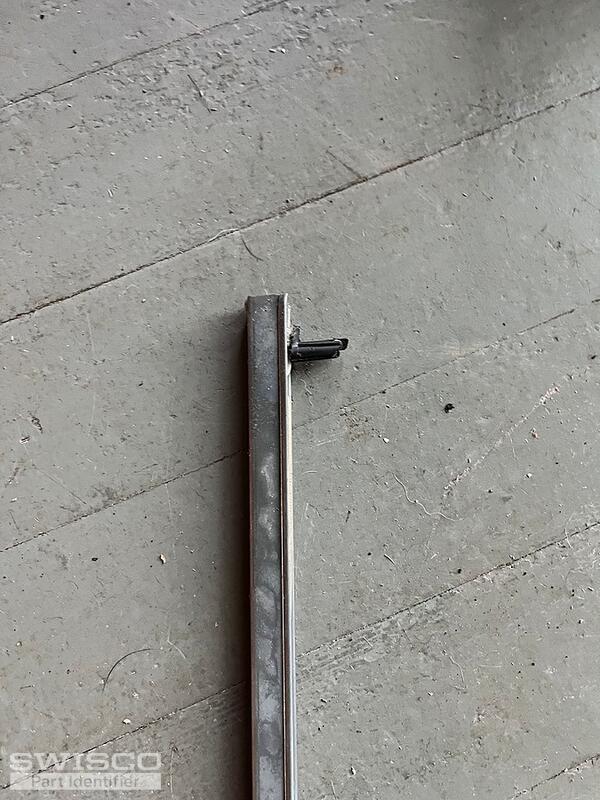

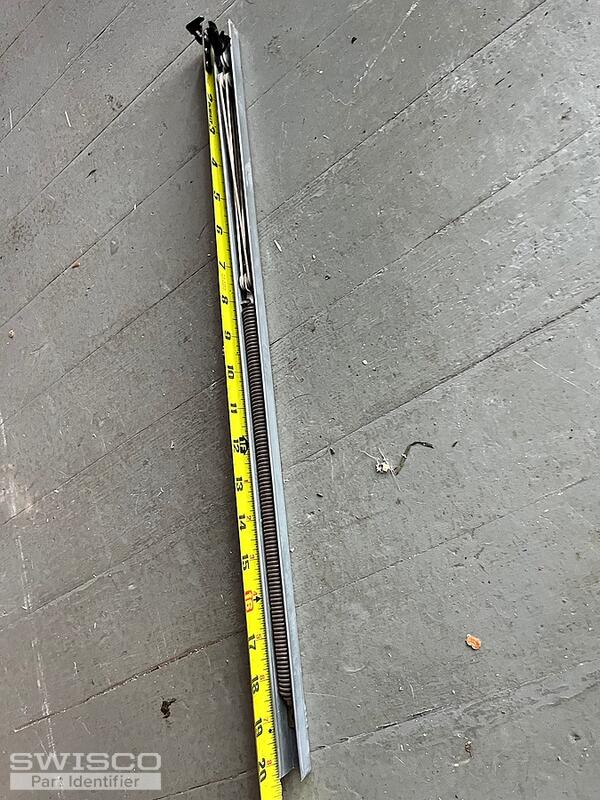

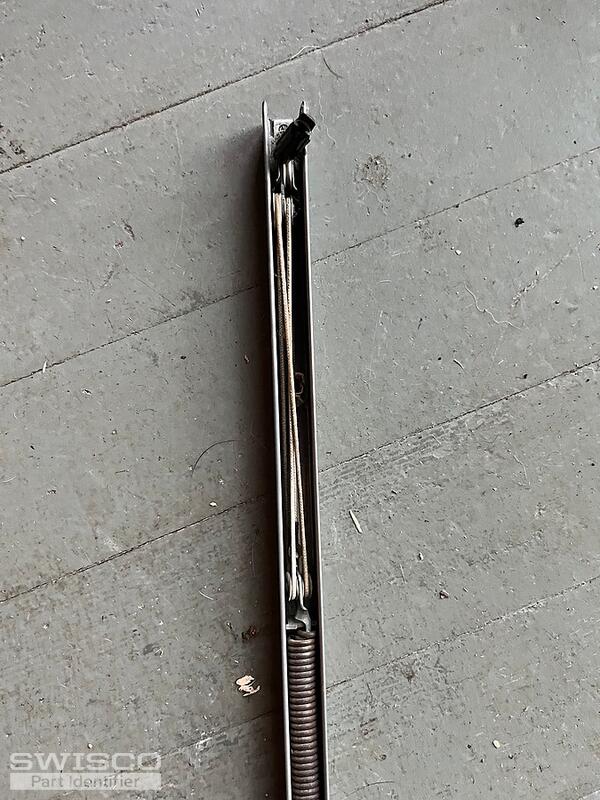

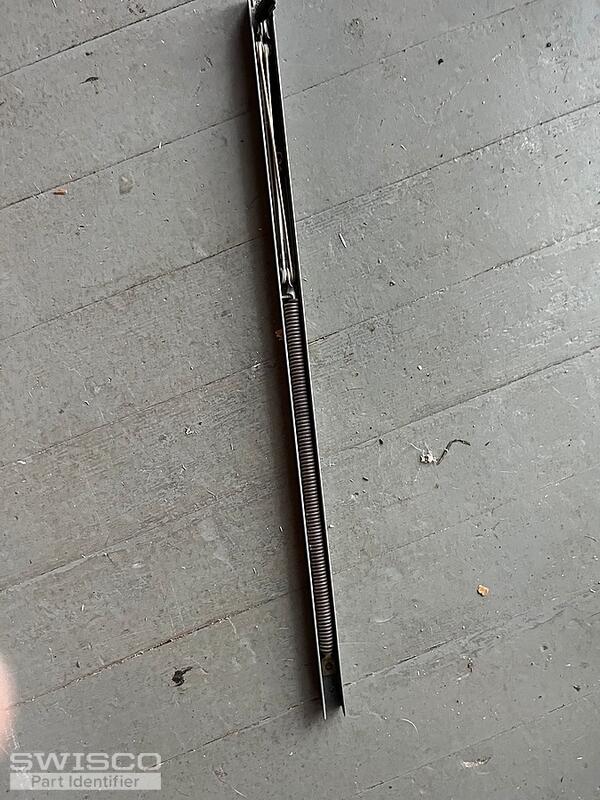

Balance 1 Balance2 Balance3 Balance4
4 user uploaded images
Quick Learner from NY
Jul 27, 2023 8:09 am
Also the window weighs 20lbs
Casey
Casey from SWISCO
Jul 27, 2023 12:18 pm
SWISCO
EXPERT

Thanks for getting back to us. Your balance resembles the S745-20 Peachtree balance but keep in mind that the metal channel measures 20-1/4" long. There is a good chance that this would not work for you if your channel only measures 20" long.

As for your 4248 stamp code, that would correlate to the 19.24.6 strength option for the S745-20 but the spring will be calibrated to support a sash between 22-26 Ibs. I would recommend double-checking the weight of your window to confirm that it falls within that range. If you decide to give these balances a try, please note that there will be a 2-3 week lead time since we do not have the 19.24.6 strength option currently in stock.
