Pella Casement Window handle and lock

A handy person from Wisconsin says:
Hello! I'm hoping to find hardware that will fit my Pella Casement window. Photos attached.

Thumbnail of the uploaded file named PXL_20231117_011241873.jpg
Thumbnail of the uploaded file named PXL_20231117_011100083.jpg
Thumbnail of the uploaded file named PXL_20231117_011234793.jpg
Profile picture of Lauren
Lauren from SWISCO responded:

Hello, thank you for posting,

To further review, would it be possible to see the window open where we can see operator arm? I believe you may have a style like the 39-391 and 39-392 that uses the 39-403 and 39-404 folding crank and lock fit. Please review to see what you think!

A handy person from Wisconsin says:
Hello Lauren,

Thanks for the reply. I've attached a photo of the operator arm.

Thanks!
Luke

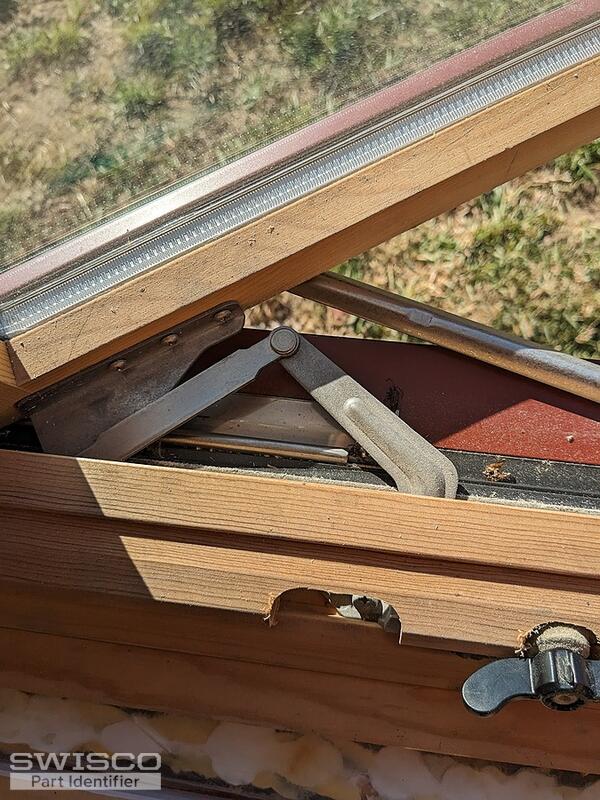

Thumbnail of the uploaded file named PXL_20231119_172703511.jpg

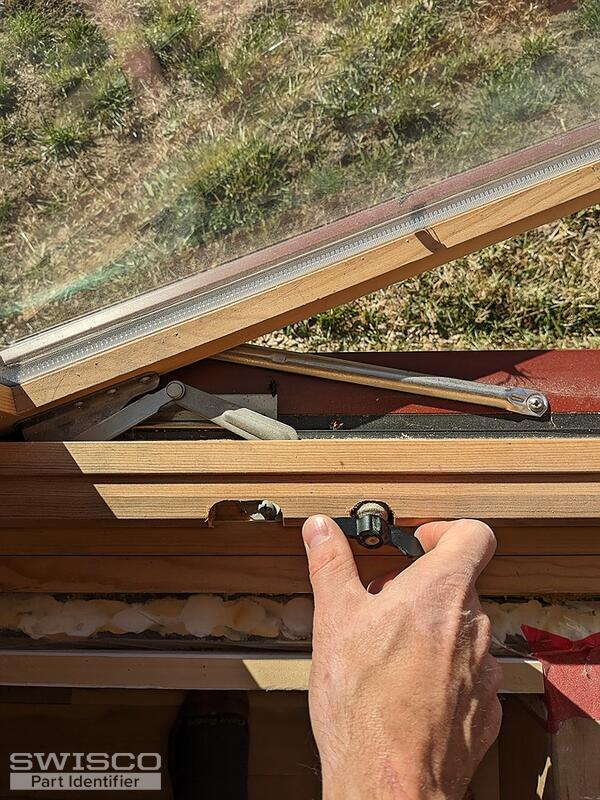

Thumbnail of the uploaded file named PXL_20231119_172710010.jpg
Profile picture of Lauren
Lauren from SWISCO responded:

Hi Luke, thank you for the additional pictures,

Your operator does match the style of the 39-392 operator that is compatible with the 39-404 folding crank and lock kit. Please review and let me know if you have any additional questions!
