Pivot Bar

A home owner from Alabaster Al says:
2 inch long
5/16 wide
3/16 high (not rounded has a flat top)
Thumbnail of the uploaded file named IMG_20221213_073206176.jpg
Thumbnail of the uploaded file named IMG_20221213_073214315.jpg
Thumbnail of the uploaded file named IMG_20221213_073324073.jpg

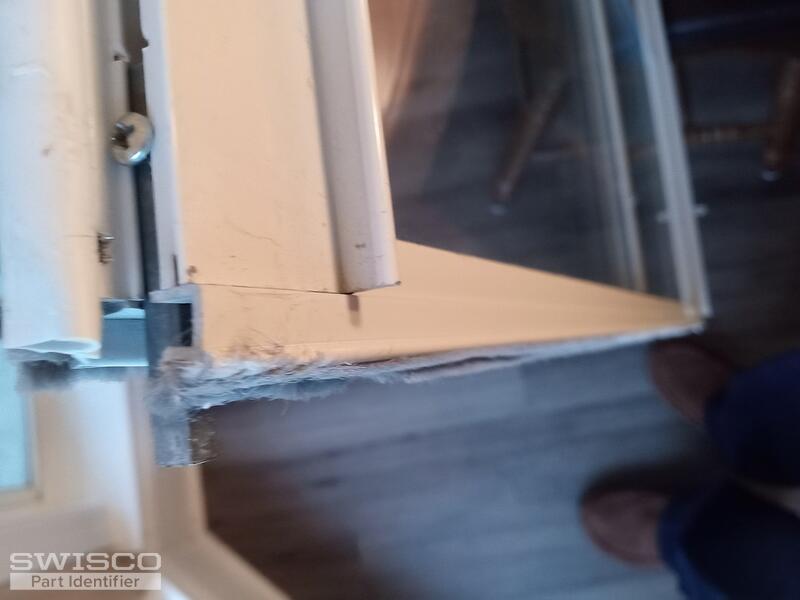

Thumbnail of the uploaded file named IMG_20221213_074729497.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We do not carry an exact match for your pivot bar but we do offer a few similar options, which we've related on this page for you to review. Ours are a bit longer but one of them could still work if one of the installation holes matches the backset of yours. Take a look and thanks for posting.

A home owner from Alabaster Al says:
I'll try 26-068. Might work if the top is flat not rounded. Just returned 26-040 due to rounded shape will not slide in.





Profile picture of Casey
Casey from SWISCO responded:

That sounds like a plan. Just let us know if you have any other questions.

A home owner from Maryland says:
I successfully replaced the coil spring and pivot shoe assemblies on a Simonton window using your excellent instructions and new parts. As directed I got the new pivot bars 26-083. These fit, but the screws from the old pivot bars did not fit in these new ones. I had to scrounge around for some tiny screws. As I continue to repair the other windows in my home, do you have screws that will fit the new pivot bars?
Profile picture of Casey
Casey from SWISCO responded:

I'm glad to hear that all of the parts you've installed so far have worked well. See the 33-074 self-tapping screw shown under the 26-083 related items section of the product page. If you need a longer screw for your application, you should be able to pick up #6 self-tapping screws from a local hardware store.
