Pivot bar

A home owner from Wonder Lake, IL says:
Hoping you can help me find the correct pivot bars from my window, as you can see one of them is broken, and the other 1 is bent
Thumbnail of the uploaded file named 16683667856654682550789748470530.jpg
Thumbnail of the uploaded file named 16683668507416924541860705770079.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We'd be happy to help but we would like to see photos of the pivot shoe that your pivot bar engages with to determine if we could provide a suitable replacement. Thank you!

A home owner from Wonder Lake, IL says:

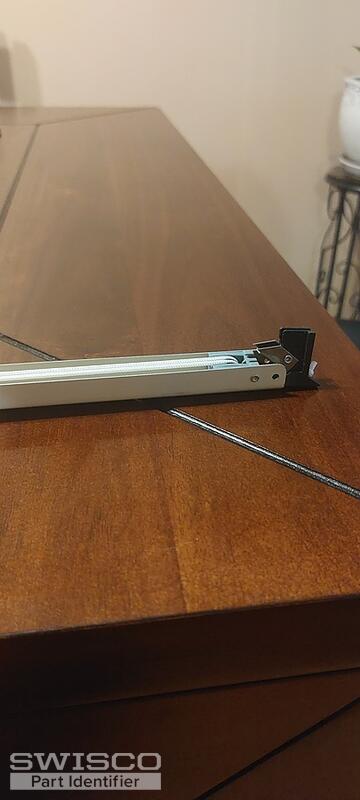

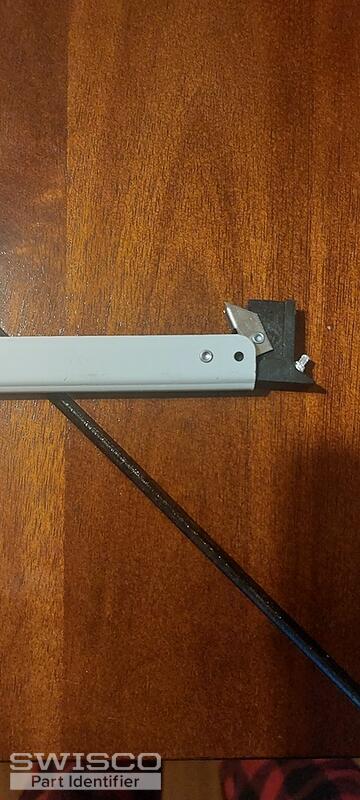

Here is the pivot shoe, 24 HD That the pivot bar engages, I purchase these from you also.
Thumbnail of the uploaded file named 16692071401188578446427592426221.jpg
Thumbnail of the uploaded file named 16692071714822495250624690686273.jpg
Thumbnail of the uploaded file named 16692072004571733787808724534942.jpg
Profile picture of Casey
Casey from SWISCO responded:

Thanks for getting back to us. Unfortunately, we do not carry an exact match for your original pivot bar but we do offer the 26-150, which is compatible with the S751 channel balance shown in your photos. You'll notice that our pivot bar would mount to the side of the sash, while yours installs on the bottom. You would need to determine if you have clearance on the side of the sash to install the 26-150 and if you are able to make a new installation hole, being careful not to hit the glass. Take a look and see what you think.
