Pivot bars needed

Handy Person from 28105
Jun 6, 2023 3:02 pm

Hello, I needing some pivot bars. They measure right at 3" long. There is a number of 6240 stamped on them. Attached are 3 photos. Thank you for any help you can provide!

Sincerely,

Ned

IMG_9386 IMG_9387 IMG_9388
3 user uploaded images
3 Replies
Emily
Emily from SWISCO
Jun 8, 2023 10:53 am
SWISCO
EXPERT

Hello there, Ned.

Our 26-369 pivot bar looks similar to what you have here. However, this measures 2-5/16" long. The overall length isn't that crucial so you may still be able to get this to work. You only need one of the hole placements to match up with the original. Take a look at the specifications and see how they compare with yours.

Handy Person from North Carolina
Jun 12, 2023 9:13 pm
Well, I can't really see any of the holes matching up with the existing pivot bar. The 2 screws of mine were in the 1st and 3rd holes. Can I drill new holes in my window to accommodate another pivot bar you have and maybe use some adhesive or superglue as well? Any advice is

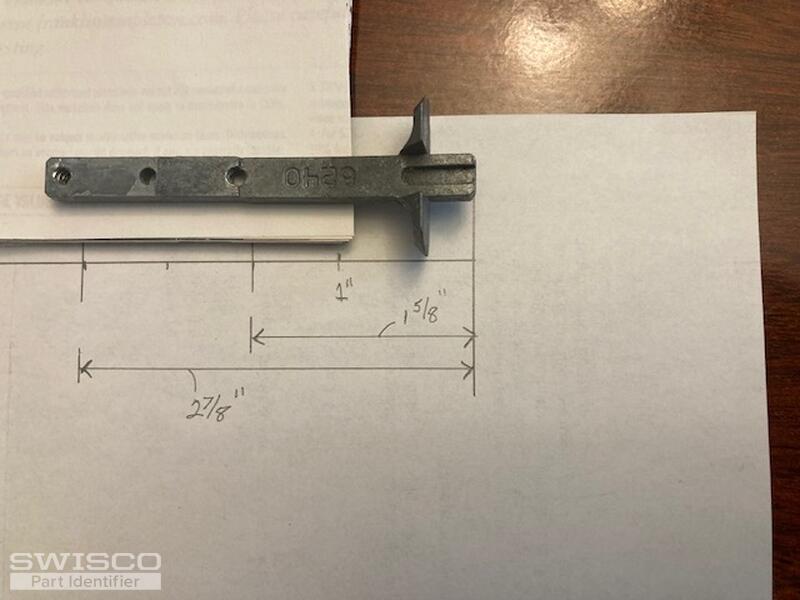

helpful! I'm including a better photo with measurements now from the outside edge. The
distances from the end to the holes are 1 5/8" and 2 7/8". The angle of the photo makes the hole center marks look like they are off but the measurements are good.

Thank you,
Ned
IMG_9544
1 user uploaded images
Paul
Paul from SWISCO
Jun 15, 2023 10:06 am
SWISCO
EXPERT

Thank you very much for waiting while we looked into this. We weren't able to find this pivot bar or a substitute with the same hole placements, unfortunately. Do you think you can re-drill new holes to install the 26-369? If so, that would be my suggestion.
