Pivot/Coil Replacement

Question

Hello,

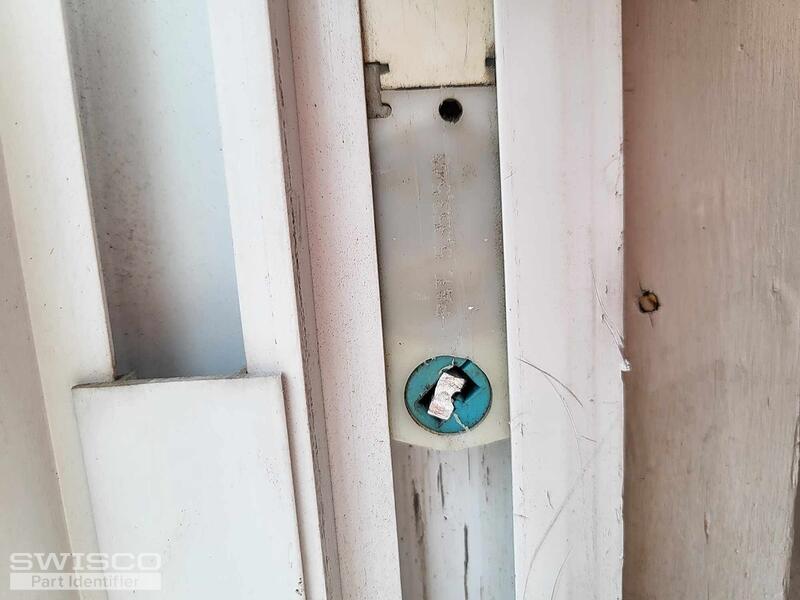

I'm looking for replacement parts for the pivot bar, pivot shoe, and coil balance for two (2x) 14.4lb windows. The PAT # on the shoe in the picture is 5,353,548.

Could you help me choose the right parts?

Thank you,

James

Lauren · Accepted Answer

Hi James, thank you for posting,

Please review the style and dimensions of the 15-087 pivot shoe that is compatible with the Series 180 coil springs. Compare below to confirm a good fit!

Detail of 15-087

It appears your original used a double coil setup, but if the sash weight is 14,4 pounds, you can use (1) S180-7 coil spring on each side that installs into the 15-087 pivot shoe.

For the pivot bars, please review the dimensions of the 26-395 pair. Let us know what you think and if you have any additional questions!

Alternate image for 26-395

Hole center measurements for 26-395
