Please confirm Part Number - 27 1/2 3 Caldwell DM

Home Owner from Virginia

May 5, 2024 3:54 pm

Hi,

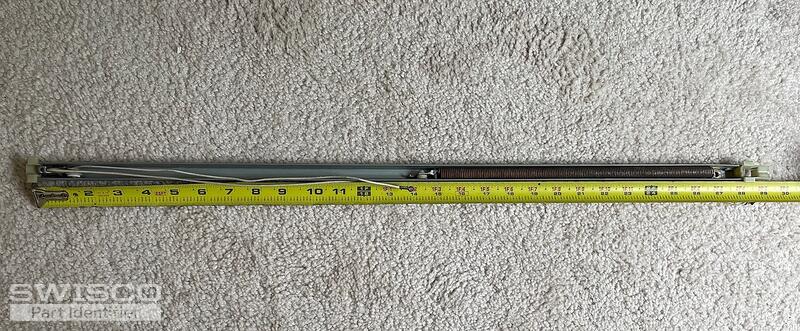

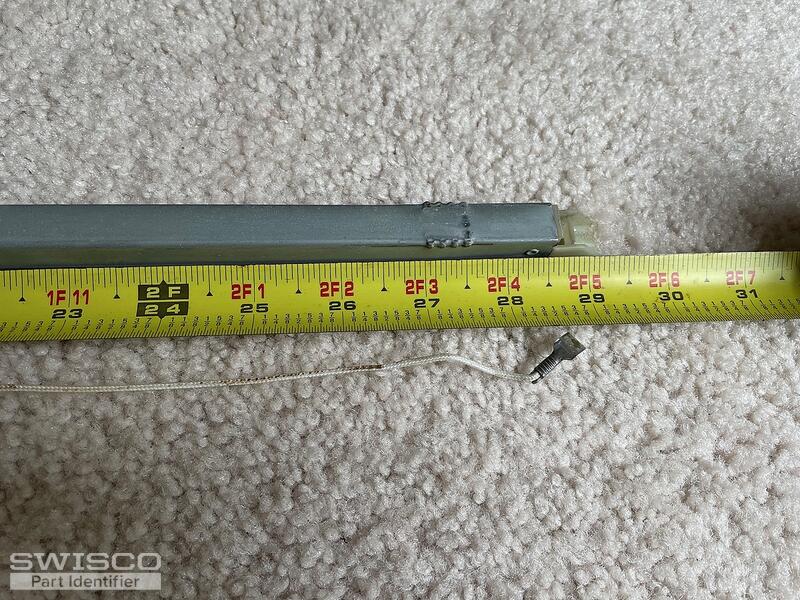

Could you please confirm the part number? this appears to be a 28" series 395 channel balance, but it measures 28.5". Stamp indicates 27 1/2" 3 Caldwell DM. Can you please confirm length and appropriate option?

5 user uploaded images

6 Replies

+ Add a Comment

Quick Learner from USA

May 6, 2024 9:26 am

Channel Balance Series: S350

Channel Length: 28.5

Channel Stamp: 27-1/2" 3

Quantity: 6

Emily from SWISCO

May 8, 2024 10:35 am

EXPERT

Hello there! This doesn't look like the Series 395 or the Series 350. The top and bottom fittings on yours are winged like the Series 380 and Series 385. Can you measure the bottom fitting as shown below and tell us what you find?

Please note that this must be a custom order since your metal channel measures 28-1/2" long.

Comparison of the S380 and S385 balance shoes.

Quick Learner from USA

May 19, 2024 9:20 am

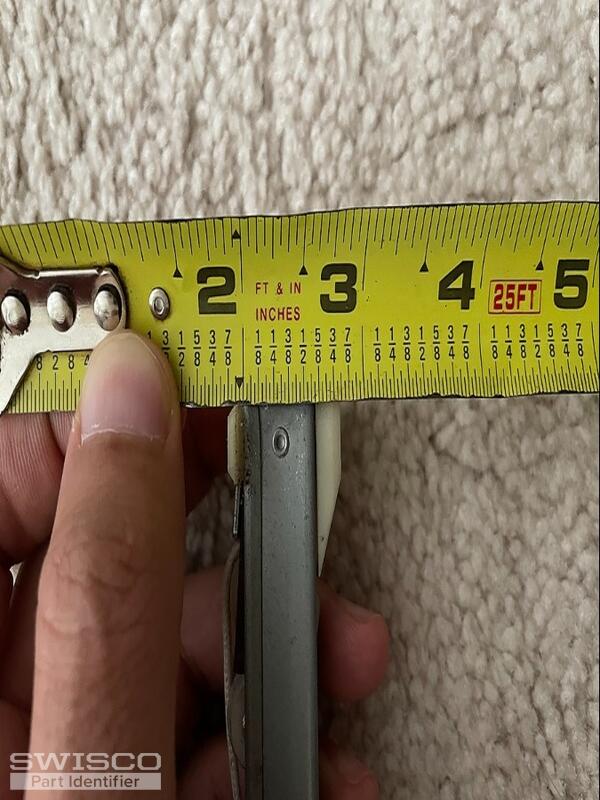

Please see the attached photo.

1 user uploaded images

Emily from SWISCO

May 21, 2024 8:54 am

EXPERT

I'm afraid it's hard to get accurate dimensions from a photo of a tape measure. However, it looks like it may be less than 1". We have the 15-029 shoe but this measures 7/8" deep. Can you confirm and write out the depth of yours?

Quick Learner from USA

May 21, 2024 7:15 pm

Correct it is 7/8" deep.

Emily from SWISCO

May 23, 2024 11:01 am

EXPERT

Thank you kindly for confirming! I'm going to email you a purchase link for (6) 28-1/2" long balances with the 19-005 top fitting, 15-029 7/8" deep shoe, and 28305 stamp. You can use this to place an order on our website.

I'll be here if you have any questions!
