Replace drawer slides

Quick Learner from Barryville NY

Drawer slide has an NL CO stamped on end.see photo.

Slide is 21".

From a Quakermaid cabinet. Probably 1968

3 user uploaded images
6 Replies
Tom
Tom from SWISCO
SWISCO
Expert

We unfortunately don't have a replacement drawer slide that matches this design. I think it's just a little too old for us to supply.

Would you be able to just replace the wheel, or does the whole slide have to go? If you can get away with just replacing the wheel, let me know its diameter and thickness and I can check our inventory for a comparable size.

Quick Learner from Barryville NY

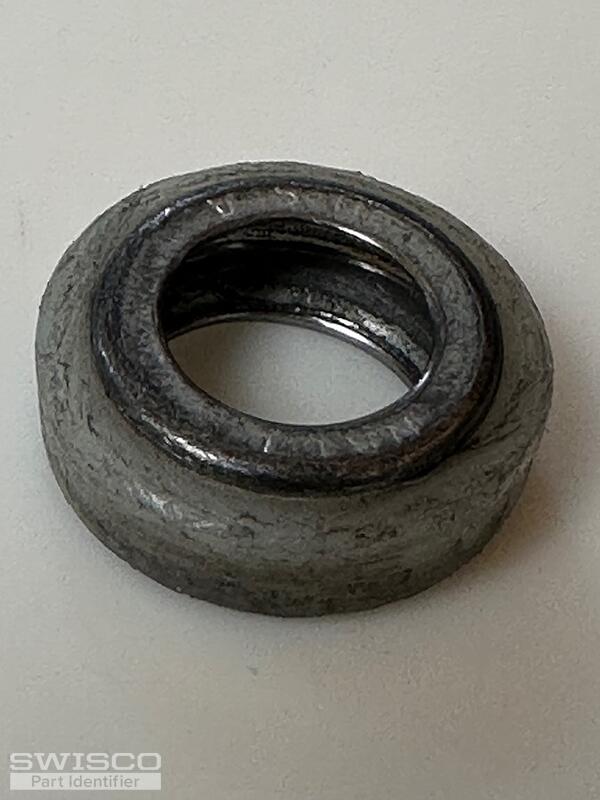

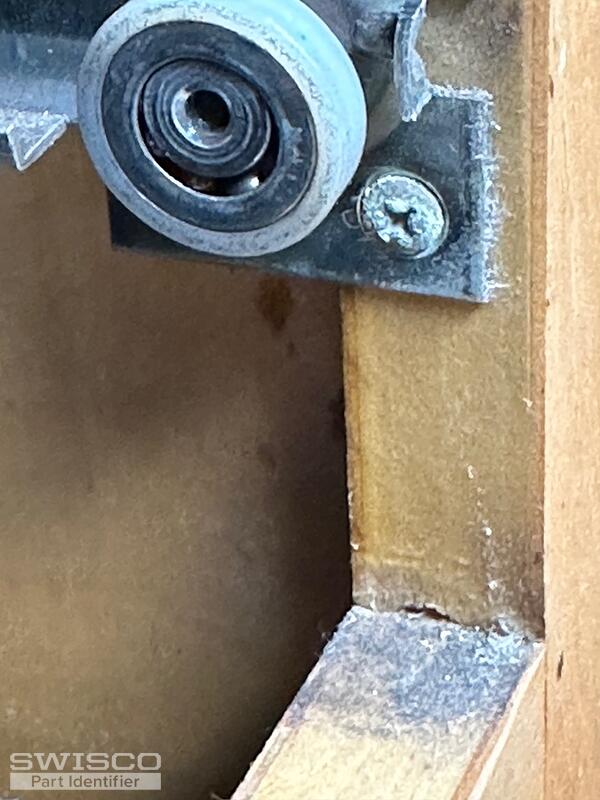

Thanks for your reply,the wheel is about 1". 3/8 thick.
The bearing are out of it too.

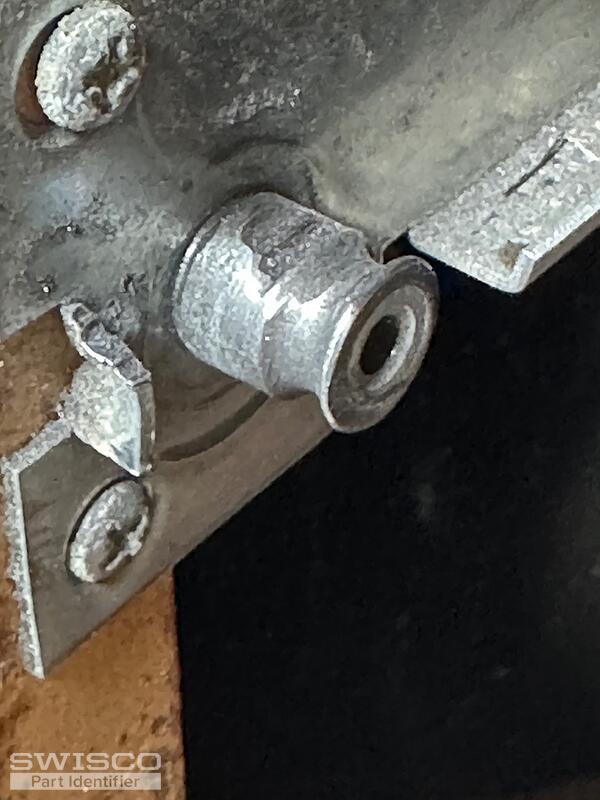

How can you replace ?Rivets are holding the wheels on.
3 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thank you. I would say our best option here is going to be the 32-039. This is 1" in diameter but only 1/4" thick. That's fairly skinny compared to your original roller, unfortunately, but we don't have anything in 1" that is as thick as you need it to be.

As for installation, that's going to be tricky. You'll have to see if the inner diameter of the 32-039 wheel will snap over the existing rivet. It's not a guarantee but I think it's going to be your best bet.

Side view of 32-039
Side view of 32-039

Profile view of 32-039
Profile view of 32-039

View of 32-039 disassembled
View of 32-039 disassembled

Quick Learner from Barryville NY
I don't think that will work.
You don't have newer design drawer slides? I don't mind changing all of it if you have 21" ?
By the thanks for all your input Tom!
Tom
Tom from SWISCO
SWISCO
Expert

We do have more modern self-closing track kits that may work for you, such as our 32-061. However the design is still very different and it doesn't quite mount the same way. You would additionally need a new 32-089 back socket to plug into at the back wall of the cabinet, where yours currently mounts directly at that 90 degree bend.

Note that the 32-061 is also 21-5/8", which is a bit longer than your current size. A better option might be our 2-060. This is only 19-5/8", but you can make up those missing inches with the length of the 32-089  back plate. Otherwise you could just trim the 32-061 lengths to size with a hacksaw.

It's not ideal, and I can't guarantee that they'll work, but they may at least be worth considering at this stage.
