Replace old bifold door tracks

Quick Learner from USA
Feb 16, 2022 1:37 pm
I am interested in purchasing new tracks for my mirrored bifold closet doors.

The opening is 5 inches deep; 80 inches high and 32 1/2 inches wide. My current bottom track is 1 inch high. I need a track that is 1/2 inch high.

My current doors measure 78 high. I have 2 panels each measuring 15 3/4 wide.

Do you have tracks that will fit my need?

Hoping to hear from you soon.

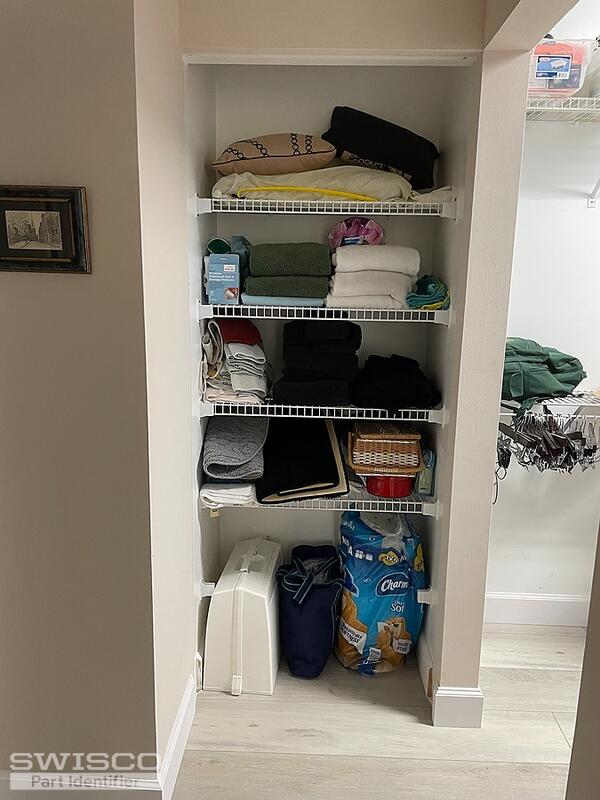

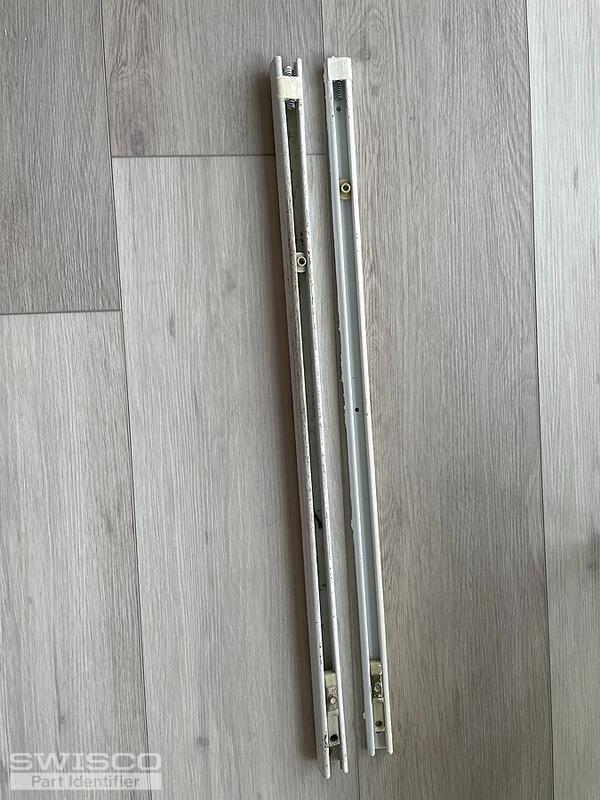

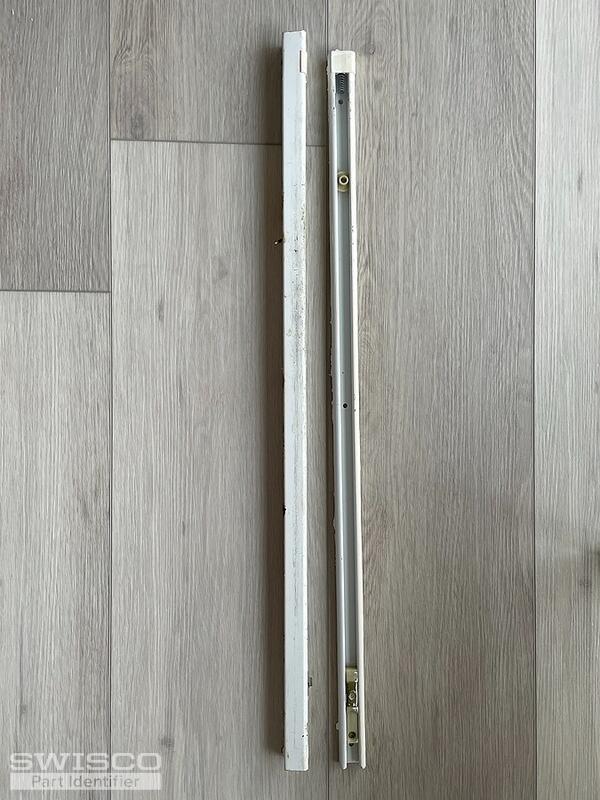

IMG_5719 IMG_5716 IMG_5718
3 user uploaded images
1 Replies
+ Add a Comment
Paul
Paul from SWISCO
Feb 17, 2022 10:42 am
SWISCO
EXPERT

We have a closet door track that should work for you. Take a look at the 21-452. The overall length is 36", but can be cut down with a hack saw. It comes with the 21-174 roll guide like yours and accepts 1/4" pin. The 21-175 pivot bracket also accepts 1/4" pin. You might also want the 21-286 to go with the tracks to keep the panels in the close position.

+ Add a Comment
Products and resources found in this discussion
36" Low Profile Track Assembly
36" Low Profile Track Assembly
21-452
$11.25
Pivot Bracket
Pivot Bracket
21-175
$1.97
Snugger
Snugger
21-286
$0.97
Roll Guide
Roll Guide
21-174
$1.20
