Replacement Non-Tilt Channel Balance

Quick Learner

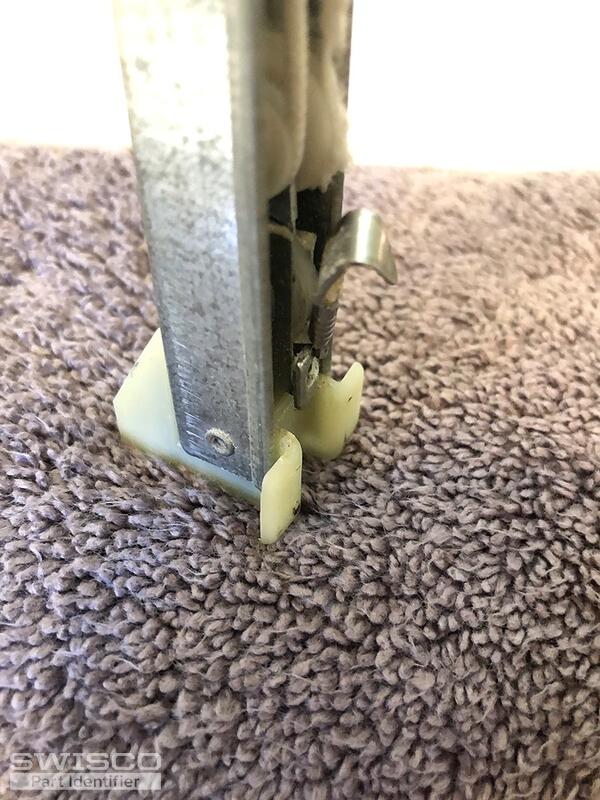

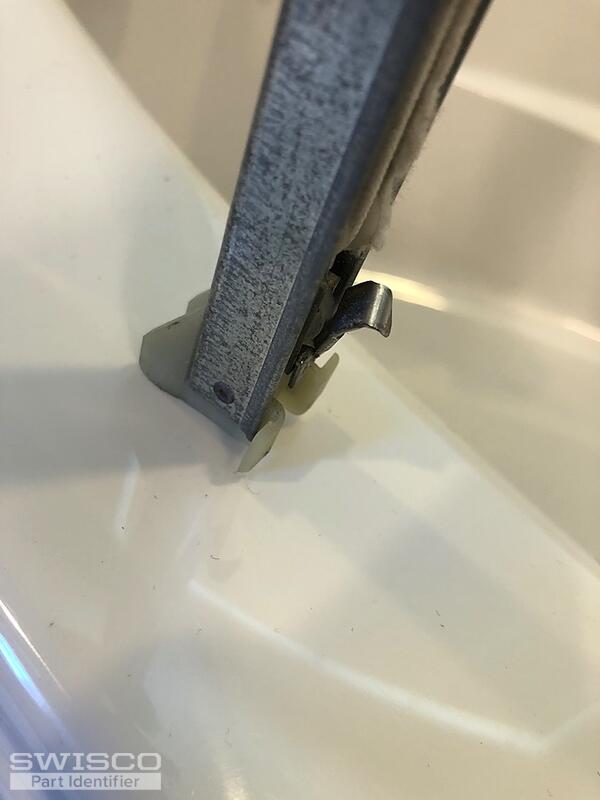

Need help to identify channel non-tilt balancer...

Metal channel size is 15"

Channel width is 1/2"

Stamp "14-3 GD5 CMC 87"

Sash weight is 7.5 lbs.

Thanks,Francisco

5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

With this combination of attachments, you could have either the S380-15 or S385-15 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

Based on your 14-3 stamp you would generally need 1430 spring strength options for your replacement balances but they would be calibrated to support a sash between 10-12 lbs. If you're sure that your sash only weight 7-1/2 pounds, then you'll need 1420 options to support between 6-10 lbs. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
