Replacement Window PIeces

Question

Hello!

These are the parts I need.
So, I need you to give me the number of these pieces so that I don't buy the wrong one.
I will need 10 white pieces from each unit, with the exception of the piece in Photo 5 (4 pieces + screws).
These are the numbers I can see:

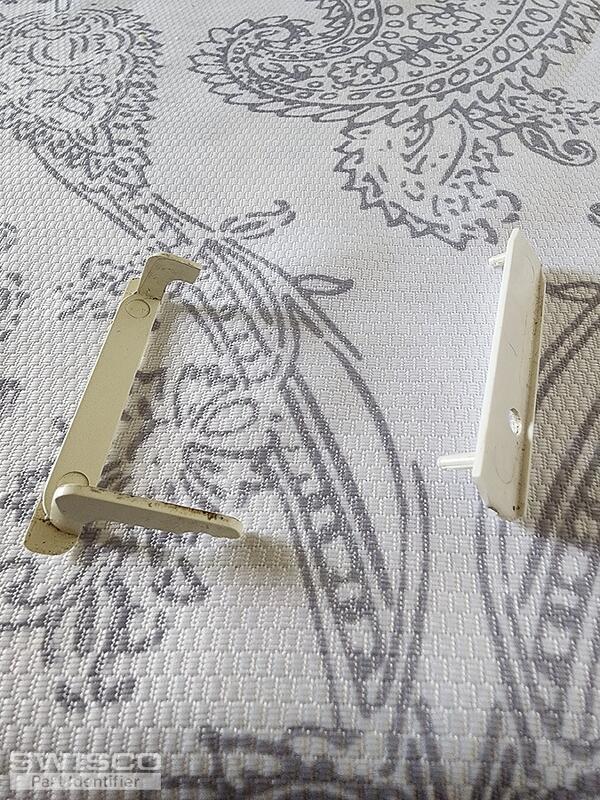

Photo 1:
I 11079 PAT. 4824154. On the other side of the part: 3

Photo 2:
E 11079 PAT. 4824154
On the other side of the piece: 5

Photo 3:
F 375
Pat #5.139.291

Photos 4 and 5: no visible numbers

Another question:
I have a single hung window that does not stay open. It looks like the coil spring is broken. If you can give me an idea of what to do, it will help a lot.

Thanks!

Paul · Accepted Answer

Hello! Looks like you need a vent lock, tilt latch, pivot bar, and then a part that I'm no immediately familiar with. This is the piece shown in your fourth photo above.

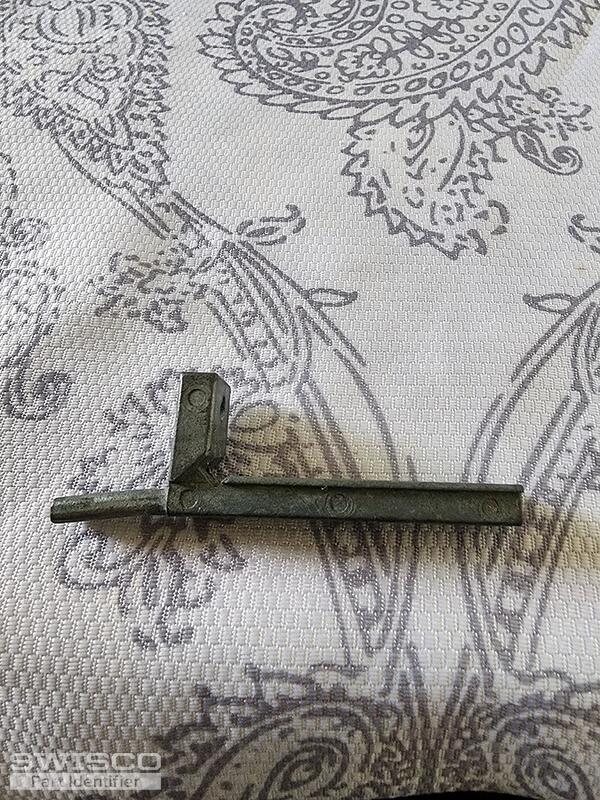

Starting with the vent latch in your first two photos, see our 26-148. For the tilt latch, I recommend the 26-243 and 26-244. Lastly, for the pivot bar, I believe this could be the old 26-353 Certainteed pivot bar. Make sure to review the dimensions and photos for each product to verify that everything matches. If they differ in any way, I need to know how. That counts for both design and measurements.

As for the part in your fourth photo, do you have an undamaged version I can see? Can you also describe its function?

Finally, in regards to your single hung window that won't stay open, it's almost certainly an issue with the coil spring. We sell a ton of different varieties, so I will need photos of your old assembly in order to make a recommendation. Seeing it in undamaged condition and removed from the window would be ideal. I specifically need to see the pivot shoe that the spring connects to; that would more or less tell me everything else needed for the assembly.
