Replacement balance assembly and pivot shoe

Question

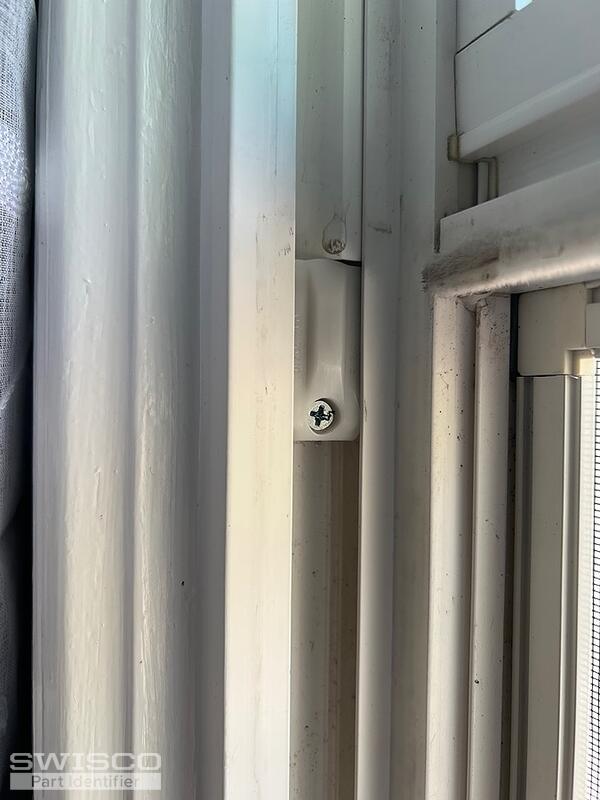

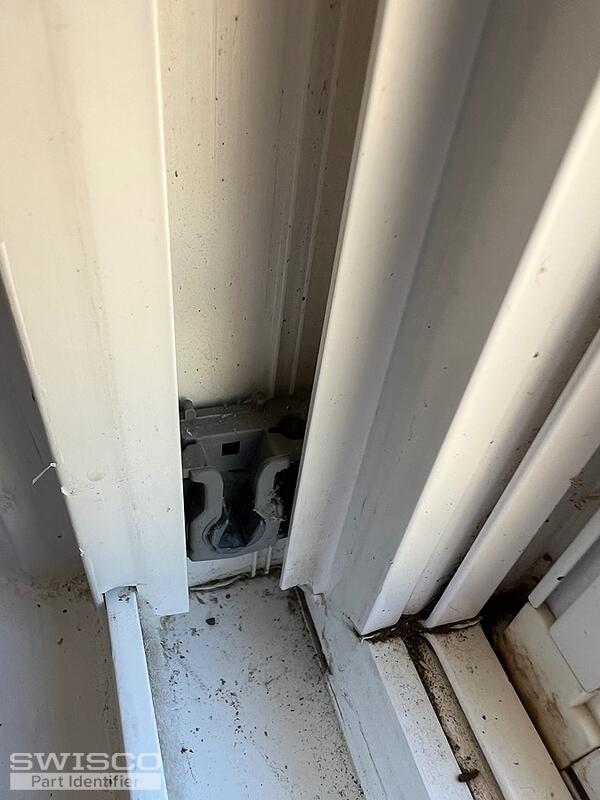

I need to find replacement parts for this broken balance assembly/pivot shoe. I do not know the history of this window but based on the label, it appears to be a Reliabilt 3900 series from Lowes, "double hung" tilt window (58" tall x 28"n wide) - top sash is fixed, only the bottom moves and tllts). First two pictures show the working side pivot shoe and coil support/spring(?). Second two pictures show the pieces of the broken assembly. Can you recommend replacement parts and instructions for replacing.  Thanks

Emily · Accepted Answer

Hello there!

Thanks for reaching out to us. The pivot shoe shown here appears to be the 15-191 which uses the S160 coil springs. The first video below will go over how to remove your hardware by making a cut out in the window track. The second video demonstrates the replacement process.

I'll be here if you have any questions!
