Replacement crank mechanism

Quick Learner from Lockport, IL

Sep 10, 2023 8:15 pm

Hello,

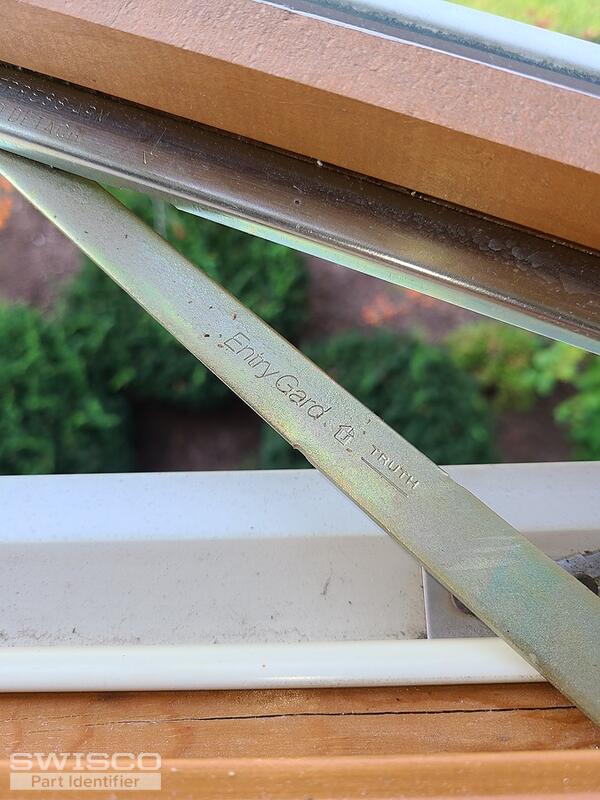

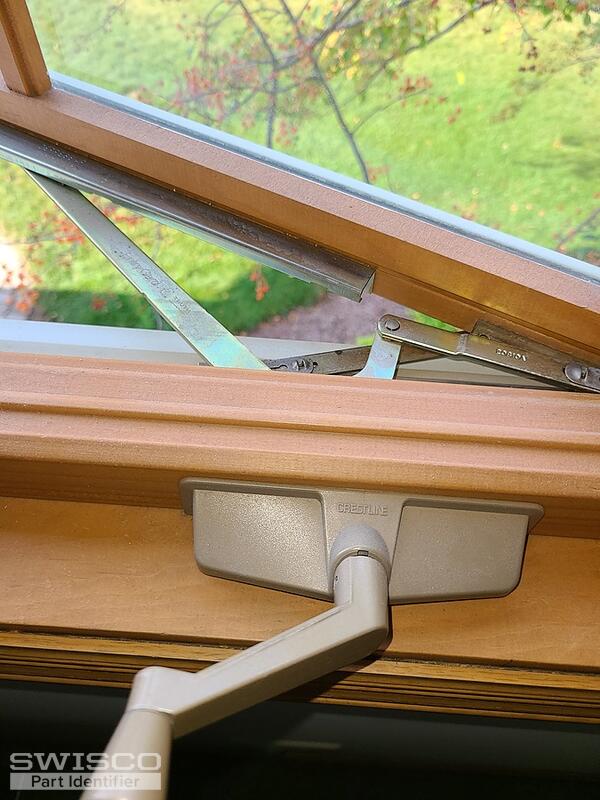

I am in need of a few Crestline crank mechanisms. The windows open but will not close. The arm length is about 8-9 inches.

Thank you

Mark

5 user uploaded images

7 Replies

+ Add a Comment

Bob from SWISCO

Sep 10, 2023 11:13 pm

EXPERT

Thanks for posting, Mark. This might be our 39-031 and 39-032 Dual Arm Operators. Just make sure the dimensions listed below match your existing mechanisms. Let me know if anything differs, in any way. For a new handle and cover, use our 39-107 and 39-114L, sold separately.

Dimensions for 39-031

Quick Learner from Lockport, IL

Sep 11, 2023 12:48 am

Thank you!!

Bob from SWISCO

Sep 12, 2023 11:49 am

EXPERT

You're welcome! Please feel free to reach out if you had any other questions. We're always here to help.

Quick Learner from Lockport, IL

Sep 20, 2023 6:04 pm

Hello again,

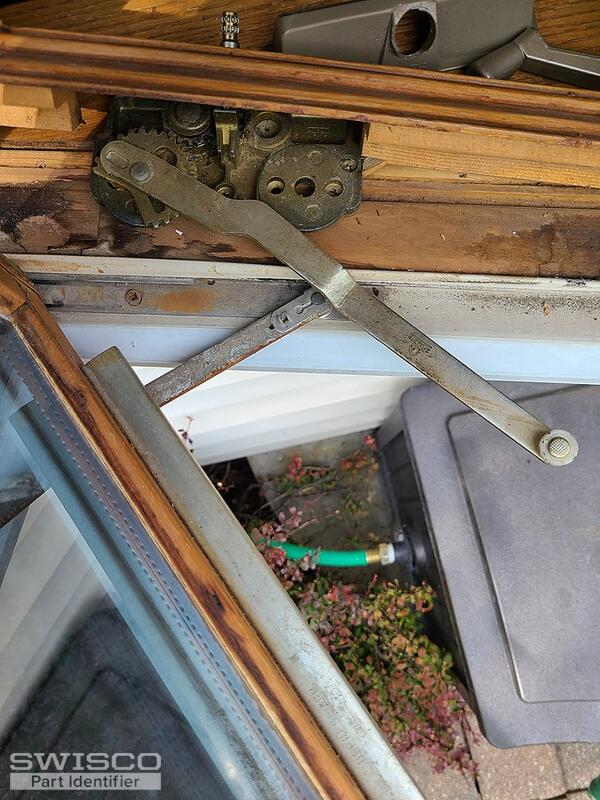

I am in need of another crank this time for a smaller window. The long arm measures about 9.5 to 9.75 inches and the short arm measures about 5.5 inches

1 user uploaded images

Bob from SWISCO

Sep 21, 2023 8:53 am

EXPERT

Hello again! This operator looks like it could be a match for our 39-216. We also sell the 39-217 for the opposite side, if you needed that. Both are compatible with the same 39-107 cover and 39-114L handle that we discussed previously, but you can of course also just reuse the originals as long as they're in good condition.

Please look it over and let me know if you had any questions!
