Replacement operator and snap in handle

A quick learner from New Jersey, USA says:
July 24, 2022
need interior mechanism and other part of lock handle that snaps in..and front cover..one from depot don't fit
Thumbnail of the uploaded file named 20220723_130811.jpg
Thumbnail of the uploaded file named 20220723_130944.jpg
Thumbnail of the uploaded file named 20220723_131020.jpg
Profile picture of Tom
Tom from SWISCO responded:
July 29, 2022

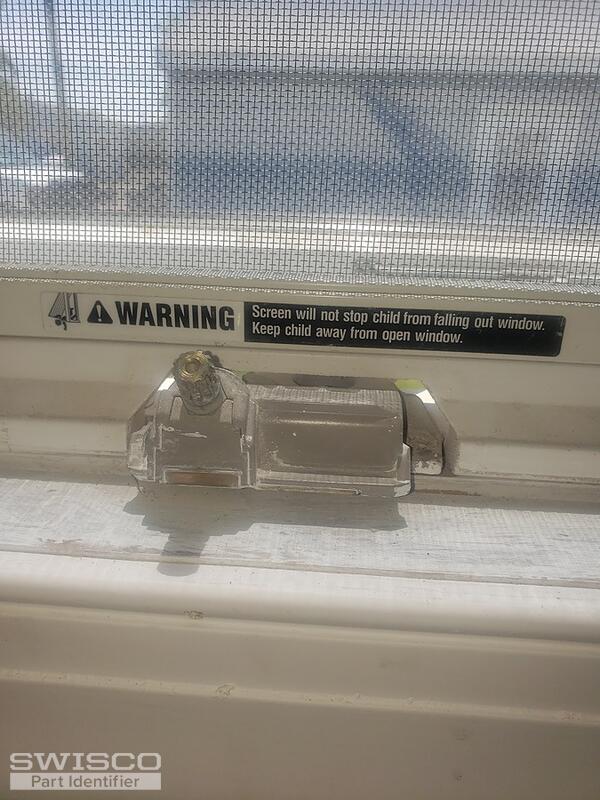

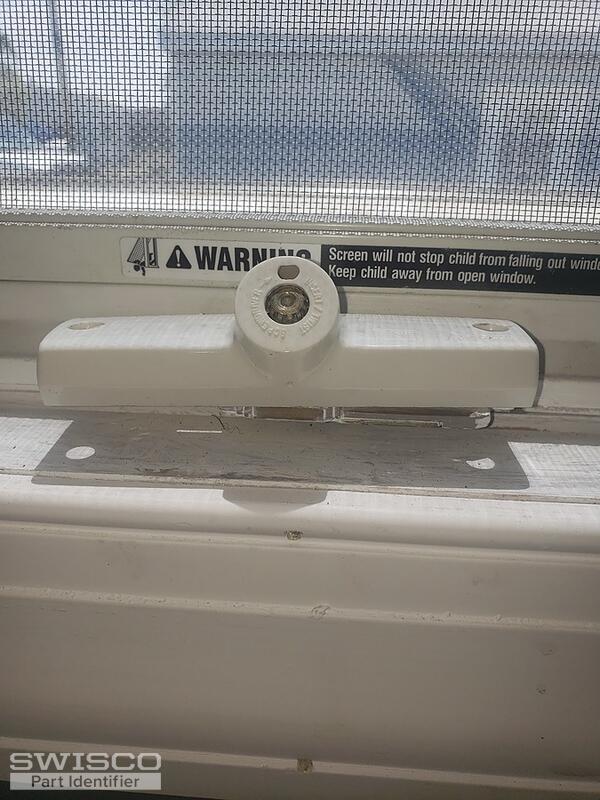

Hello! Looks like you tried to use the 39-154 cover on your operator. While this is an Andersen brand part, I think a better match would have been our 39-152. Look it over and see if you agree.

It also looks like you need the lock escutcheon. Since this is Andersen, you may be looking for our 39-290. Just note that this is an educated guess; without seeing the original, I can't be 100% sure.
A quick learner from New Jersey, USA says:
July 29, 2022

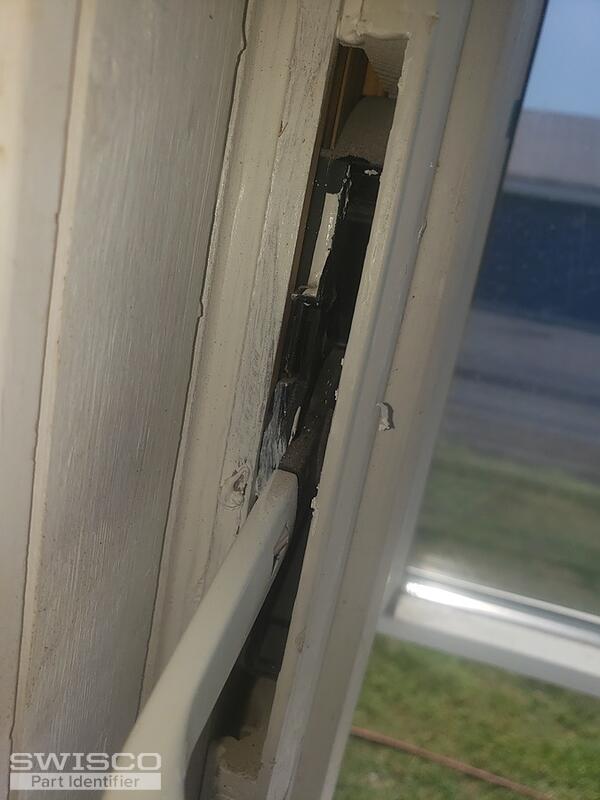

tom I need the inside guts of the locking mechanism and the arm you don't see that snaps into the one you see
Profile picture of Tom
Tom from SWISCO responded:
August 1, 2022

Thanks for clarifying. The other components related to the 39-290 are the 39-291 and 38-146. You can also see these on the 39-290 store page under "Related Item(s)" for future reference.

This is assuming that my initial guess was correct. The only way you can confirm is to remove the old hardware and compare it to the photos and information we show for each listed product.
Andersen Classic Operator Cover
Andersen Classic Operator Cover
39-152
$6.17
Andersen Lock Bezel, 5-7/8"
Andersen Lock Bezel, 5-7/8"
39-290
$6.05
Andersen Single Lock
Andersen Single Lock
38-146
$12.17
Andersen Lock Handle
Andersen Lock Handle
39-291
$5.97
