Replacement sash window mechanism

Quick Learner from Sacramento
May 14, 2024 12:23 pm

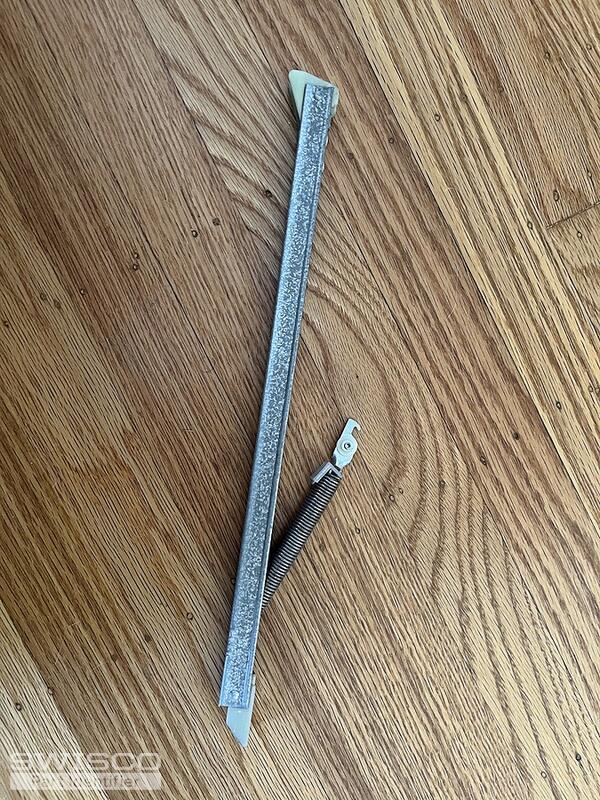

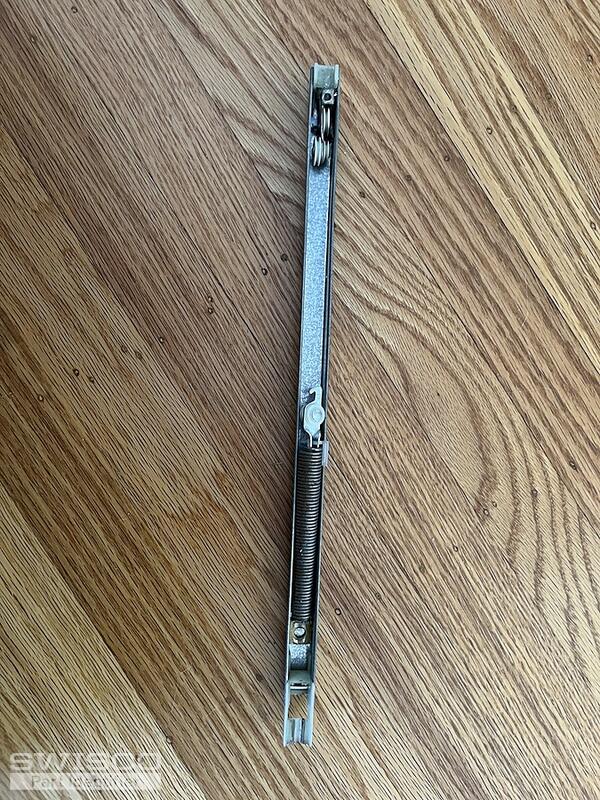

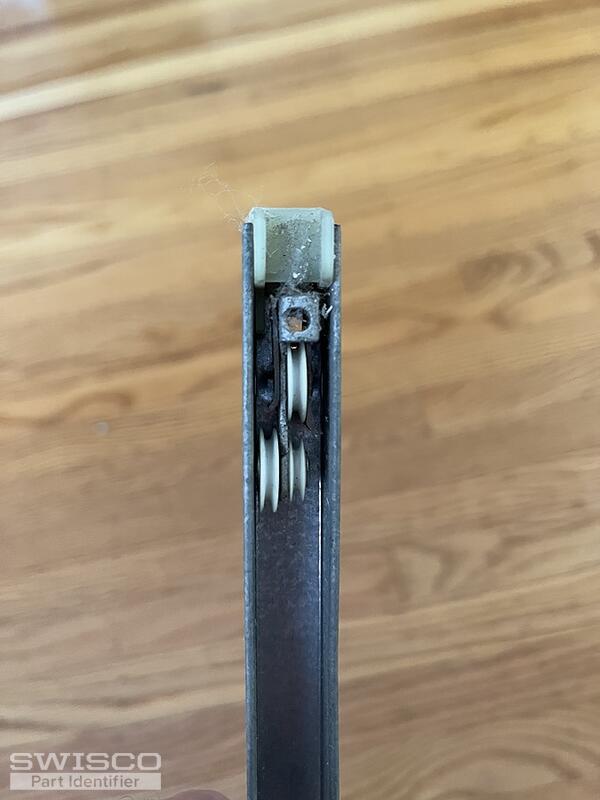

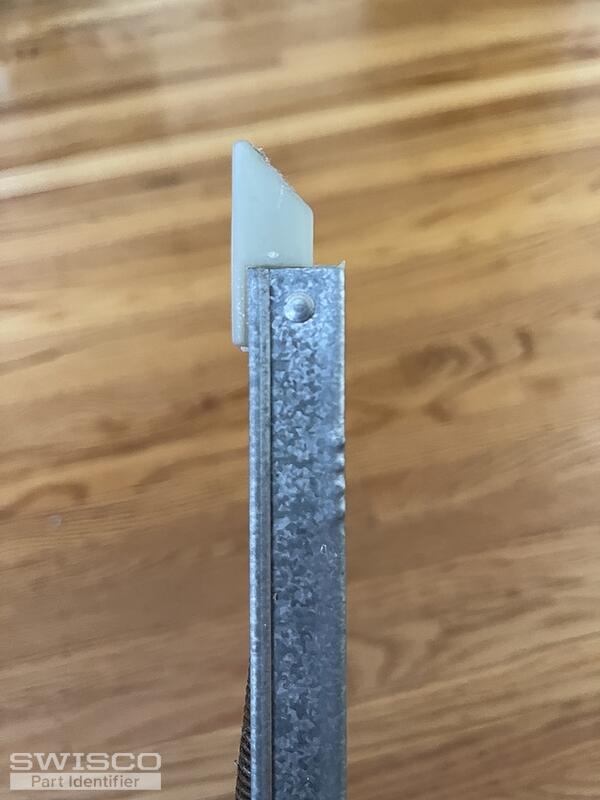

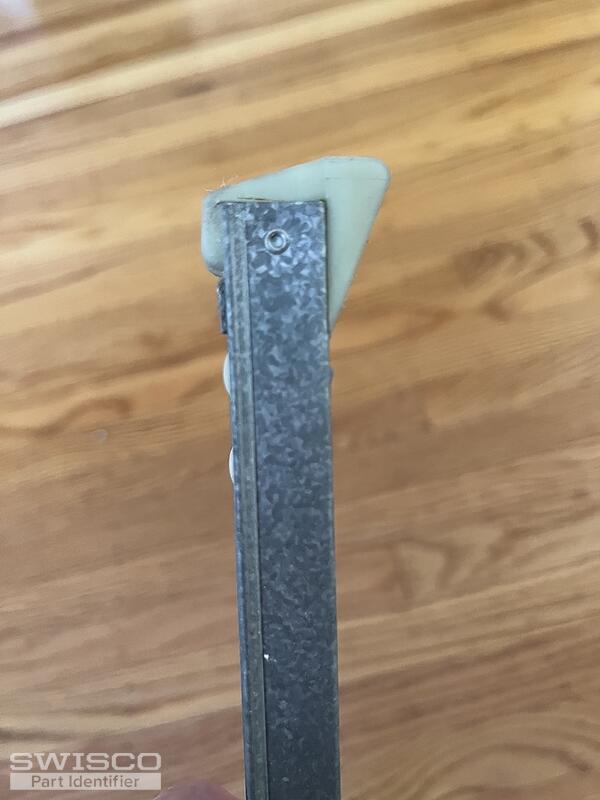

13" length of metal channel.
5/8" wide metal channel.
Stamped 12 4 LP CALDWELL

Thanks!
IMG_2087 IMG_2088 IMG_2091 IMG_2093 IMG_2094
5 user uploaded images
1 Replies
+ Add a Comment
Jasmine
Jasmine from SWISCO
May 15, 2024 4:04 pm
SWISCO
EXPERT

Thanks for posting! It looks like you have either the S351-13 with a 1" shoe or the S390-13 with a 1-1/8" shoe. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe.

You'll need to select the 1240 option.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
