Requesting Window Parts

A home owner from Niceville, FL says:

Hi,

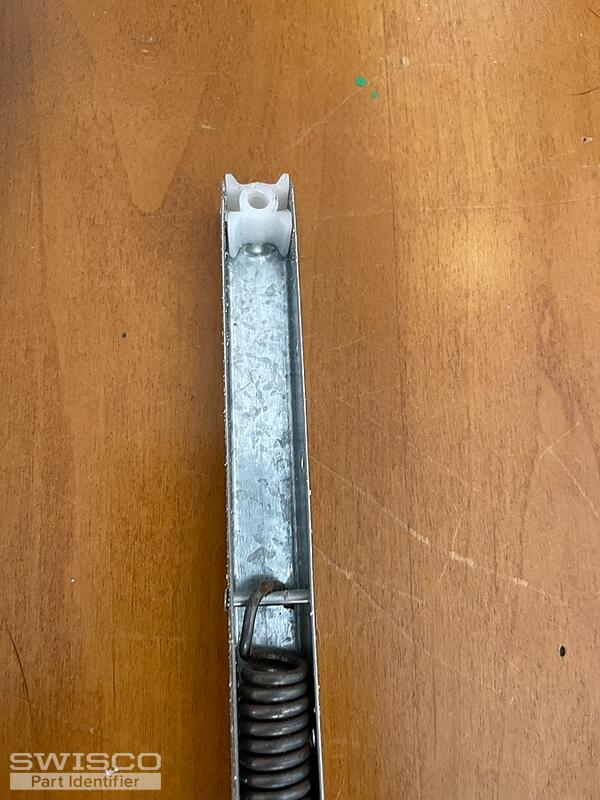

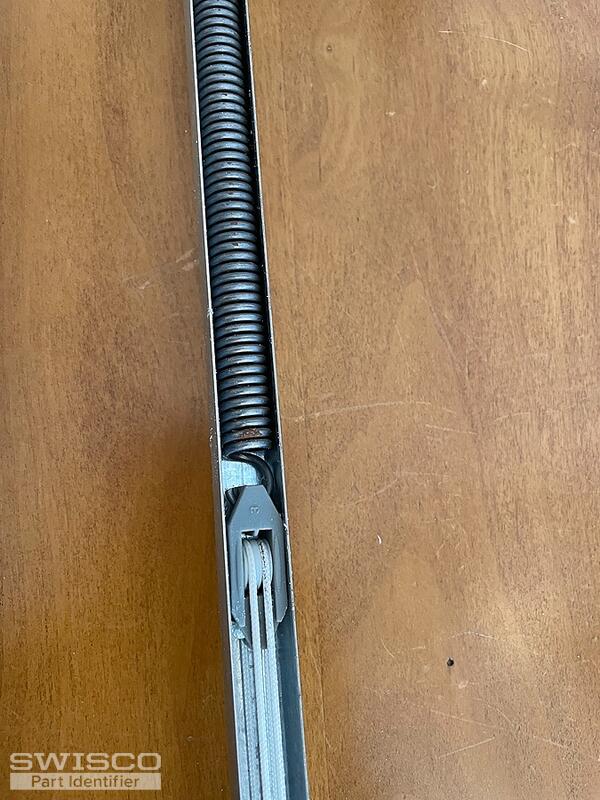

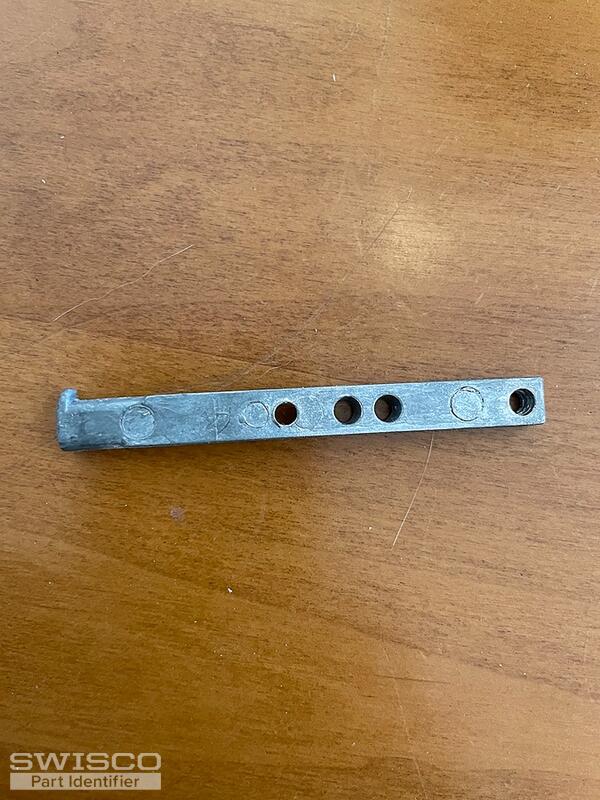

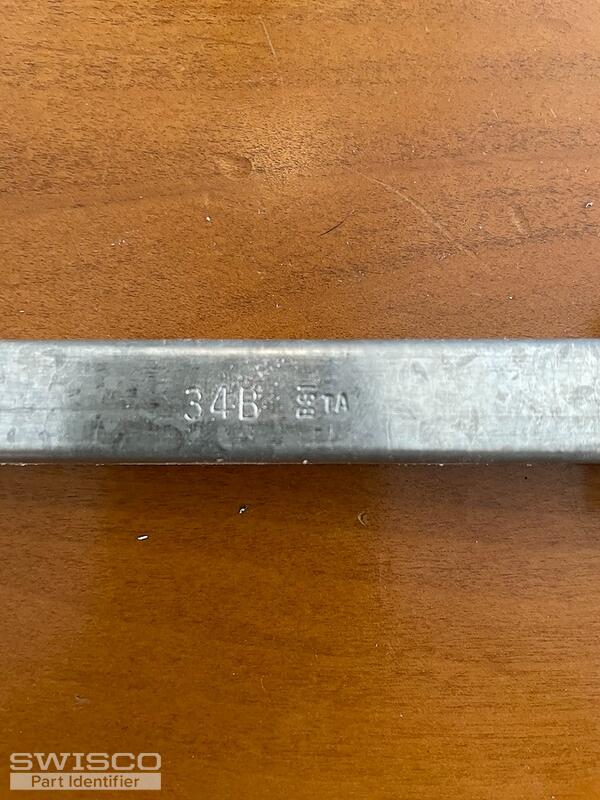

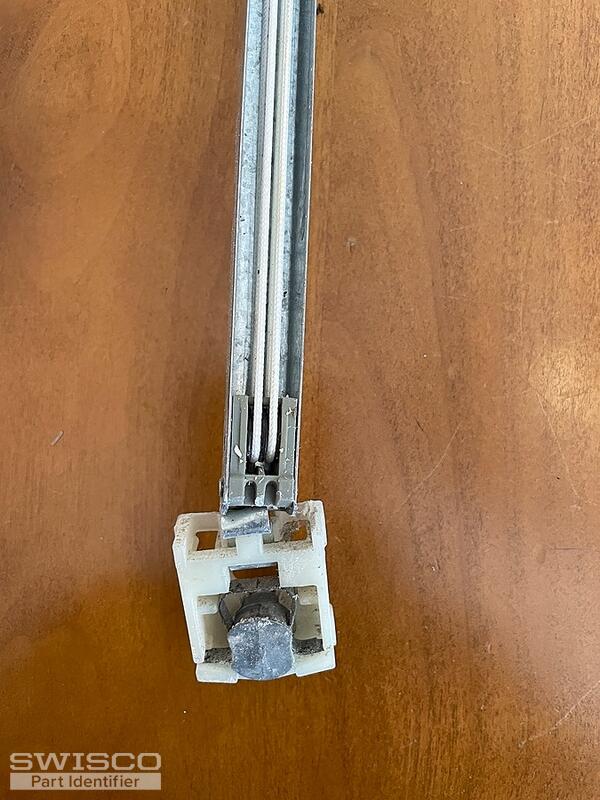

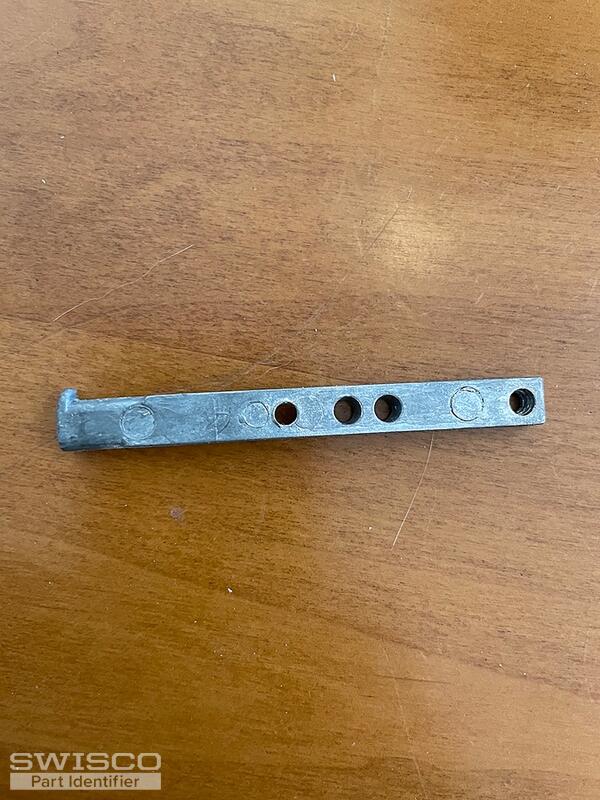

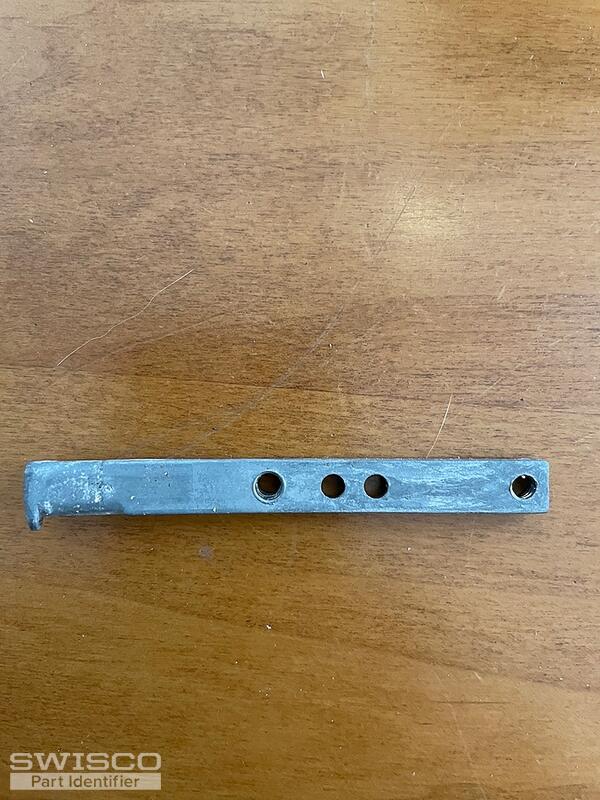

Looking for the channels (34B), pivot lock shoes, and the pivot bars. Photos are attached.

Thank you,

Steven

Thumbnail of the uploaded file named image_67134209.JPG
Thumbnail of the uploaded file named image_67160833.JPG
Thumbnail of the uploaded file named image_67136257.JPG
Thumbnail of the uploaded file named image_67183873.JPG
Thumbnail of the uploaded file named image_67153409.JPG
Profile picture of Casey
Casey from SWISCO responded:

Hello

Take a look and compare the specifications of the 26-241 pivot bar to yours.

The base of your balance appears to be the Series 770 but the cord fitting looks different than the one that comes with our stock balance. I suspect yours may use the 15-170 but we'll need to see a few more photos of your clip from different angles to confirm.

If that is the case, you would also need the 15-169 pivot shoe. Thank you.

Alternate image for 26-241
Alternate image for 26-241

Alternate image for 15-169
Alternate image for 15-169

A home owner from Niceville, FL says:
Hi Casey,

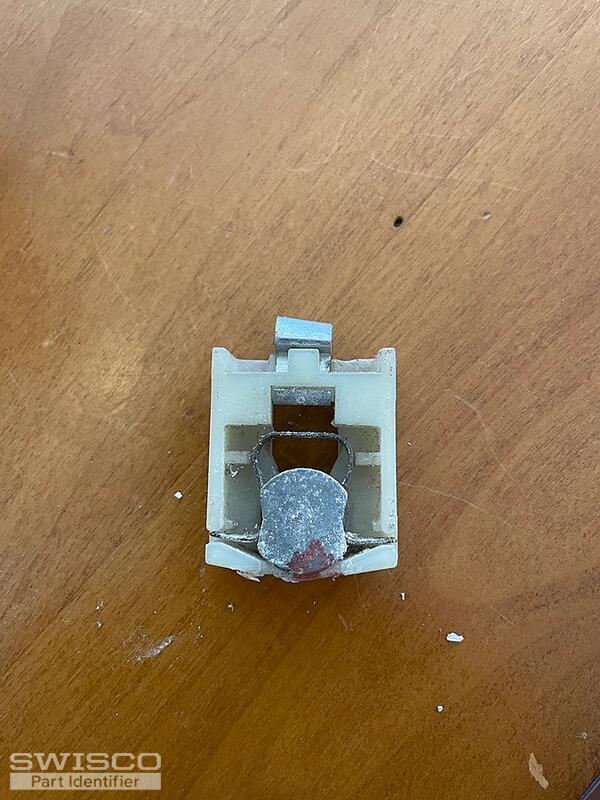

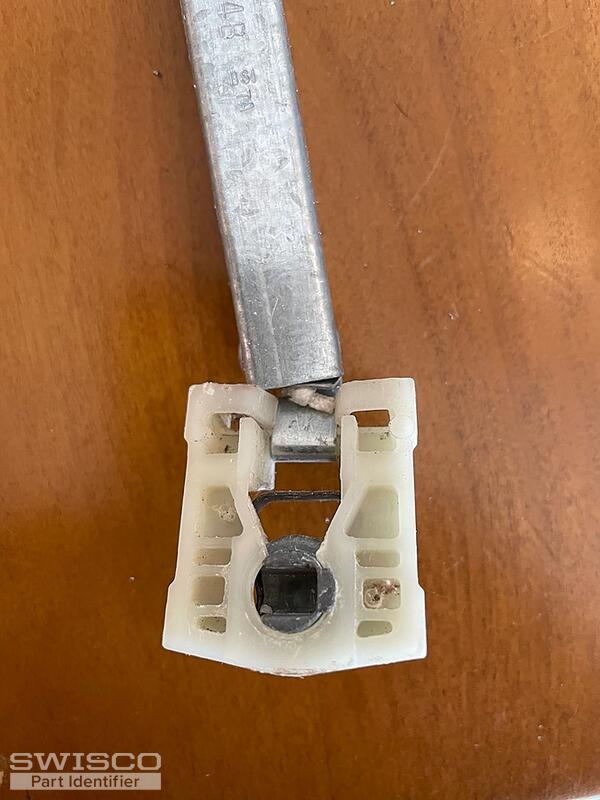

Do these photos help? Let me know if you need more angles.

Steven
Thumbnail of the uploaded file named 9145AAC7-0B18-4810-AEAF-4A56D295F35E.jpeg
Thumbnail of the uploaded file named B418FB65-D07E-4FEC-A195-CA3ED60F6984.jpeg
Thumbnail of the uploaded file named 9F77E29A-A992-4820-A25D-586EC73D0D27.jpeg
Thumbnail of the uploaded file named 29E54F1F-B625-49EF-83A0-CF5AF6FB6424.jpeg
Thumbnail of the uploaded file named B07AC0B5-DD8D-4728-8CDF-A5C121186BE7.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Thanks for getting back to us. It's tough to identify your clip while it is still attached to the top of the pivot shoe. If you could remove it and show us a photo to compare to the n=image below, we can go from there.

Dimensions for 15-170
Dimensions for 15-170

A home owner from Niceville, FL says:

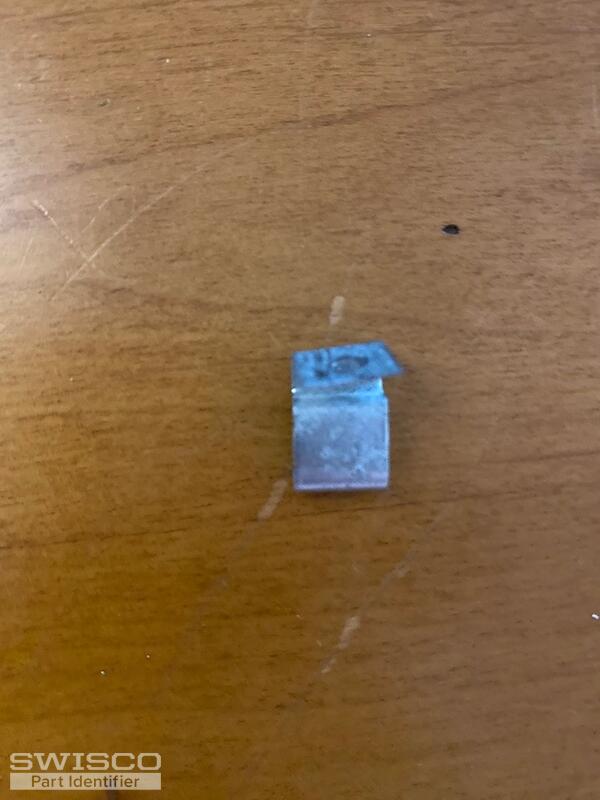

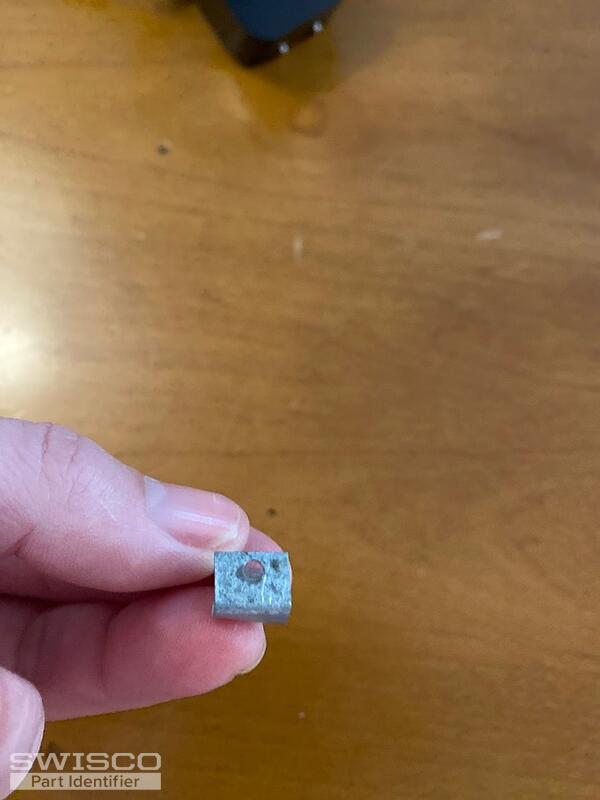

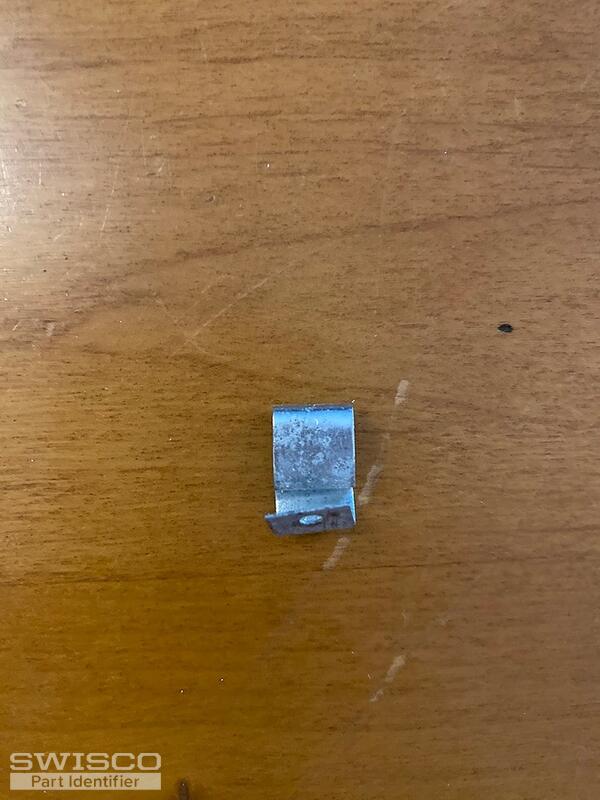

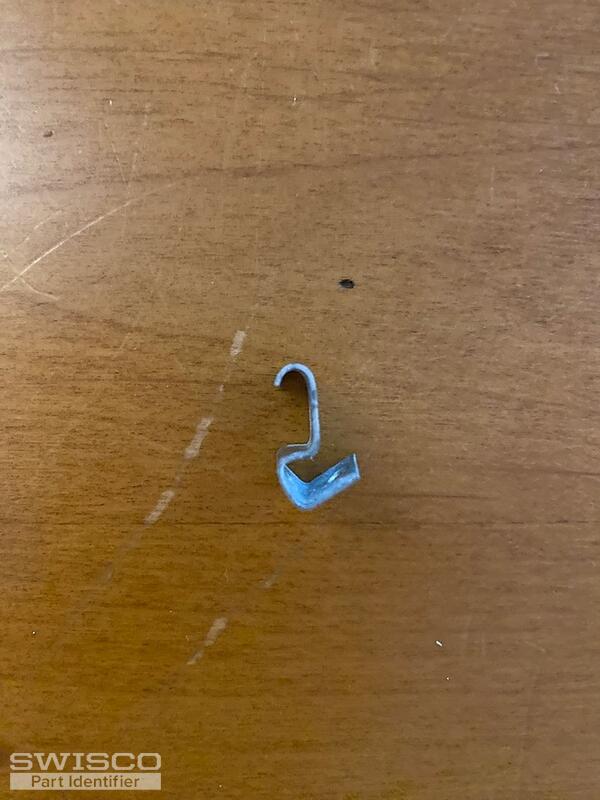

Hopefully theses photos work. Thank you!

Steve
Thumbnail of the uploaded file named FC876081-85DF-490F-A3DD-31F5F8679AF0.jpeg
Thumbnail of the uploaded file named C379FB34-8148-4523-BB88-E3A2D8434DAA.jpeg
Thumbnail of the uploaded file named 8244E3E6-A5AF-4CB9-94C8-89CF3A643F36.jpeg
Thumbnail of the uploaded file named 33E2BD3F-04B8-4413-9154-6752C4F01439.jpeg
Profile picture of Casey
Casey from SWISCO responded:

These are perfect! Your clip does look like a match to the 15-170, which we can attach to the S770 balance through a custom order. We'll just need you to confirm the number of balances that you need, with the minimum being two, to send you a quote.

A home owner from Niceville, FL says:
That's great news?I need 2 per part.

Thank you.
Profile picture of Casey
Casey from SWISCO responded:

Great, we just sent over an order link and price quote for the balances you requested. Please note that you would add the pivot shoe and pivot bar to your cart separately since they are stock items. Take a look and let us know if you need anything else. Thank you!
