Sash Cam

A quick learner from Morgan hill, CA says:
I need 2 sash cams for my Milgard windows. The part number is M513.
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. I'm afraid we don't have an exact match for this Top Sash Guide. The closest we've ever been able to find is our 18-009. Review the dimensions below and see if you think this could work as a substitute for you.

Detail of 18-009
Detail of 18-009
Side view of 18-009
Side view of 18-009

A quick learner from Morgan hill, CA says:
I think I could trim the 11/16 guide to make it fit to 5/8ths. I also need the balancer. Here are the photos. The numbers on the balancer read 23 5 GS Caldwell. The window pane is 22.5 lbs. can you provide the part number for the balancer? Thanks

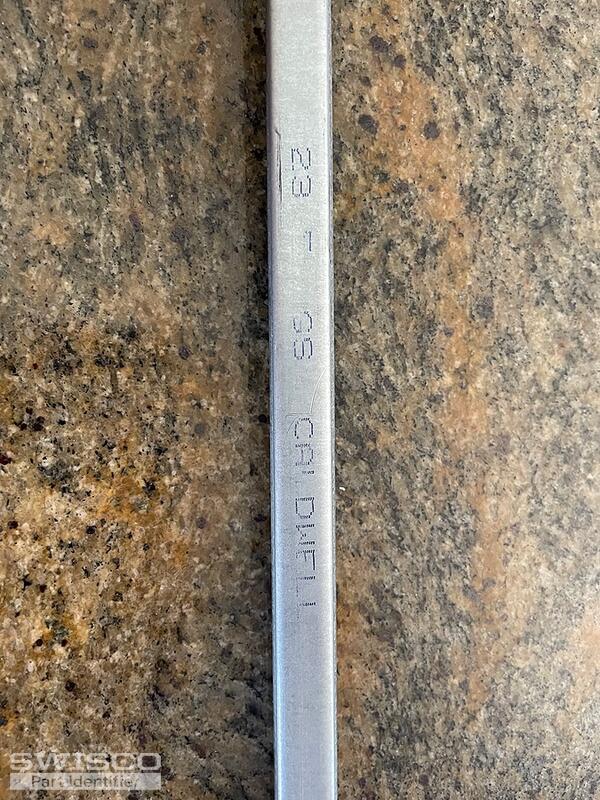

Thumbnail of the uploaded file named IMG_1008.jpeg

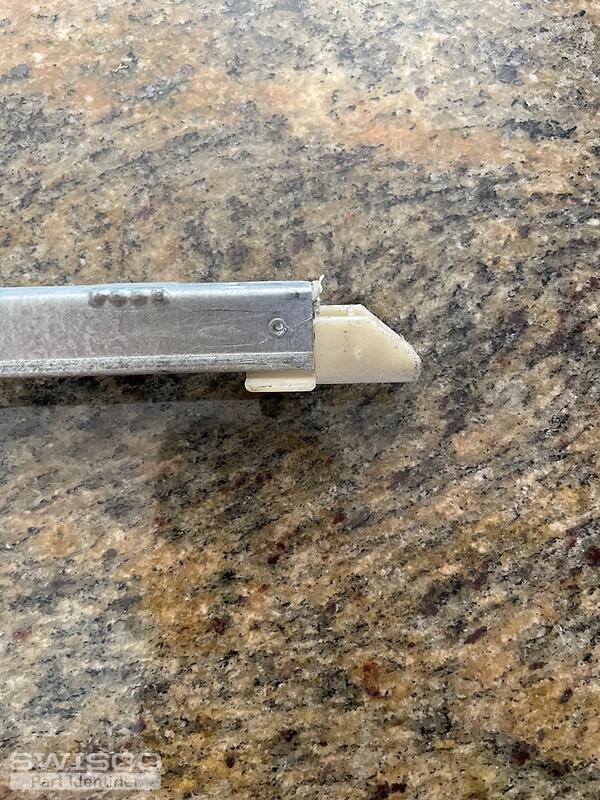

Thumbnail of the uploaded file named IMG_1013.jpeg

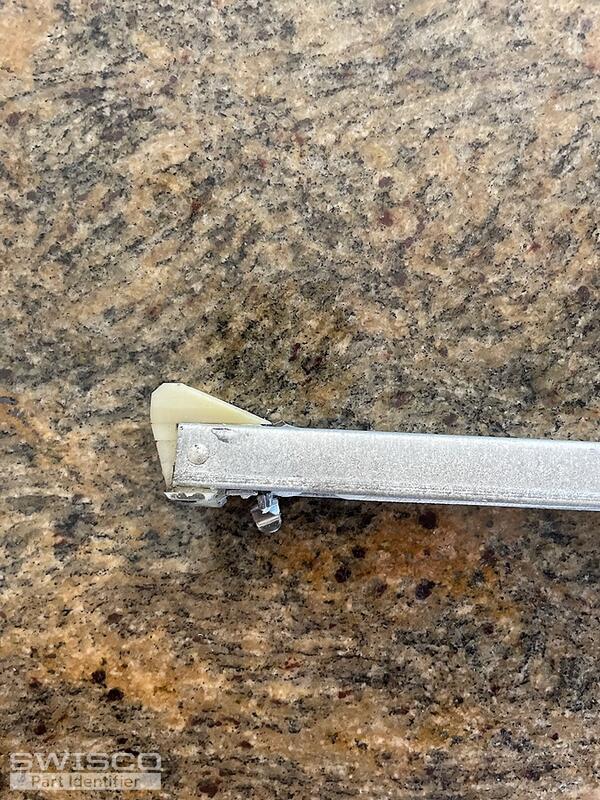

Thumbnail of the uploaded file named IMG_1012.jpeg

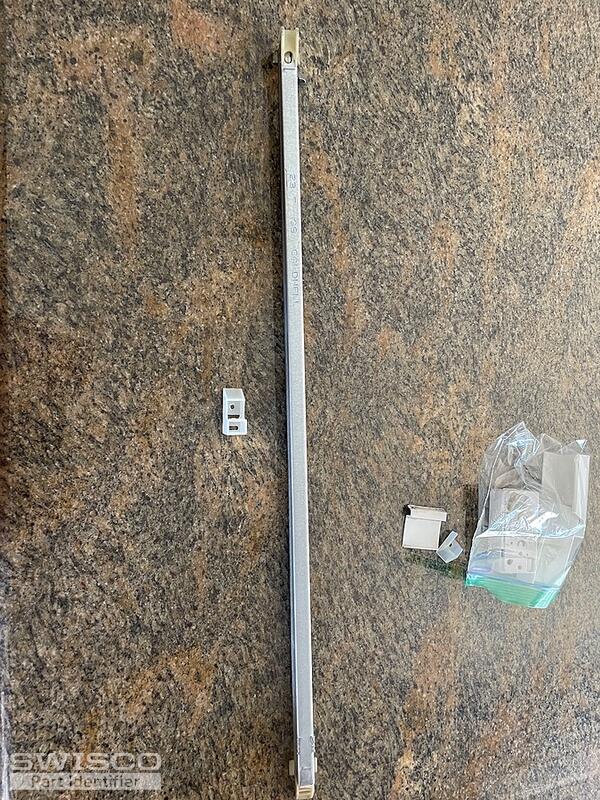

Thumbnail of the uploaded file named IMG_1007.jpeg
Profile picture of Bob
Bob from SWISCO responded:

This balance looks like either our S380-24 or S385-24. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the illustration below for reference. Compare both balances with your old hardware to see what matches best. In either case, go with 2350 for a new stamp option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
