Screen corners

Handy Person from Kettering OH
Dec 7, 2023 2:47 pm

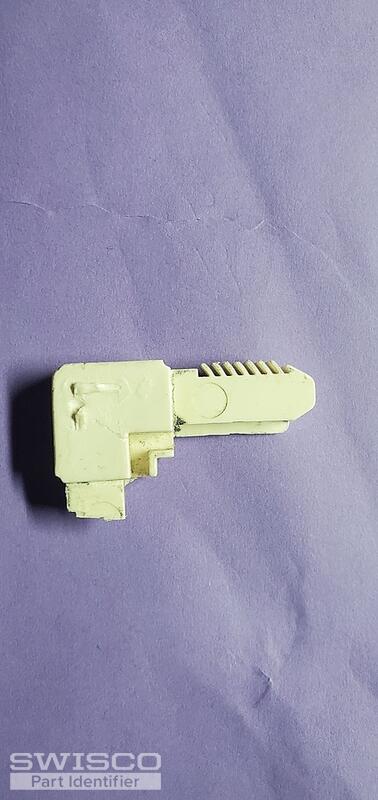

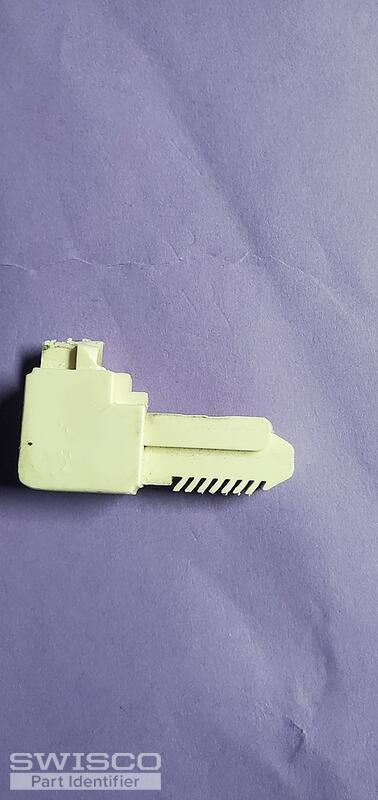

No markings on these corners
a5 a4 a3 a2 a1
5 user uploaded images
1 Replies
Tom
Tom from SWISCO
Dec 8, 2023 2:27 pm
SWISCO
EXPERT

We may be able to supply a replacement for this corner, though there are currently a few contenders. The first potential replacement is our 95-270, designed for 3/8" thick frames. I'll share dimensions for it below so that you may review.

The other two contenders are our 95-262 and 95-263, both for a 5/16" thick frame. These two parts are actually identical except for the fact that the 95-263 has a stop built into the corner. I can just about make out the outline of a stop on your own corner, which presumably wore away, but I'm admittedly just guessing.

Your first step is to check the size of your screen, and then the dimensions below. This will be the best way to determine the proper replacement option for this corner.

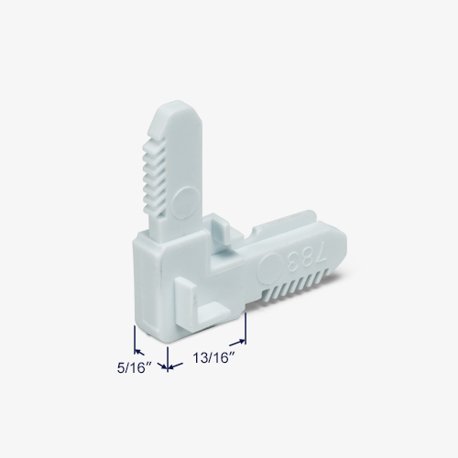

Dimensions for 95-270
Dimensions for 95-270

Dimensions for 95-262
Dimensions for 95-262

Dimensions for 95-263
Dimensions for 95-263
