Ali ADW-8 ASTM 2190-ARG patio slider key and latch

A quick learner says:
August 21, 2023

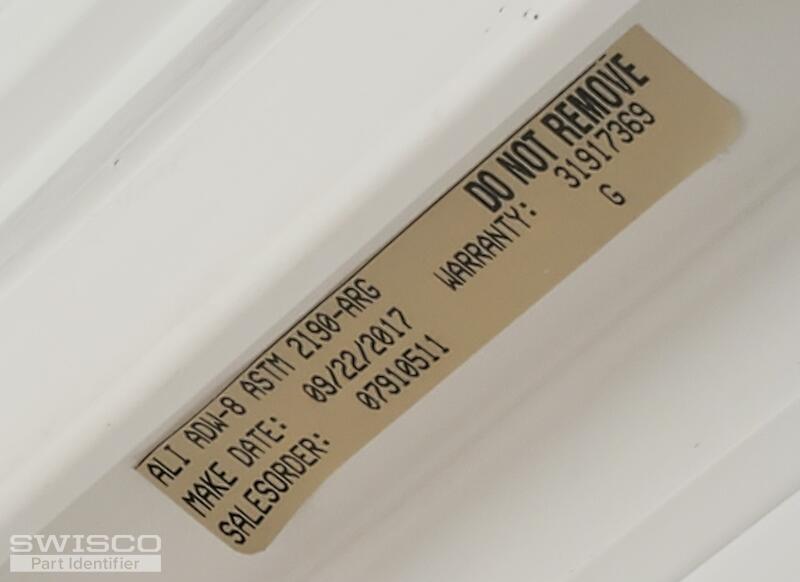

I have a sliding patio door. Ali-ADW-8 ASTM2190-Arg my issues was when moved in never had key to lock.My daughter was trying to fix with a new handle kit from Lowes and it did not fit or work. In the process she lost the latch that was in the slider. I would like a kit with handles, key, and the latch that fell into door to fix this.
Thumbnail of the uploaded file named 20230809_102539.jpg
Profile picture of Casey
Casey from SWISCO responded:
August 22, 2023

Hello,

We'd be happy to help but, unfortunately, the manufacturer sticker does not tell us the hardware that will work for your door. To get started, we would need to see photos of both handles and confirm the exact distance between the center of the installation holes. We'll also need to see the cut-out where the mortise lock that feel inside the door installs. Thank you!

A quick learner says:
August 22, 2023

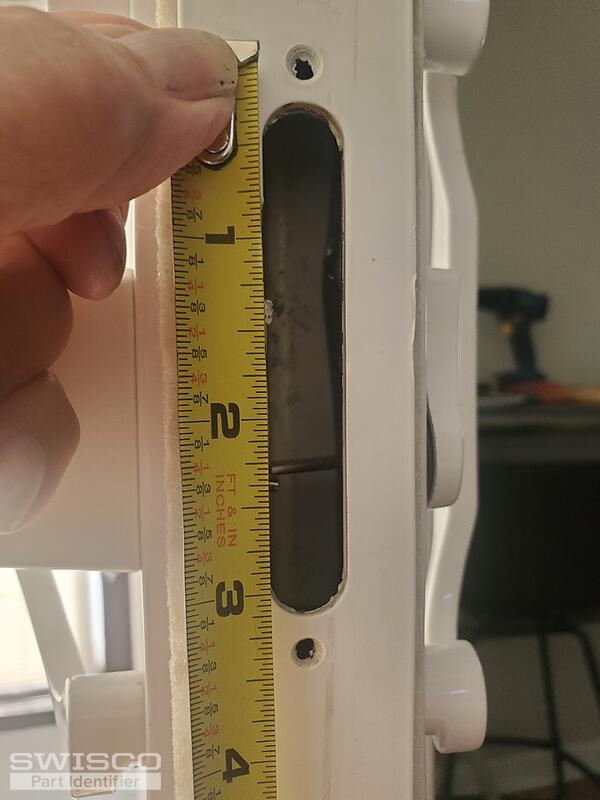

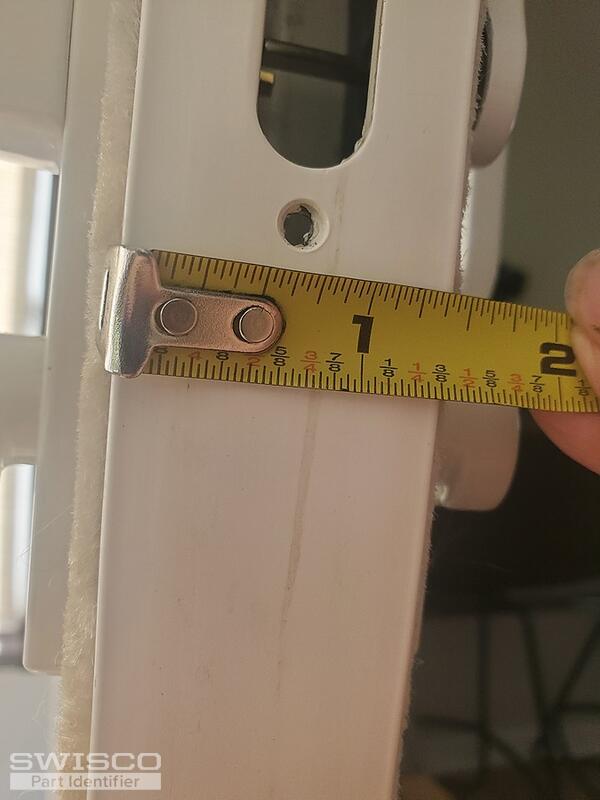

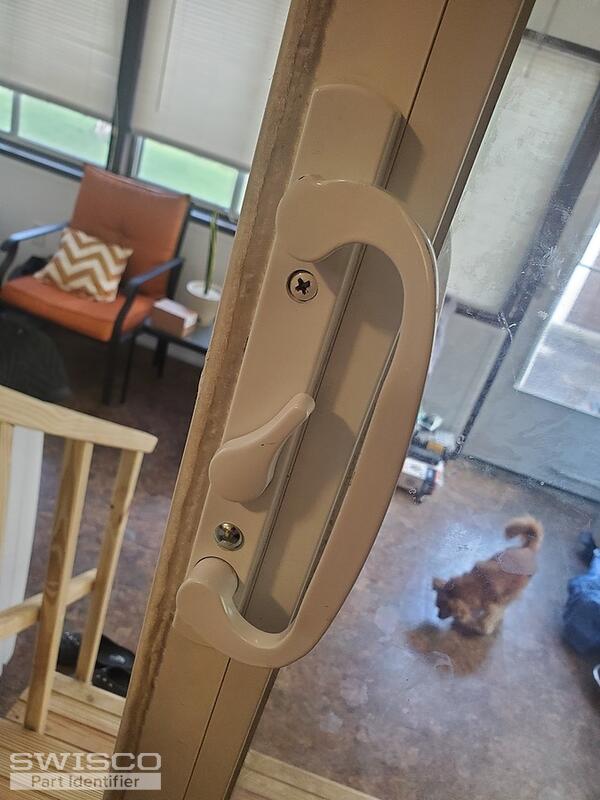

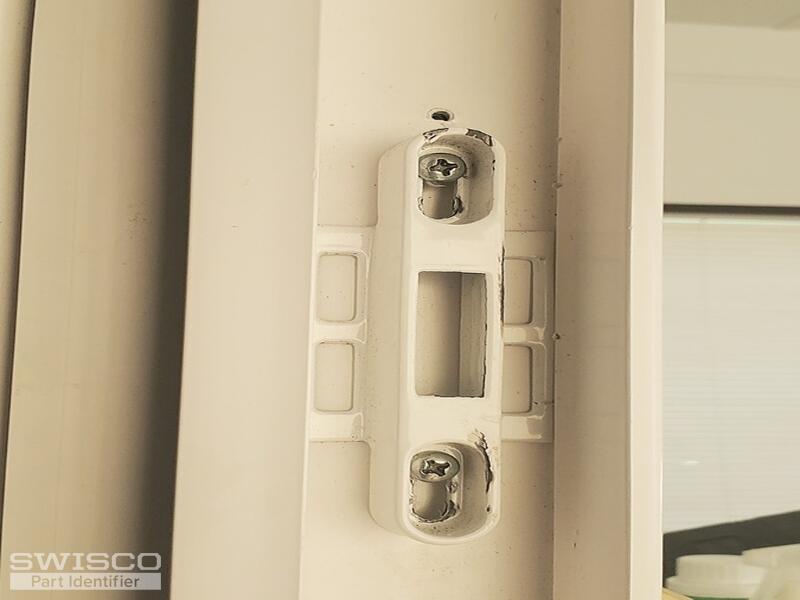

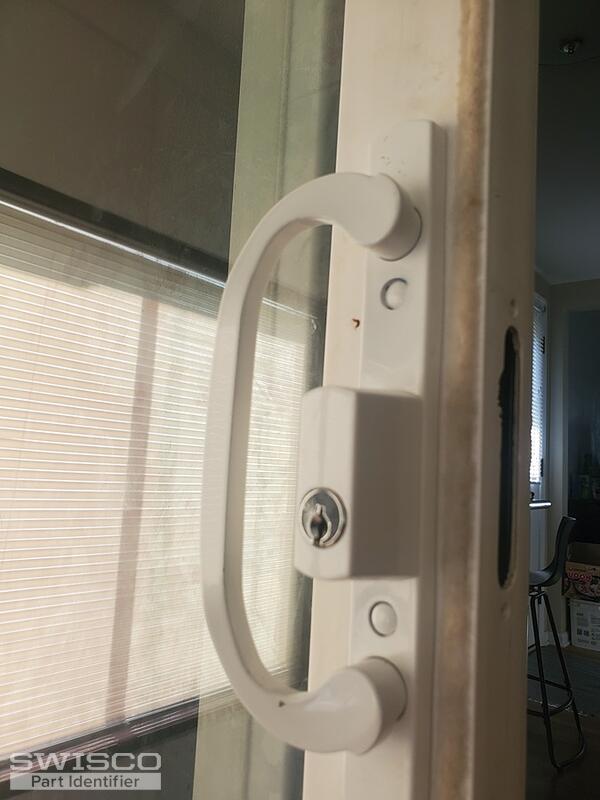

Thank you for getting back to me. Here are more pictures. I have the handles on both sides. May just need the key latch thing with lock and key and the thing that fell inside the door that I can not get out. Willing to buy the whole kit if I have to as cheaper then buying a whole new slider door. Thank you!
Thumbnail of the uploaded file named 20230822_154242.jpg
Thumbnail of the uploaded file named 20230822_154042.jpg
Thumbnail of the uploaded file named 20230815_154918.jpg
Thumbnail of the uploaded file named 20230822_154222.jpg
Thumbnail of the uploaded file named 20230822_154414.jpg
Profile picture of Casey
Casey from SWISCO responded:
August 23, 2023

Your handle set resembles the 82-086 with 3-15/16" hole spacing. If so, see the 82-310 key lock used with this assembly. This handle set is also often used with the 82-218 mortise lock, which is known to fall inside the door opening since the installation tabs rest on the inside of the frame. Review the specifications below and see what you think. Thank you.

Dimensions for 82-086
Dimensions for 82-086

Dimensions for 82-086
Dimensions for 82-086

Alternate view of 82-310
Alternate view of 82-310

Profile view of 82-218
Profile view of 82-218

Opposite side view 82-218
Opposite side view 82-218

Mortise Lock, Round Face, 3-11/16"
Mortise Lock, Round Face, 3-11/16"
82-218
$11.70
Key Lock
Key Lock
82-310
$14.30
Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2")
Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2")
82-086
$48.59
