Searching for Side mount pivot pin Marvin window

Quick Learner
Mar 30, 2018 1:32 pm

Good Afternoon!

I'm in need of a left side mount pivot pin for a Marvin single hung wood window. Markings are

db e03 24 xhd.

Thanks for the assistance!

Mike

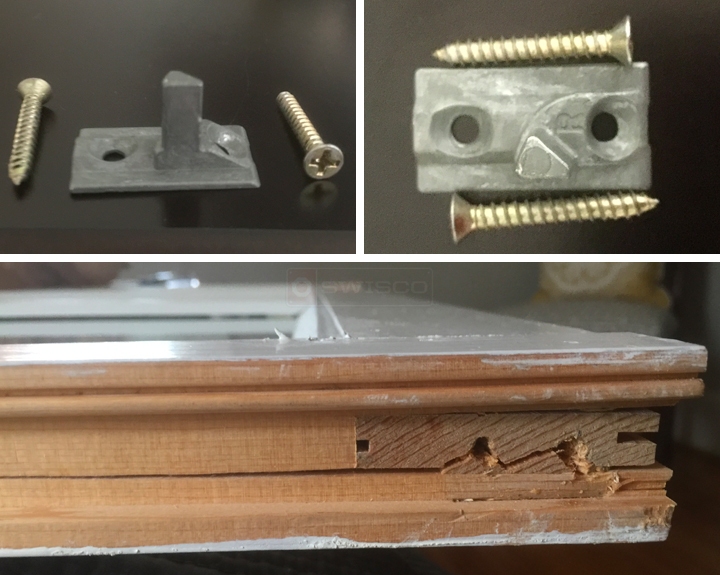

User submitted photos of a pivot bar.

2 Replies
+ Add a Comment
Paul
Paul from SWISCO
Apr 3, 2018 9:55 am
SWISCO
EXPERT

Thanks for posting, Mike. I want you to start by looking at our 26-150 pivot. Now, we weren't able to find an exact match to yours, but our 26-150 may be a good bet. It's designed to be used with a knife lock shoe like our 15-014, which is popular on Marvin windows. The dimensions of our pivot cam are 7/16" wide by 1-7/16" high, and 5/8" deep (counting the base). Let me know what you think!

Quick Learner
Apr 4, 2018 10:23 am
Looks like it's worth a shot! Thanks for the research and recommendation. I'll order the part.
Regards,
Mike
