Searching for replacement

Quick Learner from Sacramento, Ca
May 22, 2024 2:31 pm
Hello,

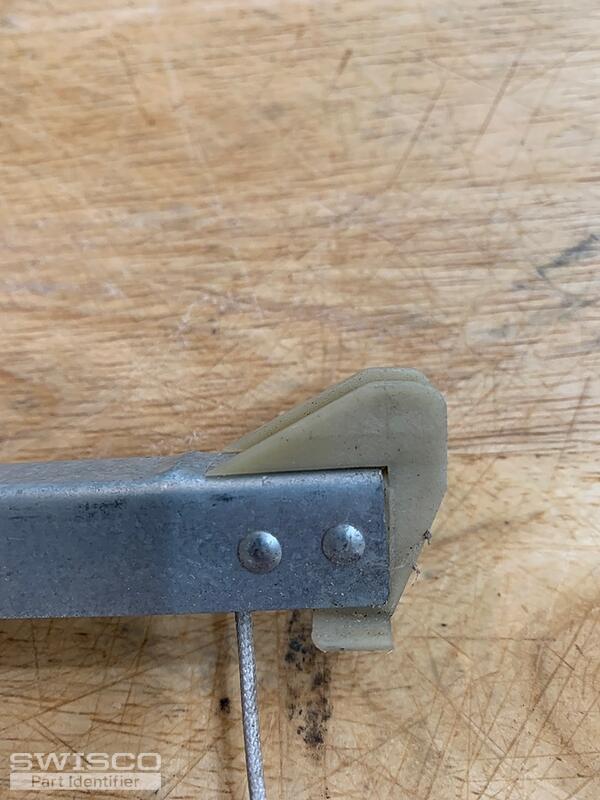

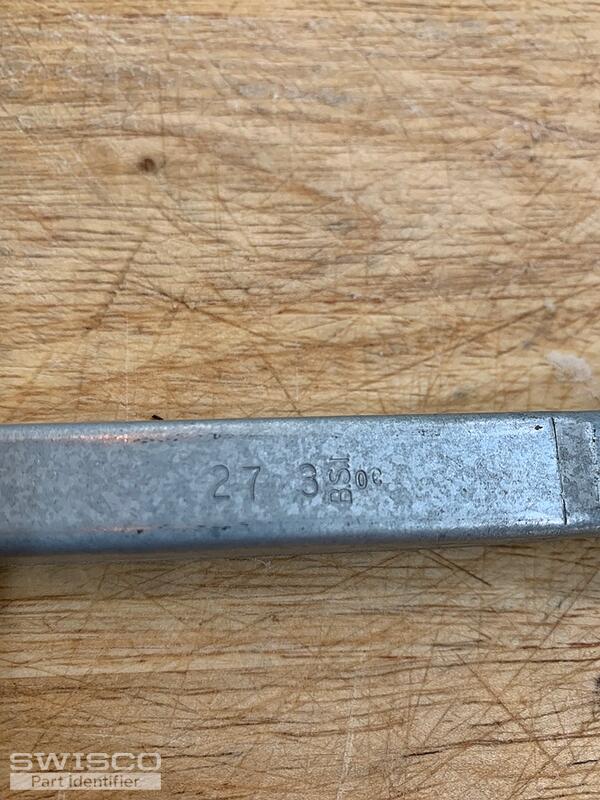

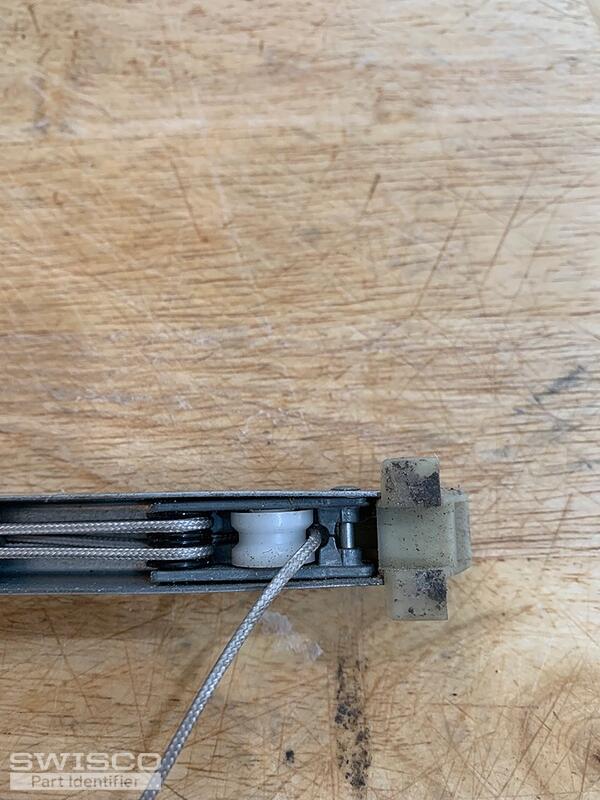

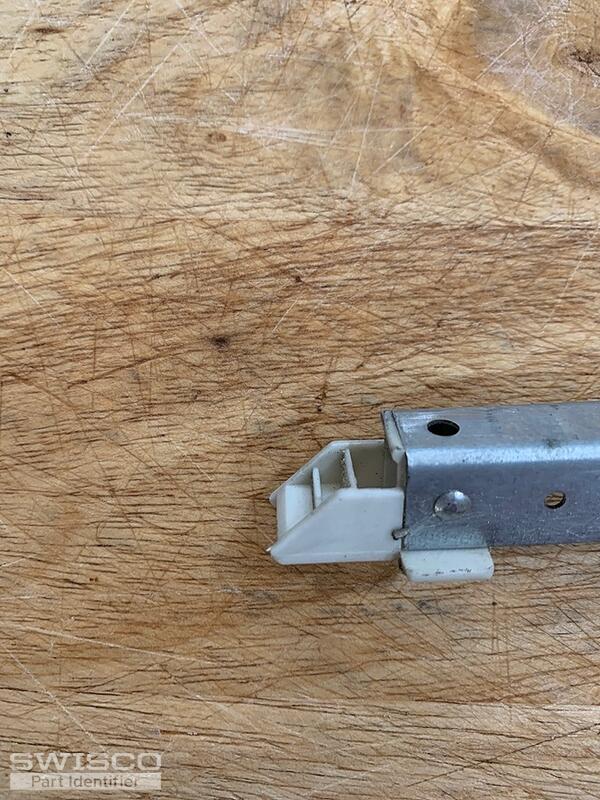

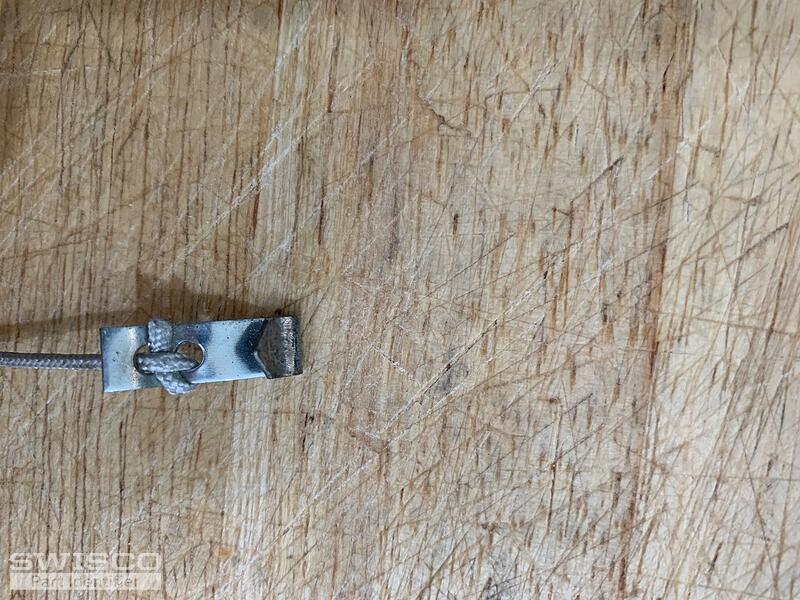

I'm searching for a replacement for my windows. The metal portion measures 28" long. Channel depth is 5/8". The stamp in the picture says 27 3 B.S.I. 0 C
IMG_4229 IMG_4230 IMG_4231 IMG_4233 IMG_4235
5 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
May 23, 2024 10:28 am
SWISCO
EXPERT

Hey there,

Thanks for reaching out! Your balances can be replaced with either the S380-28 with a 1" shoe or the S385-28 with a 1-3/32" shoe. To determine which of these is the balance you need, you'll need to confirm the depth of the bottom shoe. Take a look at the diagram below for reference.

You'll need to select the 2730 stamp option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
