Simon ton Vantage Series 6500 Internal balance

Quick Learner from New York
Jun 20, 2023 1:15 pm

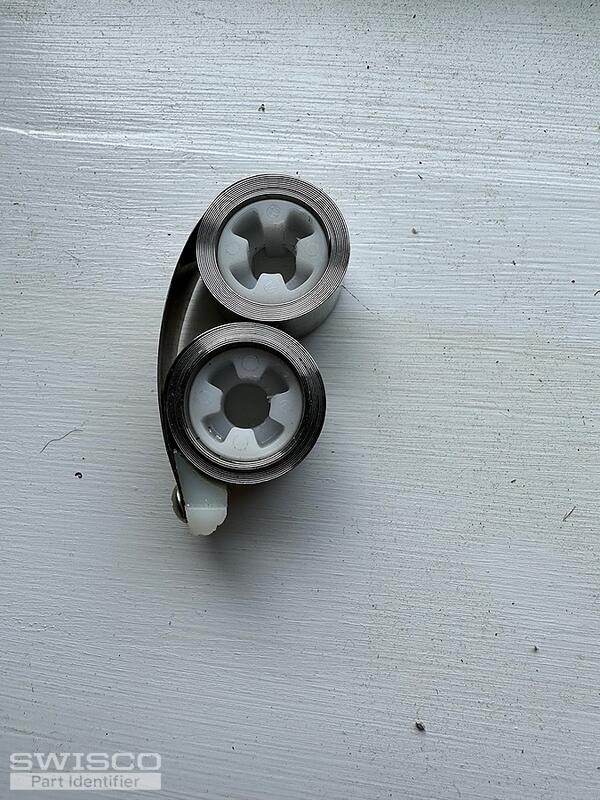

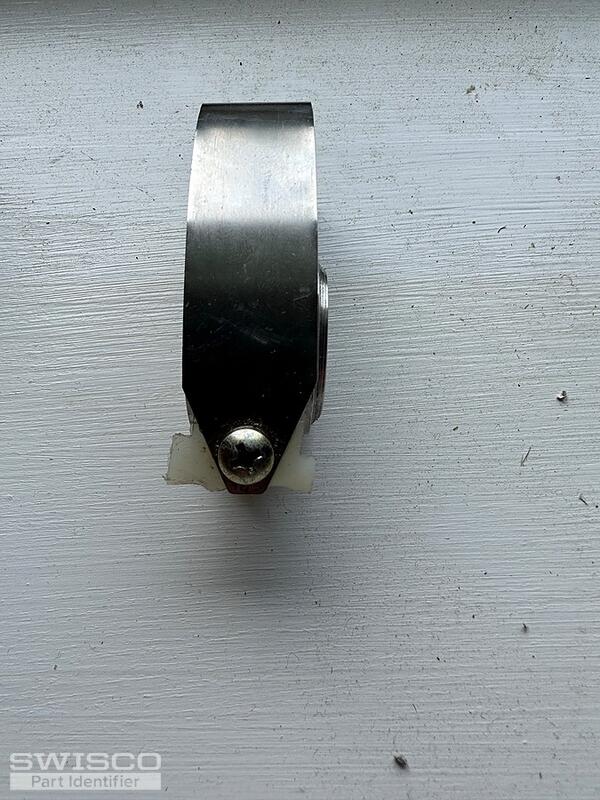

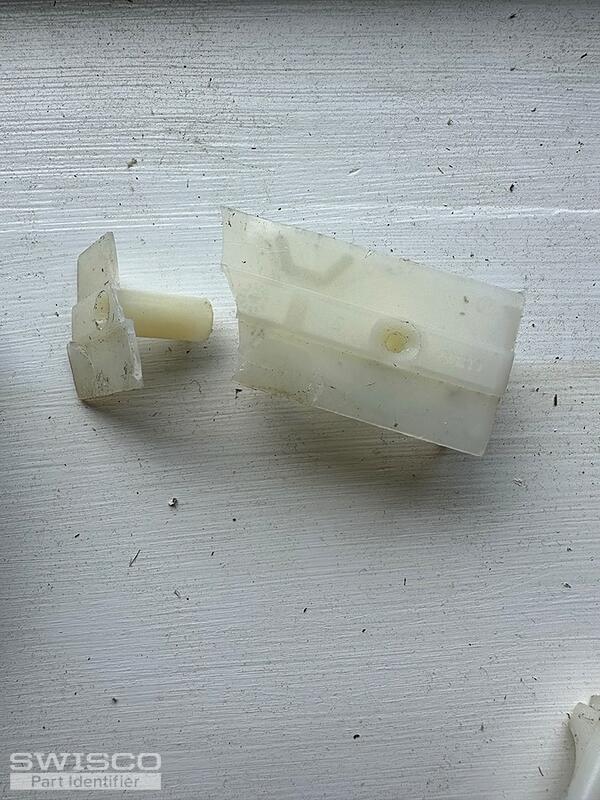

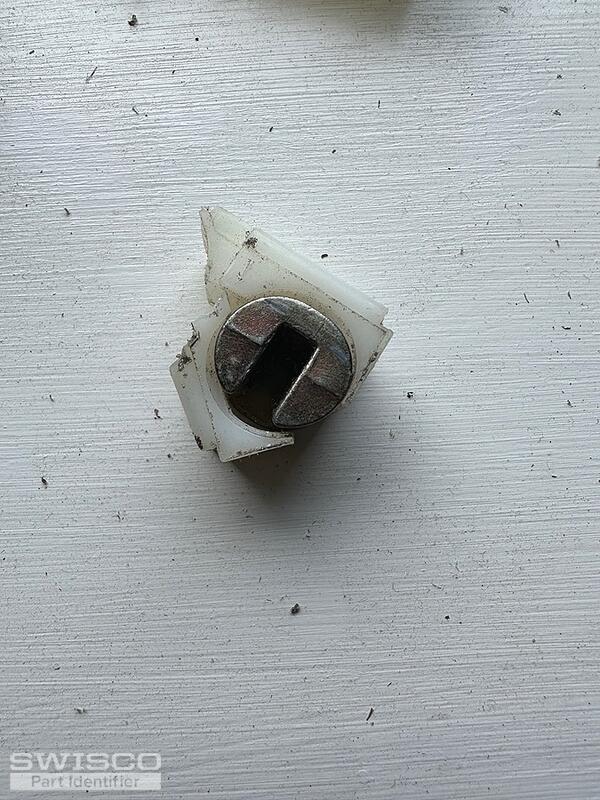

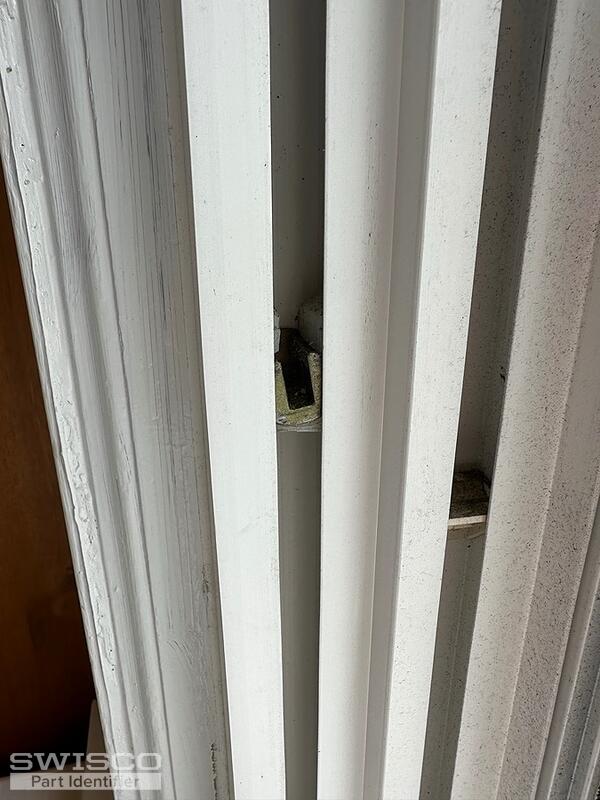

Have a few windows where the shoe broke off the balance spring housing. Unfortunately no part number stamped on the coil. Width is 3/4". Any assistance in confirming the correct part. Also need the pivot bar.
3F52CC3B-7F7D-488F-B487-27CE00F6AF01 33819FE3-A454-49A0-80D4-69A1900C62E2 BF40F2BF-4A07-4D58-8DFD-1FF8602594E7 09473355-179A-40F5-A288-6BE1FA35AF74 640B70DB-8B56-4A20-AA90-4F94F375EBBC
5 user uploaded images
1 Replies
+ Add a Comment
Emily
Emily from SWISCO
Jun 22, 2023 1:53 pm
SWISCO
EXPERT

Hey there!

Based on what I see here, I recommend our 15-259 which uses the Series 159 coil springs. The video below will walk you through the conversion, step by step. Take a look and let us know if you have any questions!

+ Add a Comment
Products and resources found in this discussion
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-083
$1.12
Coil Balance Pivot Shoe
Coil Balance Pivot Shoe
15-259
$2.57
