Simonton Single Hung Window

Start a new Discussion

Home Owner from Centereach New York

May 5, 2024 7:15 pm

H-R25-48x80

The only # I see is on the coil (35)

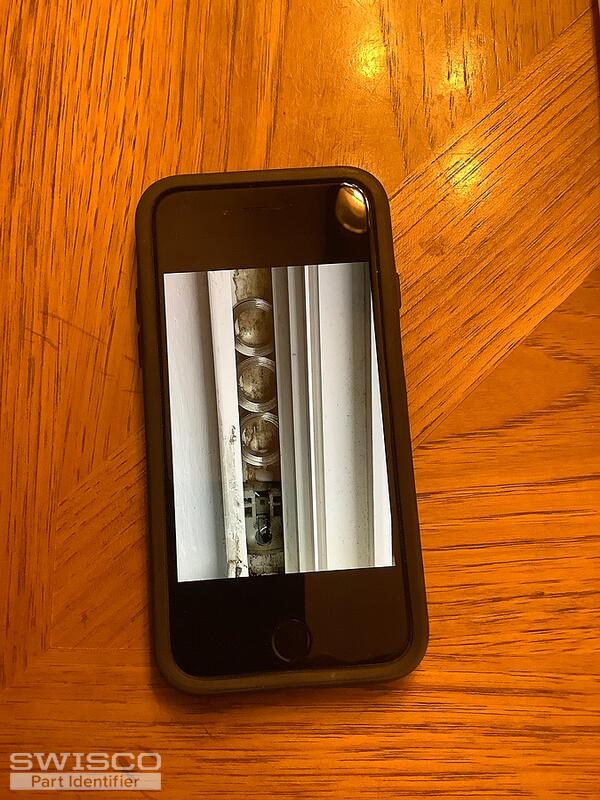

Balance Coil

Pivot Rod

Shoe

I need to replace both sides

Thank you for your assistance

John

4 user uploaded images

6 Replies

Tom from SWISCO

May 7, 2024 10:20 am

Hello, John. We should be able to help with these parts. See our 15-199 pivot shoe to start. For the spring, you have either our 3/8" Series 165 or the 1/2" Series 160. You need to measure the band on your original coil to verify the right size.

Lastly, it's very difficult to ID the pivot bar when it's broken in half like this, but the design is close to our 26-378. Look it over and see how well it matches the original. The key dimension here is hole placement.

Home Owner from Centereach New York

May 7, 2024 8:30 pm

Hi Tom

Thank you for the quick response

Pivot Shoe 15-199 looks correct

Spring is 3/8 Series 165

3" Pivot Bar 26-378 looks correct. There are 2 screw holes in the sash.

Thanks

Tom from SWISCO

May 8, 2024 10:16 am

Great! I'm glad that everything matches.

All orders can be placed directly on our site at your convenience. Thanks for considering us and please feel free to reach out if we can be of any further assistance.

Home Owner from Centereach New York

May 8, 2024 4:25 pm

Thanks for your help Tom

Tom from SWISCO

May 9, 2024 9:06 am

Anytime!
