Sliding Door Latch Replacement Inquiry

Home Owner from San Diego, California
May 11, 2024 4:01 pm
Dear Swisco support,

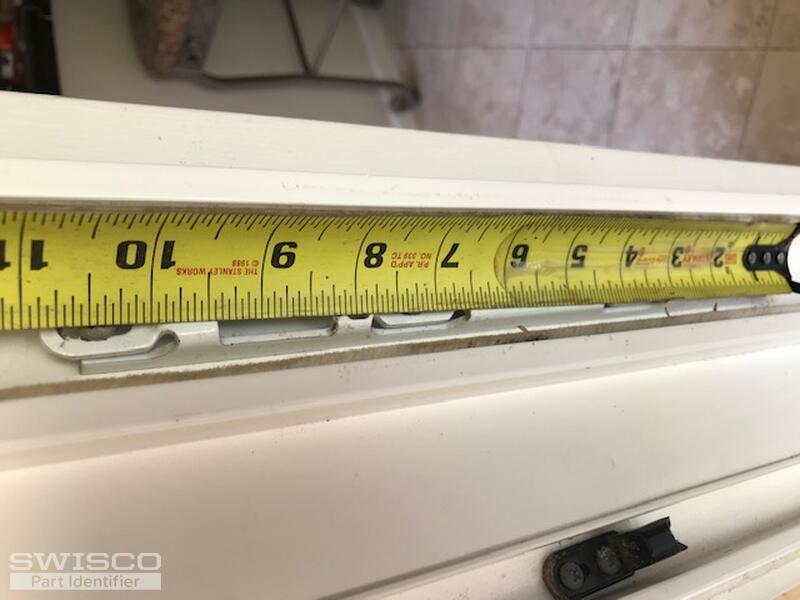

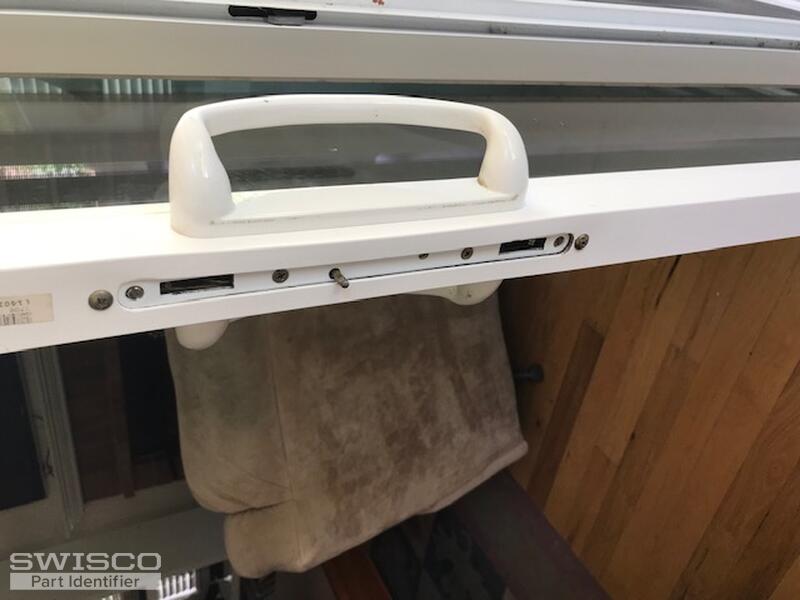

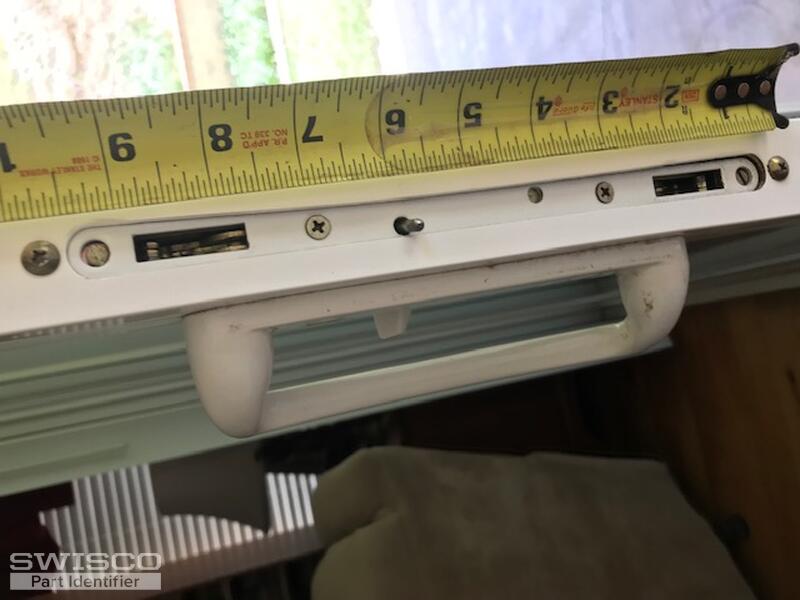

I have a sliding door two point mortise latch that is not locking. The center plunger on the latch seems jammed and is not freely plunging/retracting when I press on it with my finger. The manufacturer's sticker on my sliding door is SGD-R20-144x95. The white two point latch's length appears to measure 9 7/8" and keeper 10 7/8". Would you please look at the attached pictures and provide me with correct Swisco replacement latch part number?

Thank you very much,
Christopher

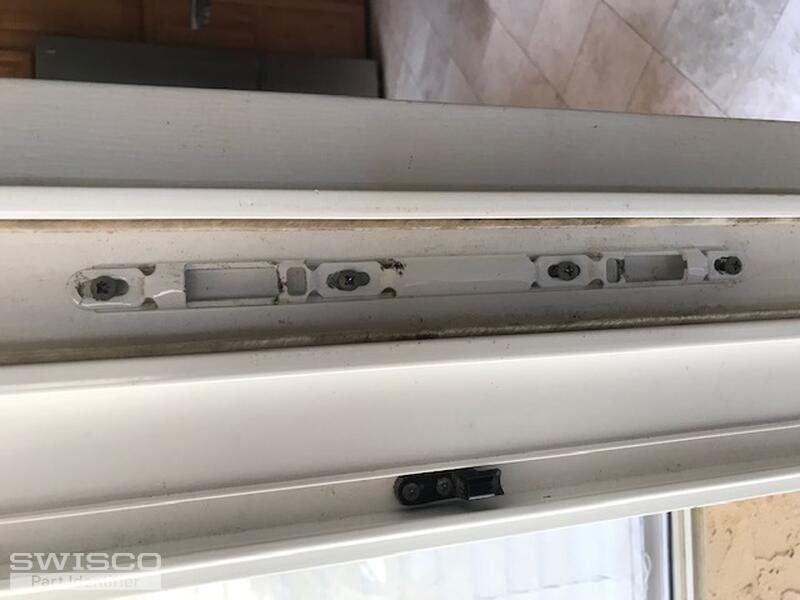

Two Point Keeper #2 Two Point Mortise Keeper #1 Two Point Mortise Latch #1 Two Point Mortise Latch #2
4 user uploaded images
1 Replies
Bob
Bob from SWISCO
May 12, 2024 11:25 pm
SWISCO
EXPERT

Hey Christopher. I believe this mortise lock is our 82-239. Please compare to confirm. Let me know what you think.

Alternate image for 82-239
Alternate image for 82-239
