Sliding Window Roller, 1/2" Concave Replacement

Quick Learner from San Diego
Jun 25, 2023 10:58 pm
I have a few horizontal sliding windows that have a broken Window Master Slider Latches that look identical to Product Code: 90-050 and the Sliding Window Rollers are "like" Sliding Window Roller, 1/2" Concave Product Code: 87-210.

The rollers is flattened on one side - I guess when they stopped rolling.

The problem is they are recessed up into the frame and I am not sure how to remove them or replace them.

I would like to buy the replacement hardware if I can figure out how to replace the rollers. I have pictures of the Latches and of the rollers as set into the frame.

Can someone help?

0 0 0
3 user uploaded images
4 Replies
Paul
Paul from SWISCO
Jun 27, 2023 11:58 am
SWISCO
EXPERT

Thank you for reaching out to us. To remove and install the new roller, remove the two bottom frame screws on the sash and carefully lay the sash down on a table with a protective cloth. With a hammer and block of wood, tap the bottom sash rail from the glass. With the bottom rail removed, you can slide out the roller from the rail. After you slide in the new rollers, tap the bottom rail back onto the glass with a rubber mallet.

Once you have it removed, compare your specifications with the 87-210 to see if this matches what you need.

Quick Learner from San Diego
Jun 27, 2023 2:42 pm
Thanks for the info. Pretty sure I would tap the bottom sash frame away from the rest of the sash - not sideways.In other words if the sash was in the window then the direction to tap the bottom frame would be straight down. I did try this but was afraid to tap too hard. Couldn't find any videos but I am pretty sure I just need to be a little more forcefully with the tapping.
Quick Learner from San Diego
Jun 27, 2023 2:56 pm

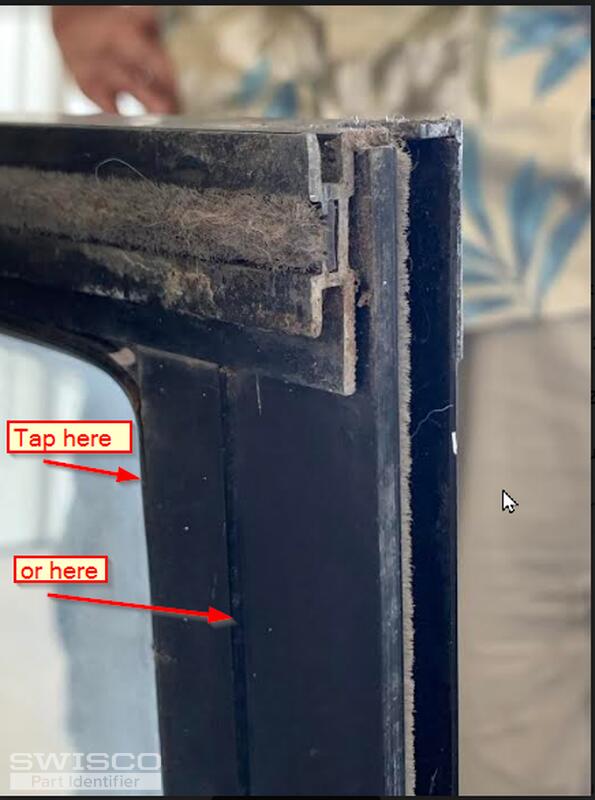

To be sure please indicate where to tap based on the new image I attached.
Thanks again for your help.
Where_too_tap
1 user uploaded images
Paul
Paul from SWISCO
Jun 29, 2023 8:54 am
SWISCO
EXPERT

Tap where the glass and frame meet (You noted "Tap Here") to release the frame from the glass. You might want to slightly tap the inter lock from the glass to help loosen the bottom rail from the glass.
