Sliding door lock

Contractor from San Francisco
Jan 30, 2024 1:32 pm
Hello,

We are locking for a replacement lock for a slide door with the below specifics

Series: 562/5631
AAMA/NWWDA 101
Image 2024-01-29 at 7.31.27 PM Image 2024-01-29 at 7.31.57 PM
2 user uploaded images
6 Replies
Lauren
Lauren from SWISCO
Jan 31, 2024 8:13 am
SWISCO
EXPERT

Hello, thank you for posting,

Unfortunately we are not able to cross reference the information provided. To further review, we will need to see pictures of the original lock. From there we can compare to determine if we can supply a suitable replacement option. Thank you!

Contractor from San Francisco
Jan 31, 2024 1:29 pm

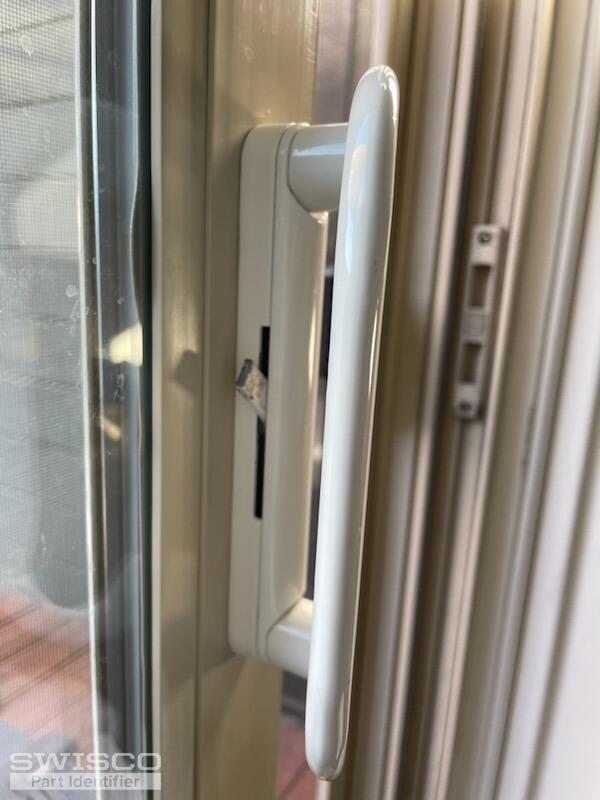

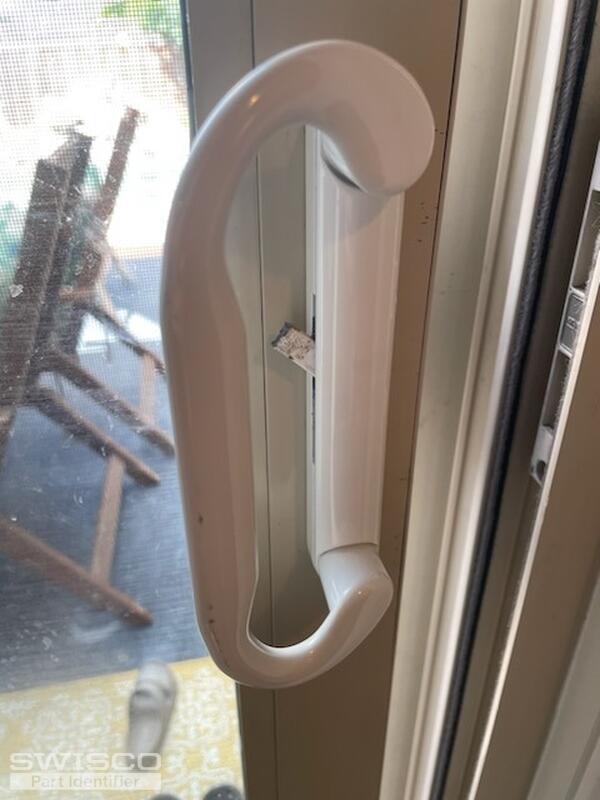

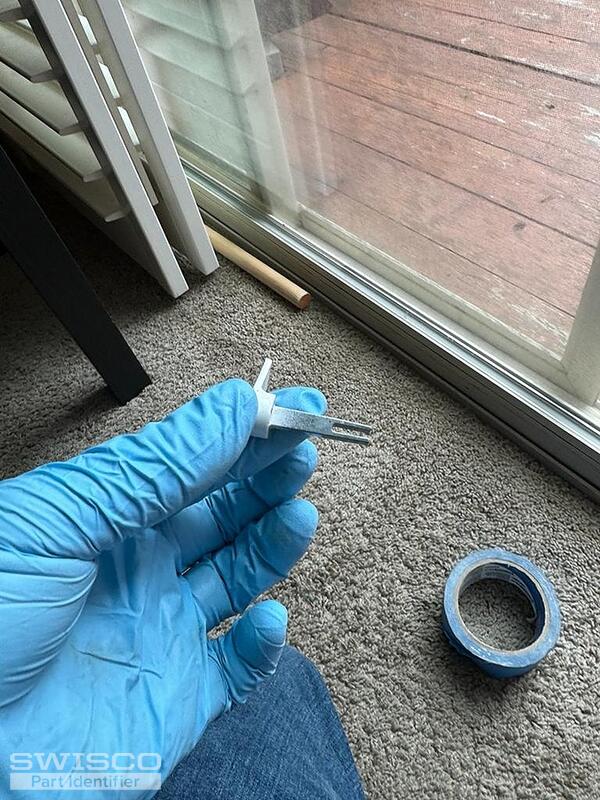

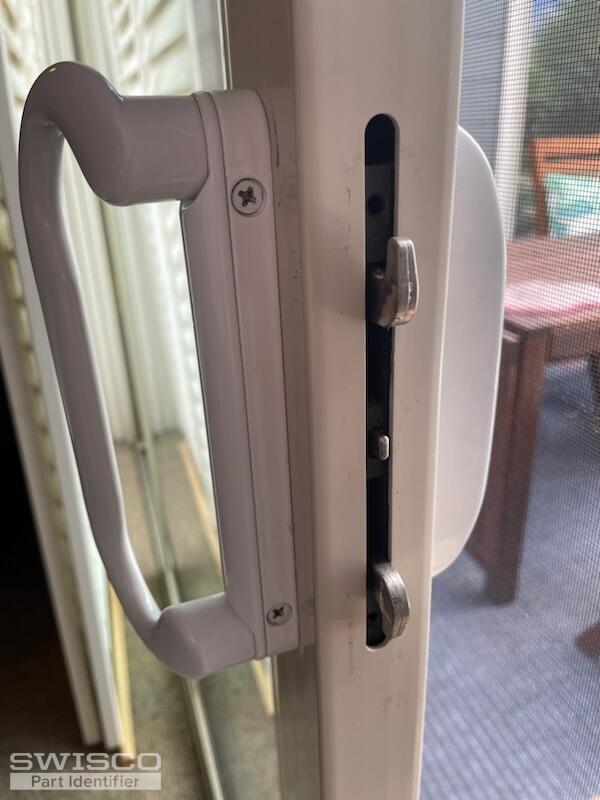

Thank you for your reply. Please see the attached pictures showing the complete door handle and the lock that is broken. Hope this is enough to identify it



Image 4 Image 5 Image 6 Image 7 Image 1
5 user uploaded images
Contractor from San Francisco
Jan 31, 2024 1:30 pm

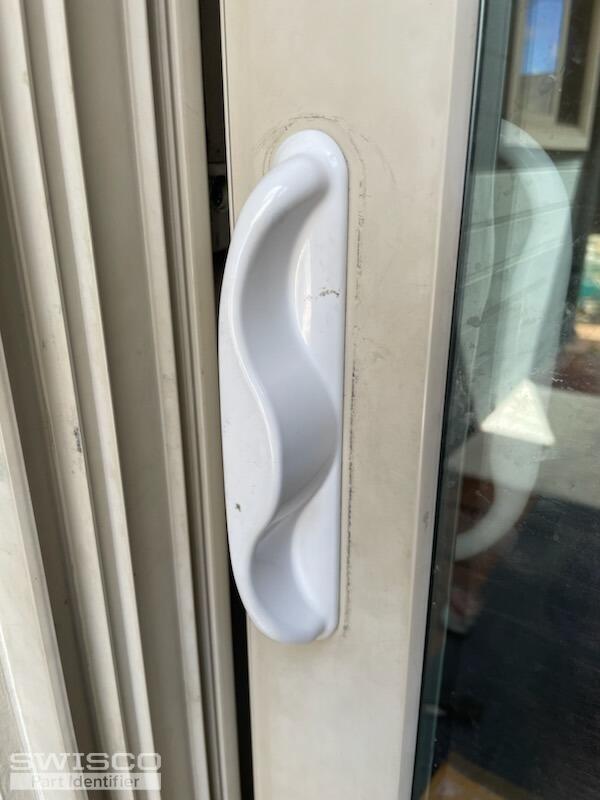

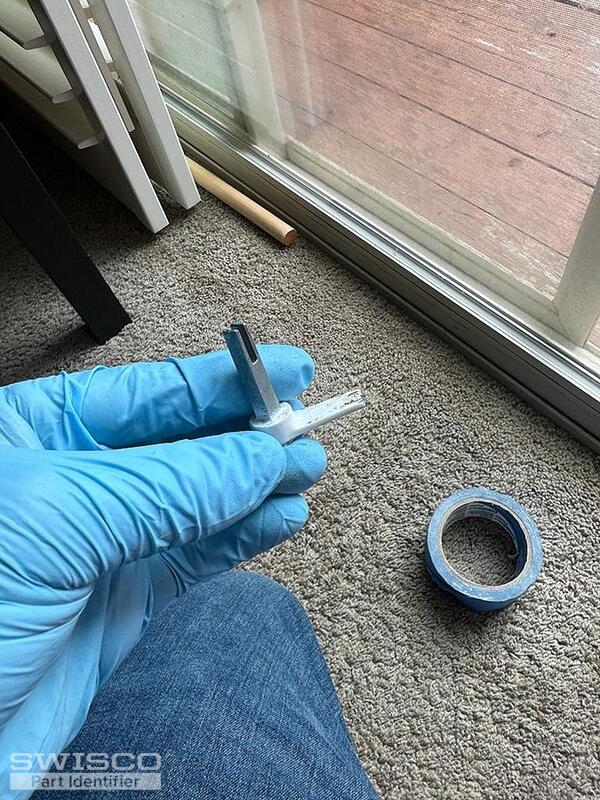

more pics
Image 2 Image 3
2 user uploaded images
Lauren
Lauren from SWISCO
Jan 31, 2024 3:40 pm
SWISCO
EXPERT

Thank you,

If the lock lever is the only thing that is broken, you may be able to replace it with the 82-240. Please note that when these break, there may be an issue with the internal mortise lock. I would suggest trying to throw the hooks of the lock to make sure they are working correctly.

Overall, your hardware resembles the 82-080 handle set, 82-268B mortise lock and 89-042 strike plate. Let me know what you think and if you have any additional questions!

Contractor from San Francisco
Jan 31, 2024 4:24 pm
Thank for your this information, it has been really helpful. We have gone ahead and placed an order for 82-080
Lauren
Lauren from SWISCO
Feb 1, 2024 8:28 am
SWISCO
EXPERT

Great! We appreciate your order. Good luck with the repair!
