Sliding door wheel replacement

Home Owner from Chicago

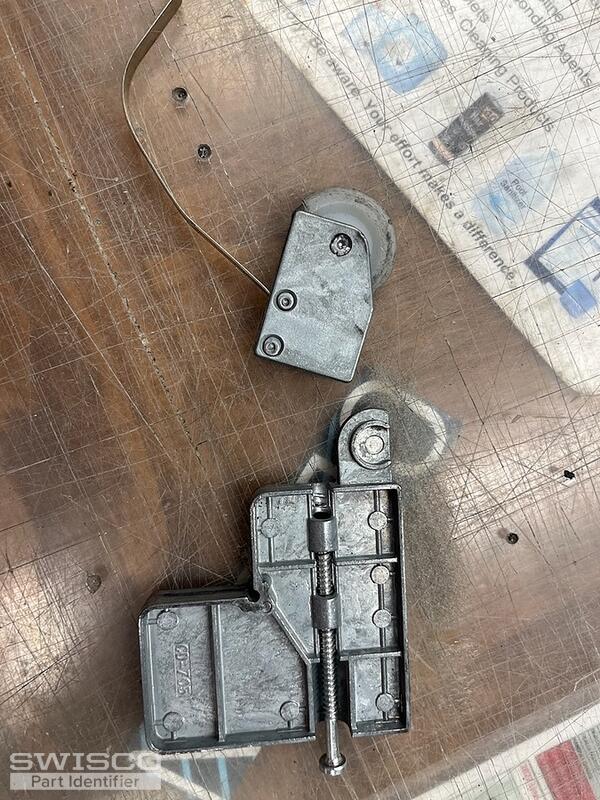

I'm looking for the attached wheel replacements for a sliding patio door that was installed in 2018. Please let me know if I need to provide additional information.
1 user uploaded image
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. The roller appears to be either our 84-096 or 84-108. The difference with these two rollers involves how they clip onto the door corner. The 84-096 has a space that clips into the hook of the corner, as you can see below.

Closeup of the 84-096 screen door corner attachment point
Closeup of the 84-096 screen door corner attachment point

The 84-108, meanwhile, has a post that hooks into the door corner.

Closeup of the 84-108 screen door corner attachment point
Closeup of the 84-108 screen door corner attachment point

Assuming you have the 84-096, which I believe you likely do based on your old door corner, a replacement corner, if you need it, is possibly our 95-227A. We had your exact corner at one time, but it was discontinued not long ago, and the 95-227A is our best possible substitution. Let me know if you have further questions.


Home Owner from Chicago
Thank you for your response. So I need to order two of the 95-227A, correct? Is there another piece that I should order as a backup?
Bob
Bob from SWISCO
SWISCO
Expert

I think there's a good chance that our 95-227A will work for you, yes. However you should still check to make sure that your roller has the same design as our 84-096, as shown above. If your style is closer to the 84-108, then you want our 95-248 instead.
