Sliding glass door roller replacement

Home Owner from The Rockies

Apr 14, 2024 8:17 pm

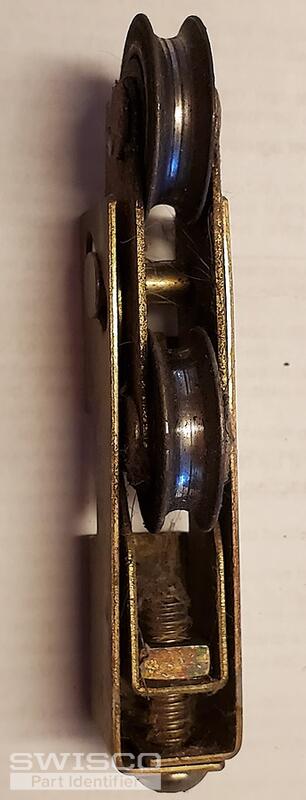

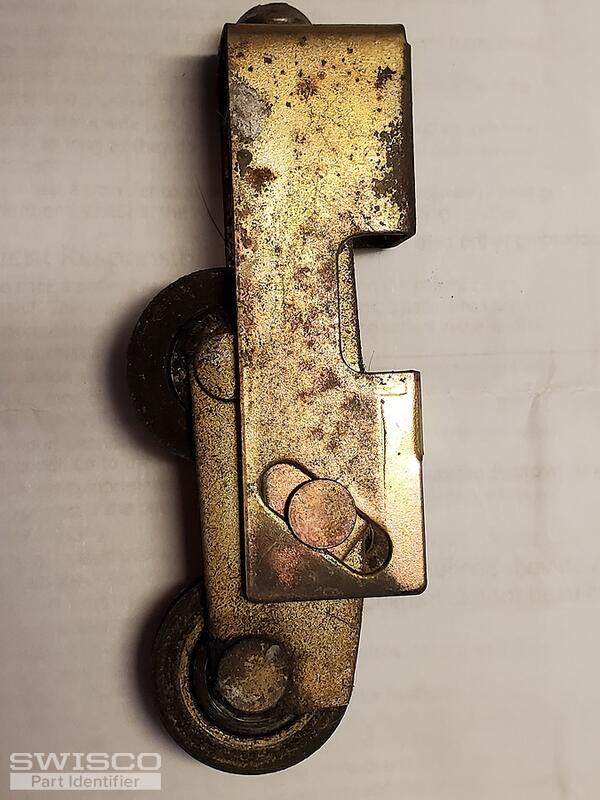

I'm trying to find the proper roller replacement for a sliding glass door but I can't seem to match up all of the dimensions. There is no branding on the door, but all markings are included in the pictures.
Roller = 1 1/8"
Length = 3 1/8"
Width = 11/16"
Height = 1"

5 user uploaded images

3 Replies

+ Add a Comment

Jasmine from SWISCO

Apr 15, 2024 12:36 pm

EXPERT

Thanks for writing in! Your patio door roller appears very similar in style to our 81-158 Dual Roller Assembly with a 1-1/4" steel ball bearing wheel. To determine if this is the right fit for your patio door, carefully double check the dimensions shown below. See what you think!

Alternate image for 81-158

Home Owner from The Rockies

Apr 17, 2024 8:34 pm

The rollers on that item number are 1 1/4" instead of 1 1/8" is it okay to replace them with the larger rollers?

Jasmine from SWISCO

Apr 18, 2024 9:33 am

EXPERT

Yes, the 81-158 should work fine for your repairs; it is the closest match we have to your existing roller. You should be able to adjust the wheels down to make up for the difference in wheel diameter.

I hope this helps!
