Spiral Balances with a length of 24-1/2"

Home Owner from Roseville, Mich

Aug 19, 2011 6:37 pm

I need to replace some spiral balances. My balance is a blue tip (900 series) but the length is 24 1/2 and the diameter at the blue tip is 1/2 inch which is a spring and not a tube.(Note image) My balance is a combination of spring and tube. The spring at the bottom is approx. 13" and blue tip to end of tube is 24 1/2 as stated above. Which balance should I order....24" or 25"?

Just a note-----The bottom end looks just like the 900 series which is the 3/8 dia. and not the 600/670 series 5/8 dia.

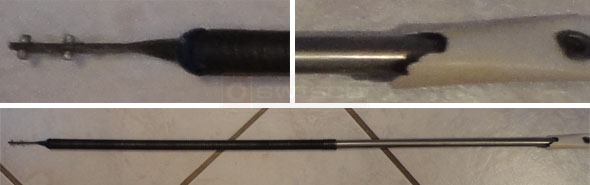

User submitted photo of their spiral balance.

6 Replies

+ Add a Comment

Paul from SWISCO

Aug 22, 2011 11:28 am

EXPERT

The tube length should be on the inch. Please remeasure your tube length as seen in this picture.

How to measure the length of the Series 303 spiral balance.

If you check the diameter of the white tube that should measure 1/2". If it does measure 1/2" and your tube length measures 24", you will need to order our S600-24 with the blue tip option.

Home Owner from Roseville, Mich

Aug 22, 2011 6:08 pm

Thanks for the reply. I just want to make sure you think the 24" balancer will work. I'm in between sizes. Look at the new photos and tell me if you think thew 24" is good. The blue tip won't move so these dimensions on my ruler are what they are. Thanks for working on this for me.
Rich M.

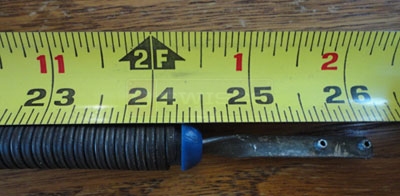

User submitted photo of their spiral balance length measurement.

Paul from SWISCO

Aug 23, 2011 8:57 am

EXPERT

We can go by the internal spiral in this case. If the total length of the internal spiral is 26" - then go with our S600-25

In your image the internal spiral looks to be 26" (but make sure that the internal spiral was not pulled out of the tube a little bit, which would make it appear longer in your image.

Let me know if my explanation is clear.

Quick Learner from Roseville, Mich

Aug 23, 2011 9:47 am

Thanks Paul.....Everything is clear, I will order the S600-25.
Thanks again for the help.
Rich M.

Quick Learner from Roseville, Mich

Aug 31, 2011 4:06 pm

Paul, Thank you for your help with your recommendation on my spring balances. It was right on and your service is great. I ordered them (S-600-25)on 8-25-11 and got them on 8-31-11, installed them in two windows in about 10 minutes each and no more holding up windows with sticks. Great company and I'll recommend to all my friends. Again, thanks for all your help. Rich

Paul from SWISCO

Sep 1, 2011 7:53 am

EXPERT

Thanks for following up with us.

I'm glad to hear the balances worked out for you.
