Spring cable balance

Quick Learner from Fort Mill SC

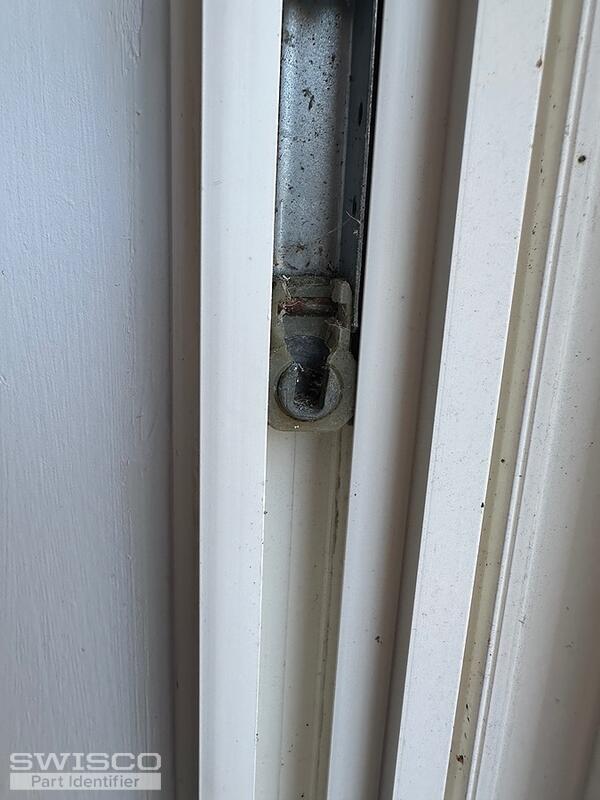

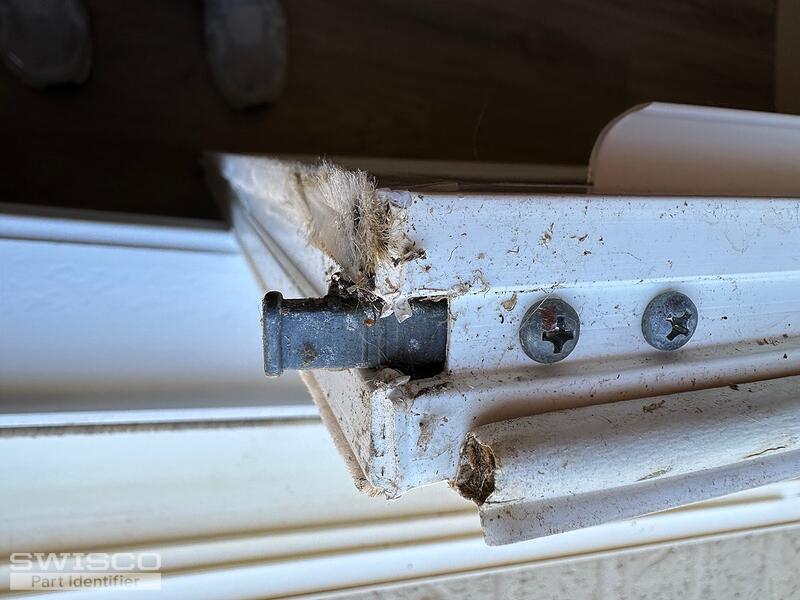

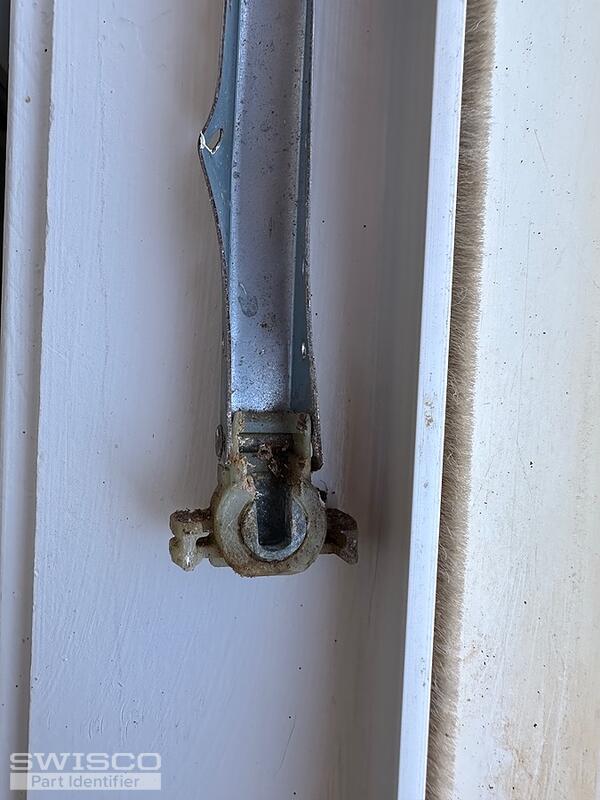

Hopefully you can identify the window balance based on photos the home is about 30 yrs old and half the windows will not operate so I'm going to replace all balances. Stamp on channel 26C

4 user uploaded images
10 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

I'd recommend starting by comparing the specifications of the S795-26 (26C) balances to your assembly. Please note that these balances use a screw clip at the end of the pulley cord for installation, which is not visible in your photos. Also, make sure to confirm that the dimensions of the 15-195 closed-cam t-lock shoe that comes with these balances match yours.

How to measure the length of the Series 795 channel balance.
How to measure the length of the Series 795 channel balance.

Alternate view of 15-195
Alternate view of 15-195

Dimensions for 15-195
Dimensions for 15-195

Alternate view of 15-195
Alternate view of 15-195

If you need new pivot bars as well, we would need to see photos of yours fully removed from the sash to compare to our inventory. Thank you!

Quick Learner from Fort Mill SC

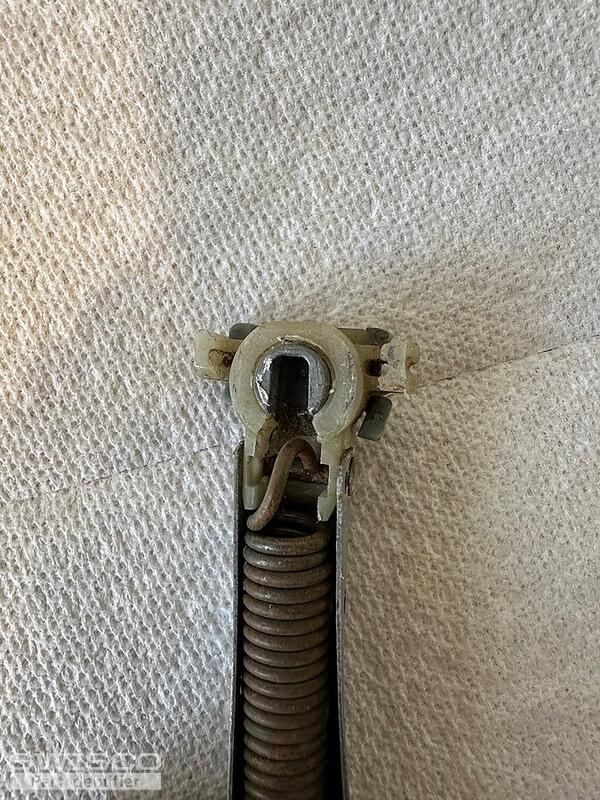

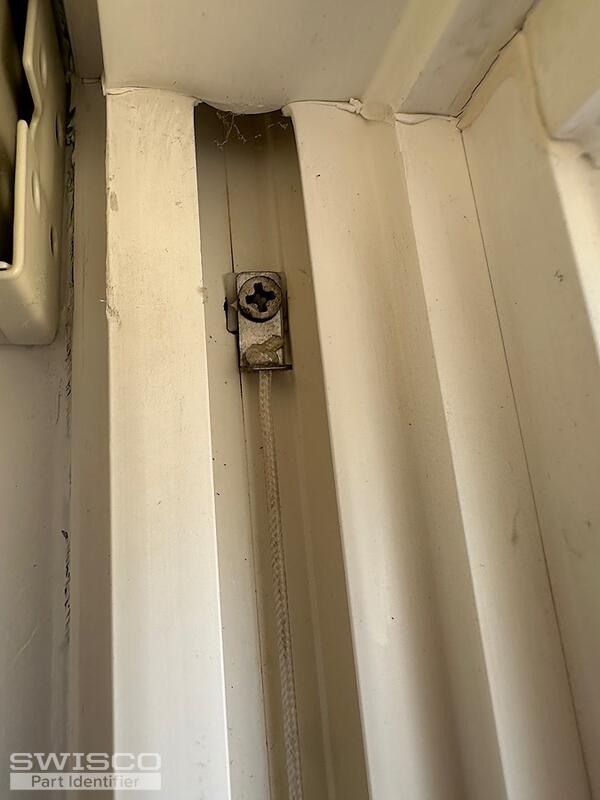

Here are additional photos
3 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. I still believe that we can help but your t-lock shoe is a different style than we usually see. To confirm if the S795 could work as a replacement, we'll need you to confirm the width of the metal channel.

Quick Learner from Fort Mill SC

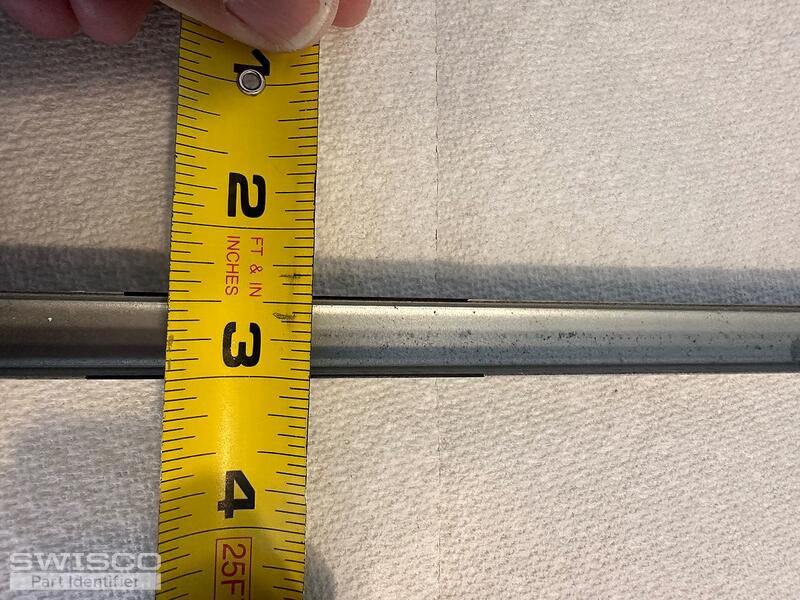

Looks like the channel width is .50 inch
2 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Great, then the S795 balances that we originally recommended should work since they have the same 1/2" wide channel. If you decide to give them a try and run into any problems, you're welcome to review our return policy here, though I see no obvious reason why our replacements couldn't work for your repair.

Quick Learner from Fort Mill SC
Thanks I'll going to order a pair first just to make sure everything fits I don't see a problem

Thanks appreciate all your help

Great customer care
Casey
Casey from SWISCO
SWISCO
Expert

We're happy to help and appreciate your business! Just let us know if you have any other questions once the order arrives.

Quick Learner from Fort Mill SC

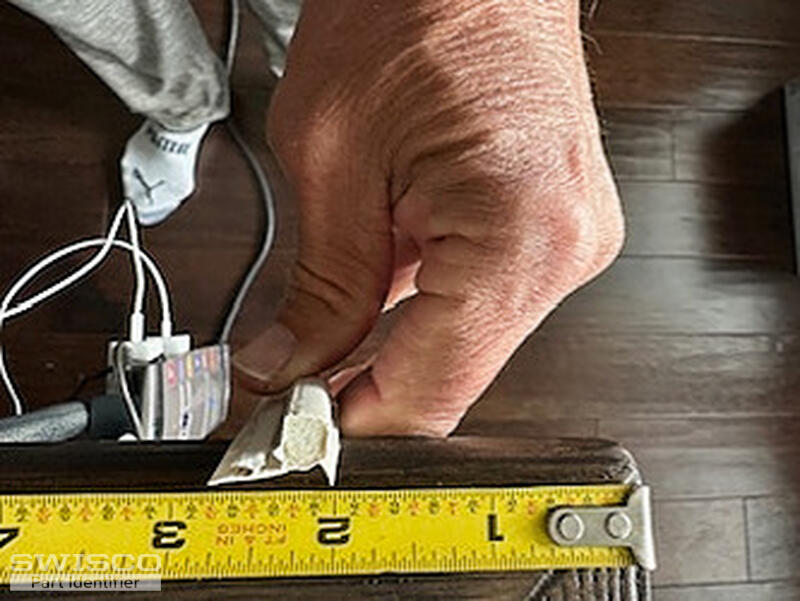

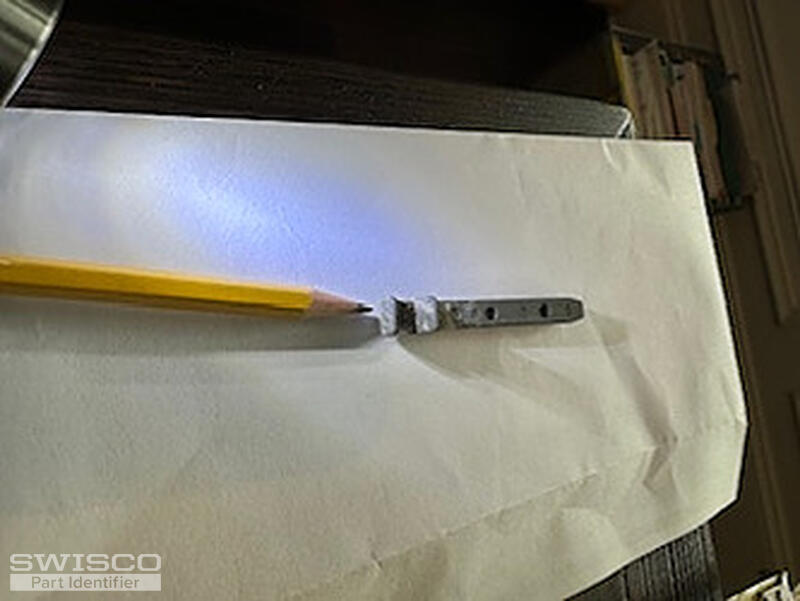

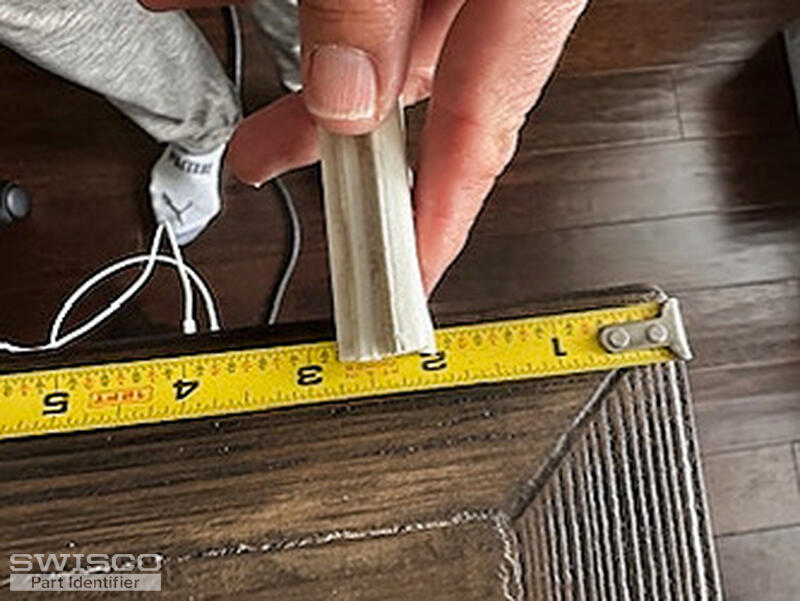

Looking for bottom window seal and the part that slides into the balance spring and holds window in sash all photos below
thanks
3 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Your weatherstripping resembles either the 58-171 or 58-182. We'll include the dimensions from our product pages below.

Profile diagram of 58-171
Profile diagram of 58-171

Profile of 58-182
Profile of 58-182

As for the pivot bar, I can't quite make out the details from your photo. If you could show us another close-up photo of the part, that would help us narrow down your options.
