Stanley 2/8 6/2 window

Quick Learner from Little river South Carolina

Jul 22, 2021 8:04 am

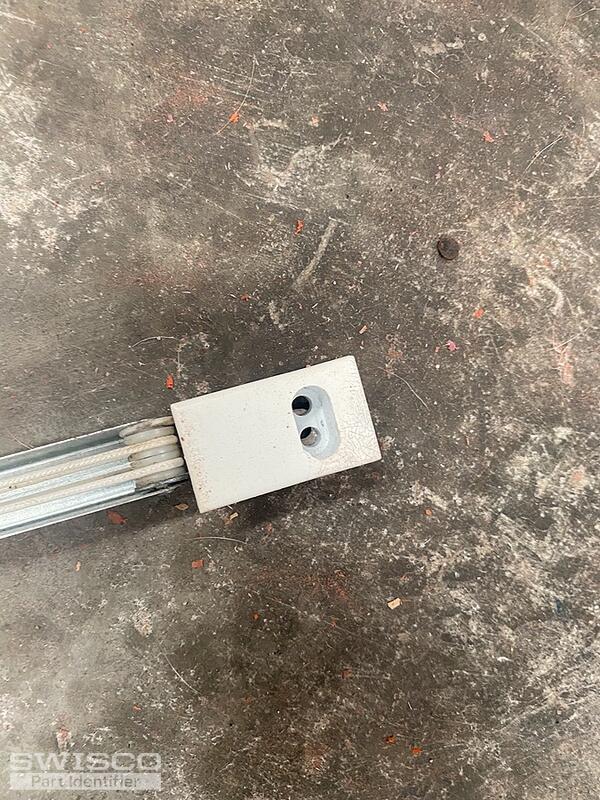

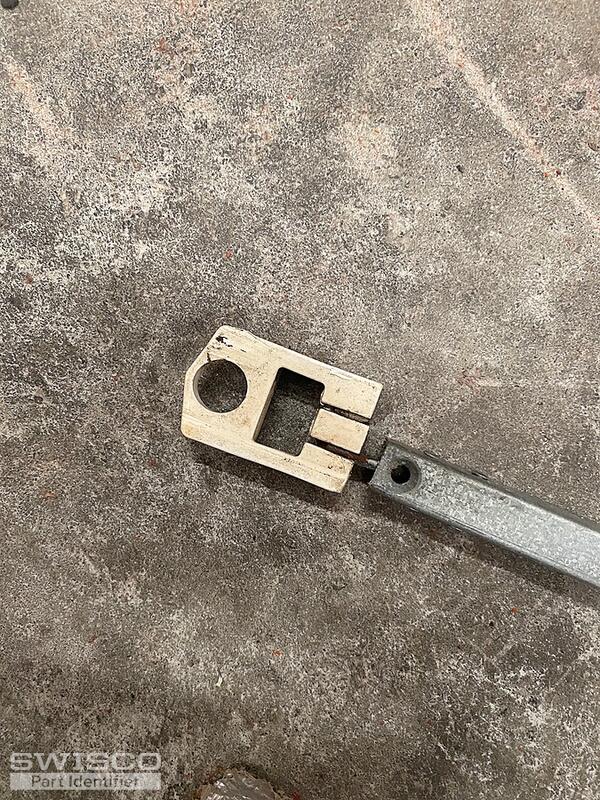

Frame is 33" long 1/2" c channel Just curious if you can make these or have them in stock

Thank you

32 3 CMC

9164DE9A-1491-424B-B53B-6A1948B3F458

5114AD65-9F60-47A7-8BB9-A81D04E1EF9D

91D22F3A-182A-468B-B266-A5AA1E1D1B26

58159C76-D147-43D8-8D17-6623185C895B

5 user uploaded images

1 Replies

+ Add a Comment

Casey

Casey from SWISCO

Jul 27, 2021 2:01 pm

SWISCO

EXPERT

Hello,

We appreciate your patience during our busy season. Take a look at the S765-33 channel balance with a 32-3 strength option. 26-053A would be the top balance stop and the 15-046 is the pivot shoe. We recognize that it looks different than what you had but the measurements should line up. If not, please let us know. Also, see the 26-040 pivot bar. Thank you!

+ Add a Comment
