Stanley Bi-Fold Door Guide Wheel with Stepped Flange 7/8-1inch in 1,25 track.

Home Owner from Lancaster, PA
Feb 12, 2022 4:28 pm

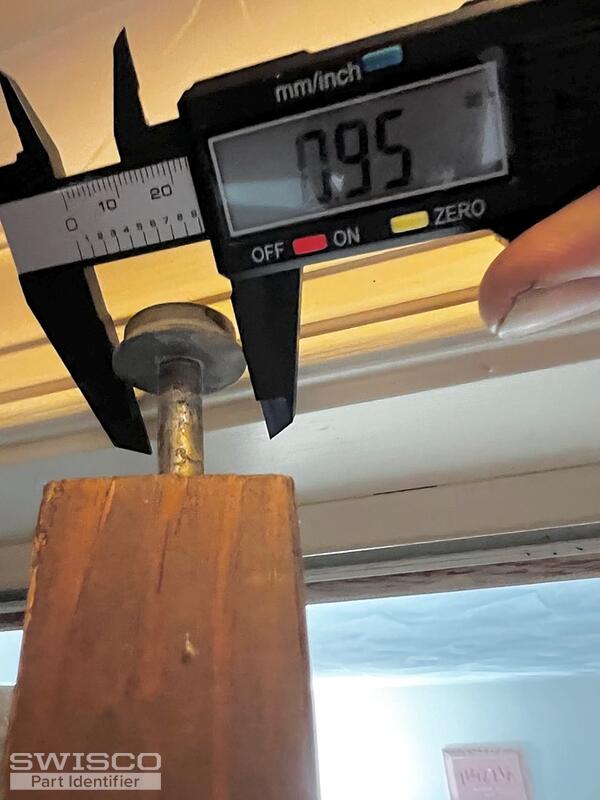

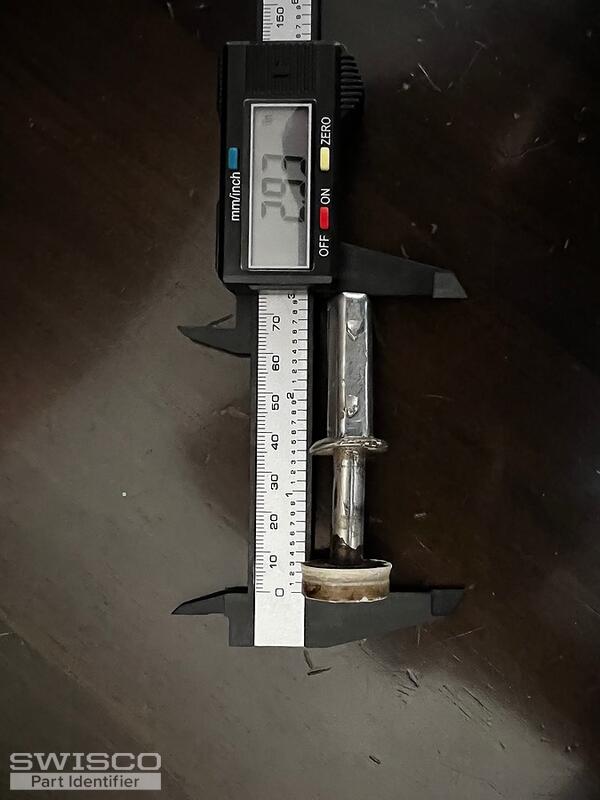

I believe the 23-172 is for me but the barrel is 3/8.My measurements show closer to 7/16. I expect that will be a simple fix of wrapping it some durable material.

Does this look compatible with my Stanley Stepped/Falnged Guide Wheel?
IMG_3733 IMG_3737 IMG_3736 IMG_3734 IMG_3742 2
5 user uploaded images
4 Replies
Home Owner from Lancaster, PA
Feb 12, 2022 4:35 pm

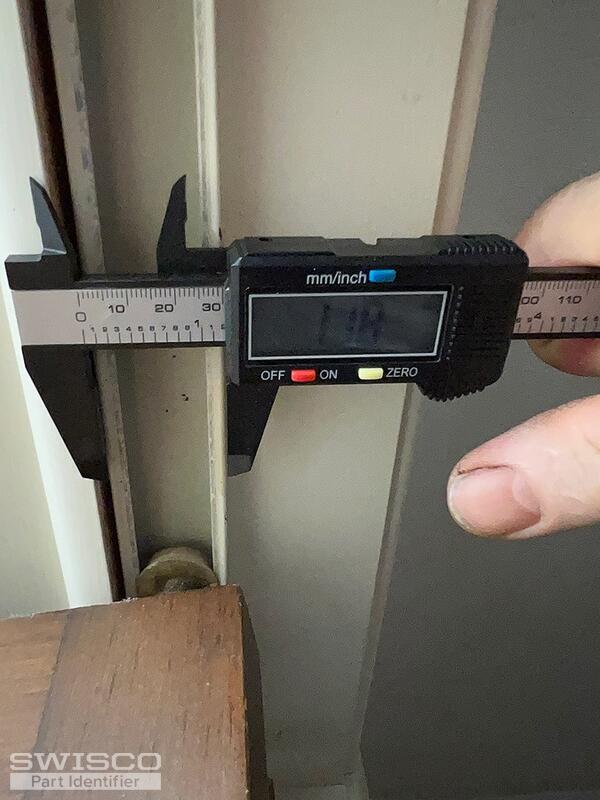

I just wanted to post a clearer picture of the track. Calipers are not exact.
1 user uploaded images
Tom from SWISCO
Feb 15, 2022 9:33 am

I agree, our 23-172 looks like a dead ringer for your old guide; so much so, in fact, that I ran in the back to remeasure it with my own pair of calipers. Wouldn't you know it but our dimensions are just about the same as yours.

I say "just about" because the base appears to be an uneven hex shape. My exact measurements were .427" at the absolute skinniest and .490" at the absolute fattest. You might want to triple check yours just to see if it aligns.

The dimensions you see on our store page were given to us by the manufacturer directly. I don't know why they labelled this an even 3/8" but if I had to guess then I would say that this is the size of the hole it fits into. Or they just thought it was easier to round up. A LOT of manufacturers label their dimensions that way. Either way, I feel confident that our 23-172 is exactly what you want.

Home Owner from Lancaster, PA
Feb 15, 2022 9:58 am
Thank you so much. That really gives me confidence and I so happy I don't need a new track or totally new doors. Thanks for your assistance!
Tom from SWISCO
Feb 15, 2022 12:01 pm

You got it! Please let me know if you ever need anything else.
