This is the crankset for a casement window - believe it is Milgard

Quick Learner from Salt Lake City, UT
May 17, 2024 5:35 pm
Hi,
Can you help me identify this crankset for replacement?

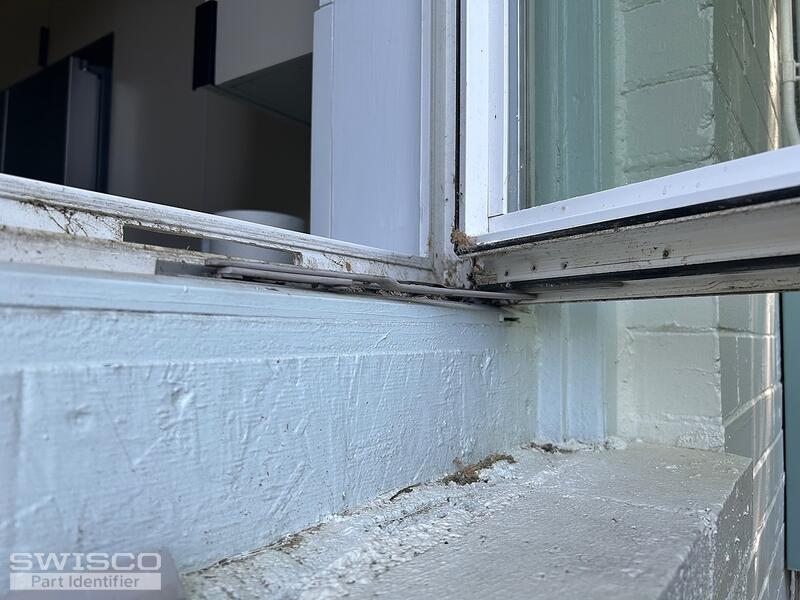

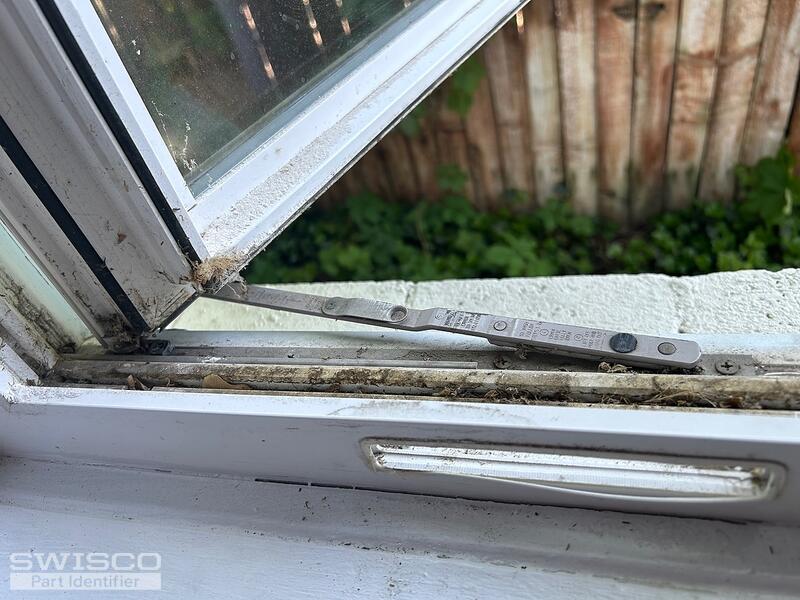

underside of operator 40447 stamp bracket dual arm operator bottom hinge IMG_2133
5 user uploaded images
1 Replies
Emily
Emily from SWISCO
May 20, 2024 1:19 pm
SWISCO
EXPERT

Hello there!

Our 39-253LB and 39-253RB appear to match what you have here. These operators are designed to use the 39-529 track slider (sold separately). The 39-545 and 39-546 brackets are sold separately as well if you need them. As for the hinge, we don't have an exact match as yours is a bit odd but the 36-048 is similar. Have a look and see if you think the specifications could work for you.

Note that you'll want to replace the top and bottom hinges at the same time.
