Tilt window balances

A handy person from Saint Augustine says:
February 6, 2023

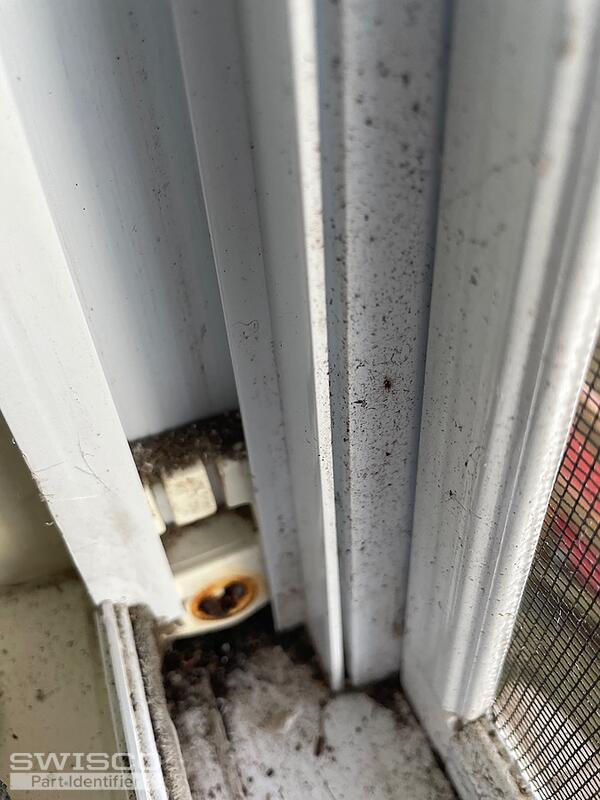

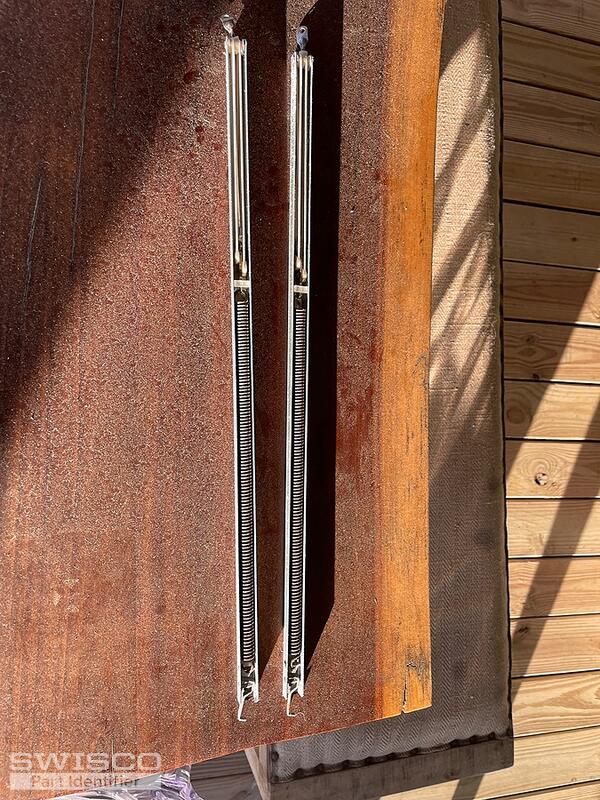

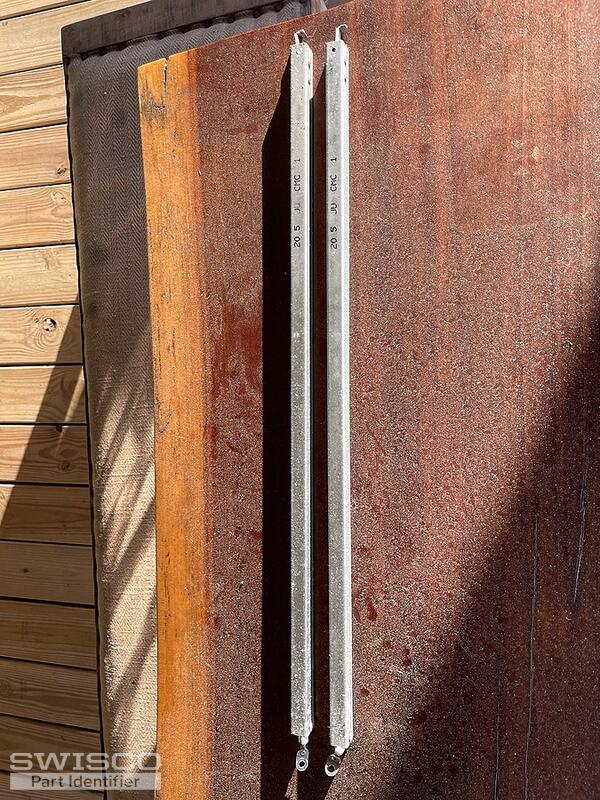

Looking to replace the tilt window balances and the part that the tilt works upon
Thumbnail of the uploaded file named EAF95FE7-682D-4543-9AB7-FD5188E7B3F7.jpeg
Thumbnail of the uploaded file named 40D45285-4F1D-48FC-A32C-6D0ECD754997.jpeg
Thumbnail of the uploaded file named F1B0426F-D121-4843-8CC0-760D610502E0.jpeg
Thumbnail of the uploaded file named 98B6C037-7C34-43F4-B49C-EF0DA6565B45.jpeg
A handy person from Saint Augustine says:
February 6, 2023
Thumbnail of the uploaded file named 0006F10E-0A9D-4258-B72E-6C53ACAC2A03.jpeg
Thumbnail of the uploaded file named 9C2AD1C5-CAE0-4B83-AD2A-A5878C04CF21.jpeg
Profile picture of Tom
Tom from SWISCO responded:
February 7, 2023

Hello! Your balance appears to match our Series 765. Check it out and let me know if you agree.

As for the pivot shoe, your exact style isn't made anymore, but our modern 15-046 should work perfectly well as a replacement. This also happens to be the most common pairing with the Series 765 these days, so I'm very optimistic it's what you want. Just check to ensure your dimensions are the same.

Close up view of the series 765 balance bottom.
Close up view of the series 765 balance bottom.

Close up view of the series 765 balance top.
Close up view of the series 765 balance top.

Alternate image for 15-046
Alternate image for 15-046
A handy person from Saint Augustine says:
February 8, 2023
What pivot bars would I use with your recommended pivot shoes?
Profile picture of Tom
Tom from SWISCO responded:
February 9, 2023

There are about a million different compatible options for this shoe. I'd be happy to narrow that down for you, but I need a clear picture of the pivot bar you have now. Would that be possible?
