Tilt window latch 3.375 inches long

Quick Learner from NYC
we have Champion window, maybe 10 years old and need inside latch for tilt windows very much like your part 26-345 exceptours measures 1.375 inches by 3.375 inches Black

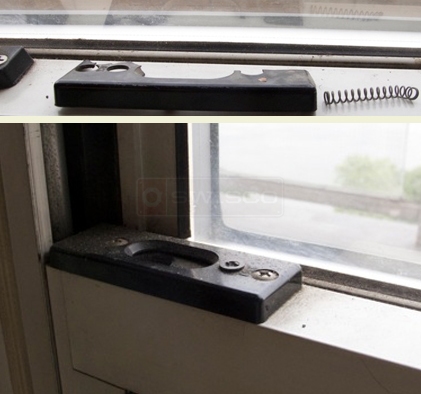

A user submited photo of window tilt latches
8 Replies
Paul
Paul from SWISCO
SWISCO
Expert
Thanks for posting! I don't think this is like the 26-345; that's an internal latch, and it looks like you have a surface mounted tilt latch. Please look through that section and see if you can find anything that matches your own hardware.

If you aren't sure, please give me the distance between the installation holes, center-to-center, as well as the width of the latch. This will get us started on finding a new replacement for you!
Quick Learner
the distance between the installation screws center to center is 2 and 5/16
and the width of the latch is 1 and 1/8
Paul
Paul from SWISCO
SWISCO
Expert
Thanks for getting back to us. Can you confirm that the width is 1-1/8"? I can't find any latches that have a 2-5/16" screw hole distance with a 1-1/8" width.

However, please look at our 26-188 Black Metal neutral Tilt latch. It seems very similar to your own hardware. Do you think that this might work? Please let me know!
Paul
Paul from SWISCO
SWISCO
Expert
Ah, I see. That certainly seems a lot closer to our 26-188 than it did before! Do you think it will work?
Quick Learner
I remeasured and it is 1 and 3/16 It has the number P52 on the piece that slides back and forth
Quick Learner from NYC
I have the same issue- did this work!? Same window, same part, same problem!
Home Owner from Brooklyn
I would like to know if this latch worked? I have a broken Champion internal latch also and I want to know of this replacement piece is a perfect match?
