Twisted pin channel balance

Question

I need the corner pivot pins/bars and sliders with the springs inside.
I think the bottom is broken.

The bottom of the channel bar with the hook is missing the attachment that the cam pin goes into. If you want to call me.

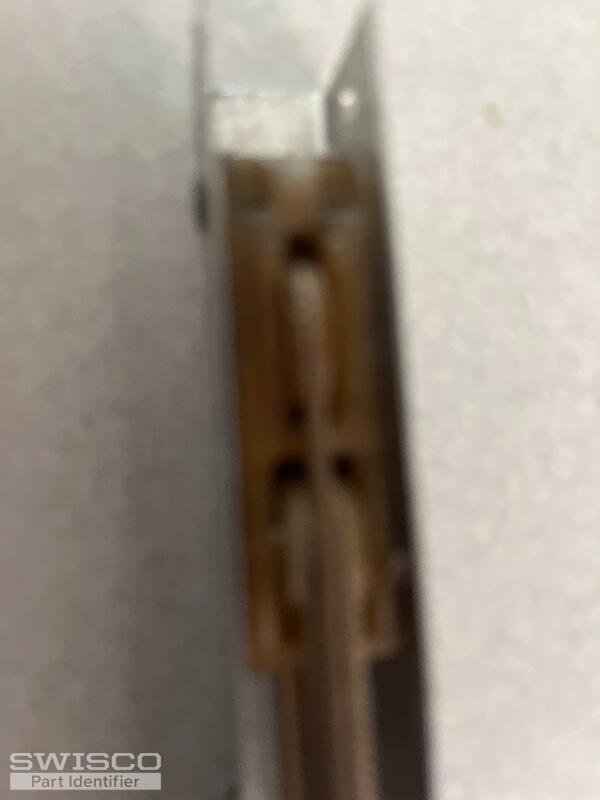

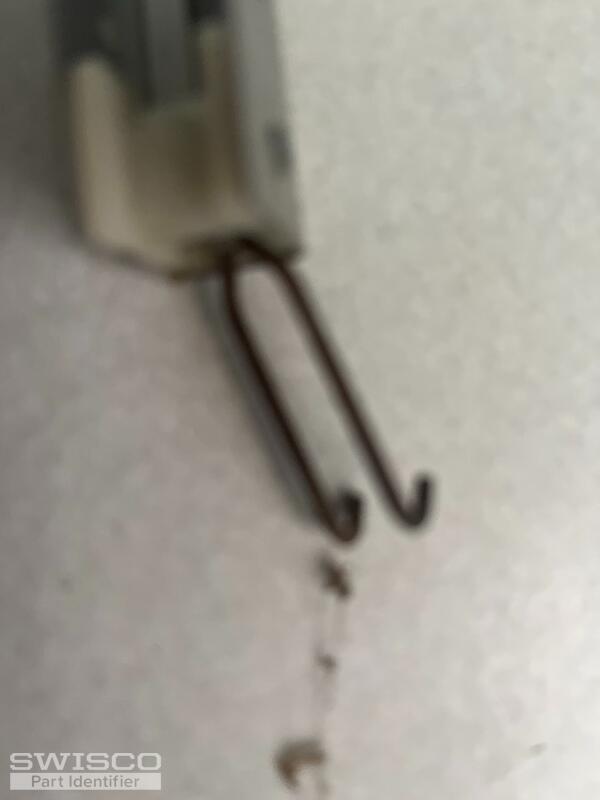

What about the 20 channel bars? Here is a picture. I need 6 of the channel bars and 8 cam pins. 20 inches/1940

Can you help me?

Casey · Accepted Answer

Hello,

Unfortunately, our part experts are only able to communicate with customers through this discussion board to ensure that each question is answered in the order that it is received. We can help but it looks like you will need the S770-20 channel balance with the 15-036 hook attached through a custom order.

If your balances are stamped with 1940, that indicates that you may need a 20D strength option for your replacements, which will support a window sash between 18-22 lbs. I would recommend confirming that your sash falls within the supported weight range since these balances will not be able to be returned for a refund. From there, we'll be happy to send over an order link and price quote for 6 balances.

We've also related the cam pivots that we carry on this page that resemble yours. Take a look and review the dimensions shown on our product pages to determine the correct match. These pivots are often used with the 15-105 pivot shoe, but you would need to compare the specifications below to confirm that they match your part. Thank you!

Open position 15-105

View of 15-105 in the Closed Position
