Upper roller wheel needed

Home Owner from Parkland, FL
Sep 3, 2013 11:27 pm
This is for the top of a mrrored bifold closet door. The wheel part slips into the top slide bracket between two metal edges to keep it in place. The door is then set into the wheel via the pin. There is a Youtube video which shows exactly the nylon wheel part and how it is assembled. Do a google search for Consolidated Mirror Door and it is the sixth one down. Just need the nylon roller part. The wheel is 7/8" diameter, the smaller round area is 7/16 diameter, the pin hole is 5/16" diameter and the overall width of the wheel is 3/16". Thanks for your help!

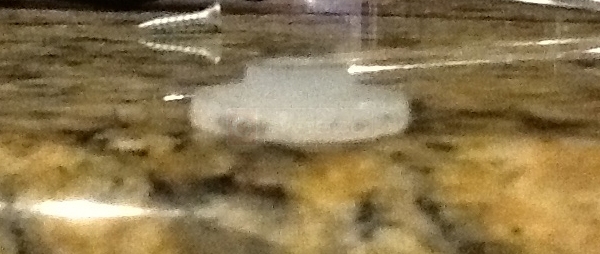

User submitted a photo of a mirror door roller.
7 Replies
Tom
Tom from SWISCO
Sep 5, 2013 3:39 pm
SWISCO
EXPERT
Thank you for posting. Could I see a more pictures of this wheel from a few different angles? This picture is blurry and we're having trouble identifying it. Let me know!
Quick Learner from Florida
Sep 5, 2013 5:36 pm
Here are some additional photos. It may be from a Stanley bi-fold mirrored door from about 2003.

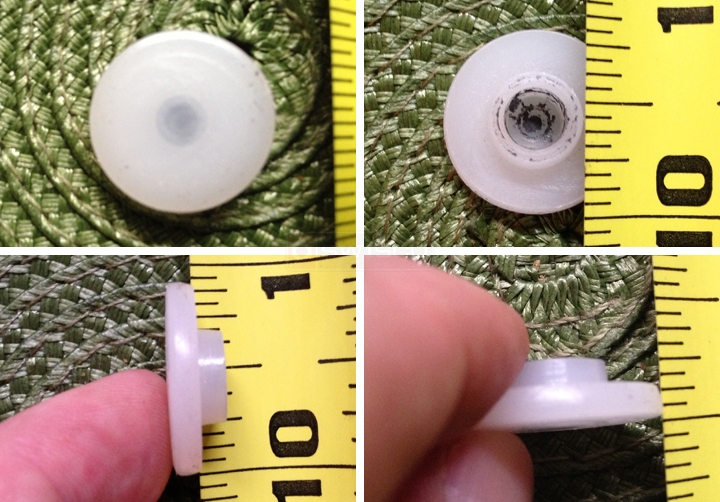

User submitted photos of a mirror door roller.
Casey
Casey from SWISCO
Sep 6, 2013 9:52 am
SWISCO
EXPERT
Great images! This looks like SWISCO product code 21-174, Roll Guide, fits into the track. Please take a look and let us know what you think.
Quick Learner from Florida
Sep 17, 2013 5:56 pm
Just got them and exactly what I needed!
Tom
Tom from SWISCO
Sep 18, 2013 8:19 am
SWISCO
EXPERT
Oh, that's awesome news. Hopefully this will help other customers in the future, as well. Let me know if you have any other questions, I'd be happy to help.
Quick Learner from Loxahatchee Fl
Dec 5, 2023 9:15 am
I have same roll guides on my bifold mirror doors. However, the spring that pushes guide into track has broken, so I need to replace the entire roll guide assembly. I already have items 21-174, purchased from Swisco previously.
Item 23-120 (top roller guide) appears to be correct replacement, however I'll need to remove top 7/8" roller wheel to replace it with the 21-174 roll guide.

For item 23-120, is the roller wheel removable from the metal shaft, so I can replace it with the 21-174?
Tom
Tom from SWISCO
Dec 6, 2023 2:29 pm
SWISCO
EXPERT

Hello! Thanks for reaching out. The roller wheel on the 23-120 is not meant to be removed, no. If you just needed a pin in this style that can also interact with the 21-174 roll guide, I would suggest the 23-115. That is its precise function. Look it over and let me know what you think!

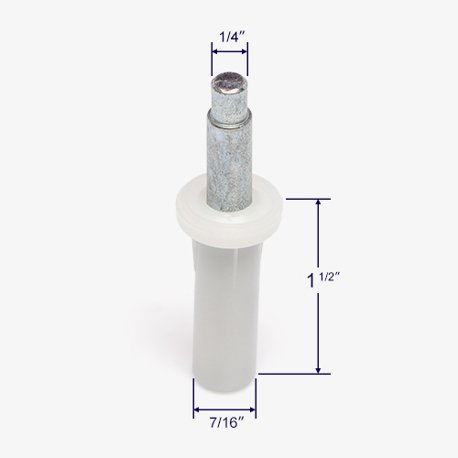

Measurements of 23-115
Measurements of 23-115
